1. Introduction
Polymer materials have been widely used in daily life, industry, agriculture, military, biomaterials, and other fields due to their advantages of low density, high specific strength, easy processing, corrosion resistance, and so on. However, most commercialized polymer materials come from fossil resources and petrochemicals, and a large number of undegradable products have been abandoned after a short period of service. It will cause serious resource and environmental problems if they have not been disposed of properly. In this context, developing biobased polymer materials become an emerging and sustainable pathway because it can reduce the consumption of fossil resources and decrease atmospheric CO
2 emissions [
1].
Generally, there are two main routes to obtaining biobased polymers. One is utilizing natural polymers or their modified products directly, such as abundant cellulose, starch, lignin, and their derivatives, and several products have been industrialized. Another route is polymerizing biobased monomers or precursors, including aliphatic diols, dicarboxylic acids, hydroxy acids, diamines, and aromatic molecules that are produced via biotechnology from diverse biomass including agricultural crops, wood and forestry residues or (micro)algae [
2,
3,
4]. The typical industrialized biobased polymers via this approach include polylactic acid (PLA), poly (butylene adipate-co-terephthalate) (PBAT), polybutylene succinate (PBS), and green polyolefins [
5,
6].
To date, researchers have not been satisfied with developing general polymer materials from biomass materials but turned their attention to highly valuable functional polymers and intelligent polymer materials, such as vitrimers [
1,
7,
8,
9,
10,
11,
12], self-healing materials [
13,
14,
15,
16,
17,
18,
19,
20,
21], and shape memory polymers (SMPs) [
22,
23,
24,
25,
26,
27,
28,
29,
30,
31]. Amongst, SMPs have the unique capacity to recover their original shapes from a temporarily deformed shape in response to external stimulus, which makes them attract tremendous attention from both academia and industry. To date, the molecular mechanisms of shape memory effects (SMEs) [
32,
33,
34,
35,
36] have been profoundly disclosed, and various stimulus-response shape-shifting modes have been well-established, allowing SMPs widely applied in actuators, sensors, smart textiles [
36,
37], biomaterials [
38,
39] and space deploying devices [
40]. Scientists can easily create SMPs more sustainably by using various biobased monomers or precursors after a full understanding of the molecular mechanism of SMEs. As we know, a lot of polymers with proper thermal transitions (e.g., crystalline-melting transition or glass transition), such as aliphatic polyesters, polyurethanes, and epoxy, can be utilized as building blocks for SMPs. Delightfully, the biomass synthetic pathway of this kind of polymers has been well-established, bringing great challenges as well as opportunities for the development of SMPs. Although many excellent reviews that focused on SMPs and biobased polymer material have been published by various groups active in these two areas respectively, it remains very necessary to unveil the latest notable progress aroused from the organic combination of these two areas. The main purpose of the current review is to clarify the bridge between the SMP building blocks and the biomass resources and highlight the creating approaches, functionalizing strategies, and the application of this new class of SMPs from biobased chemicals.
2. Principle of Design SMPs
Designing SMPs from biomass resources can be regarded as a sustainable and promising direction, but the rational and wisely fabricating strategy is also very crucial. For this purpose, a deep understanding of the mechanism of SMEs is imperative. As we know, the phenomenon of shape memory was first observed in the metal alloy in 1951, and the first SMP product, heat-shrinkable cross-linked polyethylene (PE), was commercialized in the 1960s [
41]. After decades of intensive investigation, the basic molecular working mechanisms of shape memory effects have been deeply revealed, and SMPs with diverse structures have been developed under this guidance.
2.1. Molecular Structure and Mechanism for SMPs
Essentially, as schematically illustrated in a, SMPs can be divided into two functional units, netpoints and molecular switches. The netpoints are responsible for defining and memorizing the permanent shape of a SMP, and molecular switches answer for shape fixing and recovering. Generally, netpoints can be formed by physical or chemical cross-linking; the former involves physical interactions, stable chain entanglements, crystalline and glassy polymer segments [
42], while the latter includes covalent chemical bonds, interpenetrating networks, or recently highly concerned dynamic networks [
43,
44,
45].
The molecular switch is the key point to determining what kind of stimuli a SMP responds to. The most popular category involves polymer segments with thermal phase transition, such as glass transition for amorphous polymers [
46,
47,
48], crystallization-melting transition for semicrystalline polymers [
49] and liquid crystal-isotropic phase transition for liquid crystal polymers [
50], etc. Naturally, the obtained SMPs are thermal-responsive. With the development of polymer science, some dynamic chemical and physical structures gradually act as molecular switches [
51], such as hydrogen bonding interactions [
52], reversible coordination interactions [
53] and host-guest recognition interactions [
54]. Taking advantage of these molecular switches, SMEs could be triggered by light, water, pH stimulus, and so on. Due to the nonthermal nature of the stimulus, this kind of SMPs is also called athermal SMPs. Besides classifying the SMPs by different stimuli, they also can be classified by shape-shifting modes as one-way SMPs (1W-SMPs) and two-way SMPs (2W-SMPs), the shape change of 1W-SMPs is irreversible and can only follow the path from temporary shape to permanent shape, meanwhile, 2W-SMPs can reversibly transform between two shapes. According to the number of shapes that can be displayed during the shape memory cycle, SMPs also include dual-, triple- and multi-SMPs.
2.2. Thermal-responsive SMPs
Thermal-responsive dual SMPs are conventional, and widely investigated in recent decades, many polymers exhibit a thermally induced SMEs based on phase transition. The phase transition can be vitrification/glass transition, crystallization/melting transition and liquid crystal phase-isotropic transition with a transition temperature (
Ttrans) of glass transition temperature (
Tg), melting temperature (
Tm) and liquid-crystalline clearing temperature (
Tcl), respectively. Commonly, a full SMEs cycle of a 1W-SMP includes programming and recovery steps (b). Taking a semicrystalline chemically-crosslinked network as an example, the detailed procedure can be described as follows: when SMPs are heated above the melting transition temperature (
Ttrans), the polymer segments exhibit rubbery elasticity and gain better mobility; the SMPs could be deformed under the action of external forces, after cooling to a fixing temperature (
T <
Ttrans,
T should be below the crystallization temperature
Tc) under the external force, the polymer chains are frozen and the SMPs are in temporary shape after unloading the external force. When the SMPs are reheated above Ttrans without external stress, the chain motility is reactivated and the SMPs regain their permanent shape owing to the action of entropic elasticity [
36].
After a full understanding of the working mechanism of thermal-induced SMEs, one can easily design a SMP from numerous polymer candidates. Due to most polymers equipping either a
Tg or a
Tm, the
Tg-based and Tm-based SMPs become the most common types. To meet the requirements in different application fields, the comprehensive performance of the materials such as mechanical properties also needs to be considered beside the SMEs with an adaptable Ttrans. For
Tm-based SMPs, the semi-crystalline polymer segments, such as polyolefins and their derivatives PE [
41], ethylene-vinyl acetate copolymer (EVA) [
55,
56,
57], aliphatic polyester poly(ε-caprolactone) (PCL) [
58], poly(p-dioxanone) [
59], or aliphatic polyethers poly(ethylene glycol) (PEG) [
42,
60], poly(tetramethylene glycol) (PTMEG) [
61], can be employed as molecular switches. Moreover, it may realize triple- or multi-SMEs by introducing two or more segments with independent Tm into one SMPs [
62,
63,
64].
For
Tg-based SMPs, beyond traditional dual-shape systems, several new strategies have been developed for more functionalities. For example, Poulin and coworkers reported a shape and temperature memory composite nanotube fiber based on polyvinyl alcohol (PVA) with broad glass transition that induced by a large fraction of carbon nanotubes [
62]. Xie first realized dual-, triple-, and at least quadruple-SMEs in the perfluorosulphonic acid ionomer (PFSA), which has only one broad glass transition [
65]. Inspired by this strategy, different polymer systems with a broad glass transition were developed to achieve multi-SMEs, including poly(methyl methacrylate)/PEG semi-interpenetrating polymer networks containing broadened glass transition [
66], linear gradient poly(styrene-methyl acrylate) copolymers with controllable broadening glass transition [
67]. Liquid crystalline elastomers (LCEs) are typical Tcl-based systems, and various mesogens, including commercially available liquid crystal monomers RM82, RM257, NBch15, etc., have been employed to develop the LCEs.
. (

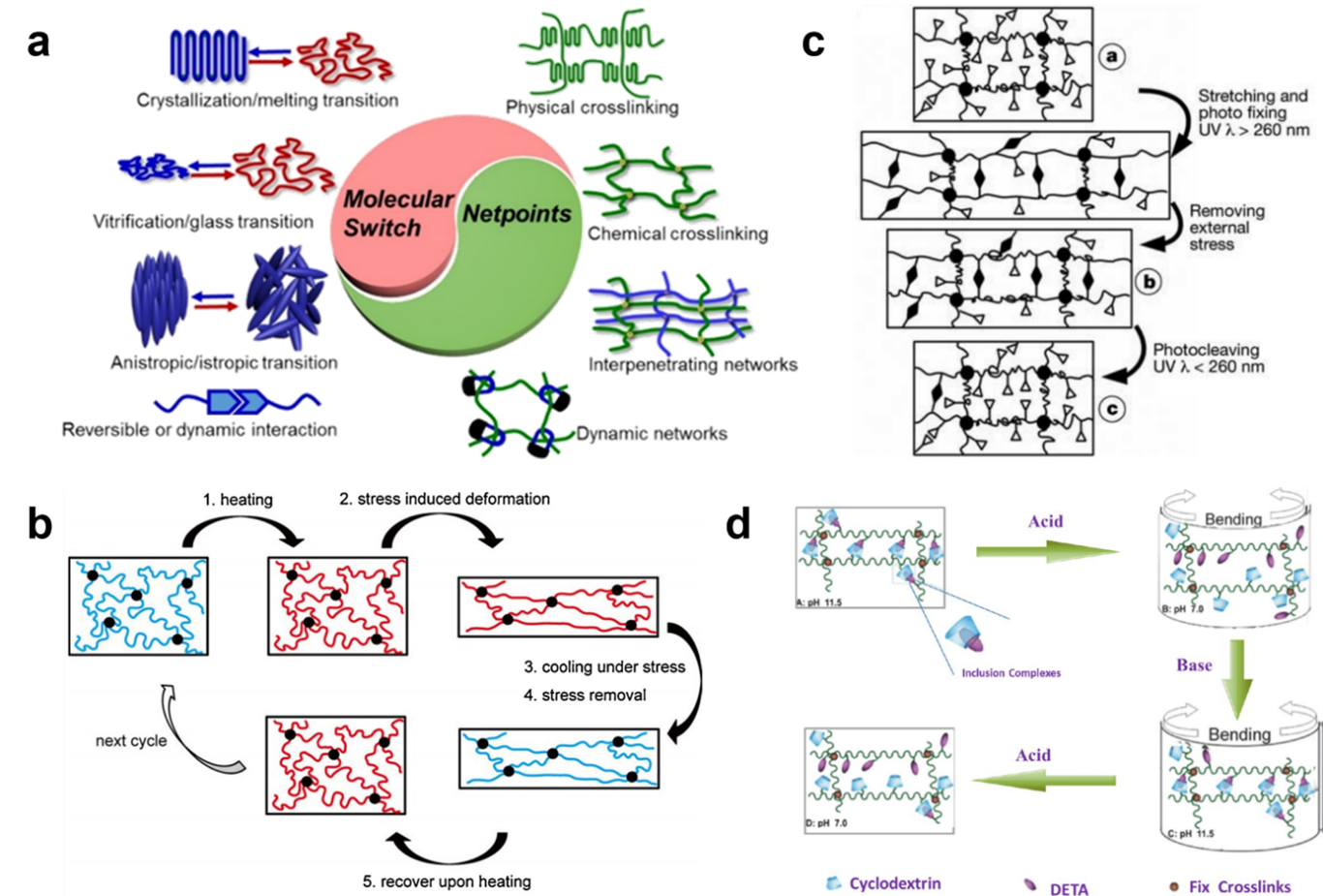

a) The schematic molecular mechanism of the SMPs in a full review [
68] (Copyright 2019 Elsevier B.V.), (
b) thermal-induced SMEs [
36] (Copyright 2015 Elsevier Ltd), (
c) photo-induced SMEs [
69] (Copyright 2005 Nature Publishing Group), and (
d) chemical-induced SMEs [
51] (Copyright 2017 American Chemical Society).
Except for the most common heat stimuli, indirect heating methods were also developed for the convenience of remote control during shape recovery. By incorporating functional fillers into the SMP matrix, different forms of energy such as electricity, magnetism and light can be converted into thermal energy and induce heat within materials to trigger the shape recovery process. Electrical-responsive SMPs could be obtained by adding conductive fillers such as carbon nanotubes, carbon black, carbon fibers and metal powders into SMPs [
70,
71]. When the conductive percolation network is constructed in a thermal-responsive SMP matrix, the shape recovery can be triggered by Joules heating. Similarly in magnetic-responsive SMPs, the composites containing Fe3O4 magnetic nanoparticles have been reported [
72,
73,
74]. Via photo-thermal effect, light-responsive SMPs also can be achieved by irradiating light of certain wavelengths onto SMP composites containing carbon powders or metal nanofillers via photo-thermal effect [
75,
76,
77].
2.3. Athermal SMPs Based on Reversible Switches
Besides the above-mentioned different kinds of thermal-responsive SMPs concerning about phase-transition, various athermal SMPs were also devised so that SMEs can be triggered under nonthermal conditions, expanding the scope of the shape programming approaches. The key factor in designing nonthermal SMPs is incorporating reversible switches into polymer chains, and thus, some light-responsive or chemical-responsive groups have attracted the great attention of the researchers.
As an external stimulus, light has the unique feature that it can be localized in time and space, which brings great advantage to precise control of a SMP in remote mode. The athermal light-responsive SMP was first developed by Lendlein and coworkers via incorporating cinnamic acid groups into a polymer matrix (c), the light-induced SMEs can be triggered by photo-reversible [2+2] cycloaddition reaction under UV light with different wavelengths [
69]. Similar chemical groups, including anthracenes and coumarin, also can occur reversible photo-cycloaddition reactions, which makes more possibility for SMPs design. Our group [
60,
61,
63,
78] developed a series of SMPs by introducing anthracene groups into PLA-PEG copolymers, realizing light-induced SMEs, triple-SMEs, 2W-SMEs, and photo-patterning. In addition to the photo-cycloaddition reaction, azo-benzene molecules with photo-isomerization properties were also employed as molecular switches [
79,
80].
Apart from UV light stimuli, chemical stimuli can also trigger the shape recovery process under athermal conditions. Taking advantage of supramolecular interactions as molecular switches to construct novel SMPs, various athermal chemical-responsive SMPs have been designed, which greatly broadened the triggering methods and application of SMPs [
51,
81,
82,
83,
84,
85] (d). Supramolecular chemistry including hydrogen bonding, host−guest interactions, metal coordination, ionic interactions, and hydrophobic interactions have been employed for the construction of SMPs. Since their structures can be reversibly modulated by chemical environment, they are ideal molecular switches working under nonthermal conditions [
83,
84,
86]. For example, in early 2005, Huang et al. [
85] discovered the unique water-induced shape memory effects in a shape memory polyurethane (SMPU) based on the gradient variation of glass transition temperature caused by the weakening of hydrogen bonding after immersing in room temperature water. Zhang et al. [
87] prepared pH-sensitive SMPs by cross-linking β-cyclodextrin modified alginate and diethylenetriamine-modified alginate, which was triggered by the formation and dissociation of β-cyclodextrin and diethylenetriamine inclusion complexes.
3. Biobased Monomers and Their Polymers
Biobased monomers have a wide range of resources, which can convert by cellulose, lignin, fatty acids, vegetable oil, terpenoids, starch, sugars, proteins and other biosources. According to the chemical composition and structure of biobased monomers, they can be roughly divided into two categories: aliphatic monomers and aromatic monomers. Aliphatic monomers include various dicarboxylic acids, diols, polyols, amide and their ramification, for example, succinic acid, fumaric acid, itaconic acid, citric acid, hydroxyalkanoic acid, lactic acid, levulinic acid, adipic acid, 1,3-propanediol, 1,4-butanediol, 1,4:3,6-dianhydrohexitols, ethylene glycol, 1,8-octanediol, glycerol, D-sorbitol, 1,4-butanediamine, 1,5-pentanediamine, 1,6-hexanediamine, 1,8-octanediamine, 1,10-decanediamine, bioethylene, biopropylene and so on. Aromatic monomers include lactones, furan, vanillin and their ramification, for example, 3-hydroxybutyrolactone, propiolactone, angelilactone, γ-valerolactone, ε-caprolactone, 5-(hydroxymethyl)furfural, 2,5-furandicarboxylic acid, vanillic acid, divanillyl diol, terephthalic acid, vanillin and so on.
Succinic acid (SA) is widely present in nature, it has been listed as one of the 12 high-potential bio-based platform chemicals by the US Department of Energy (DOE) and become a potential substitute for current petrochemical production [
88,
89]. As a commodity chemical and precursor in the chemical industry, it is widely used in food, medicine, green solvents, biodegradable polymers and plasticizers [
90,
91,
92,
93]. Moreover, SA can also be chemically converted into a variety of important industrial chemicals such as 1,4-butanediol, butadiene, tetrahydrofuran and other monomers of biodegradable polymers. Itaconic acid (IA), another important high-potential bio-based platform chemical by US DOE [
89], is also an important organic acid with a covalent double bond that is widely applied in plastics, medicine, textile, and paint as an alternative to the precursor of polymers and chemical intermediates based on petrochemical production [
94,
95,
96]. Hydroxyalkanoic acid (HA) and its derivatives, as a special category in aliphatic acid, have been used to create a series of aliphatic polyesters [
97,
98,
99,
100], such as poly(3-hydroxybutyric acid), poly(3-hydroxypropionate), poly(4-hydroxybutyrate), poly(3-hydroxy-5-phenylvaleric acid) [
101,
102,
103]. Lactic acid (2-hydroxypropionic acid, LA) is an important organic acid with both D-LA and L-LA enantiomeric forms existing as a result of the chiral carbon in molecular structure. Due to the wide range of applications, the demand for LA has increased significantly. Food waste, agricultural waste and lignocellulose have been explored to gain more economical and renewable fermentation substrates [
104,
105]. As a fundamental monomer of various polymers, LA has been widely applied in textiles and cosmetics [
106,
107,
108].
Aliphatic diols are fundamental chemicals with two hydroxyl groups in the molecular structure that have a range of applications in basal chemicals, fuels, medicine, and polymer synthesis [
109,
110,
111,
112]. In particular, those platform green chemicals that can be biotechnologically produced by direct microbial bioconversion of biomass, including 1,2-propanediol (1,2-PDO), 1,3-propanediol (1,3-PDO), 1,4-butanediol (1,4-BDO) and 2,3-butanediol (2,3-BDO). Amongst, 1,3-PDO is a vital monomer of polytrimethylene terephthalate (PTT) with terephthalic acid (TPA) being the other. 1,4-BDO can convert to produce various products including the important biodegradable product polybutylene succinate and polyesters [
113,
114].
The platform chemicals furfural (FF) and 5-hydroxymethylfurfural (HMF) initiate the origin point for the synthesis of furan-based monomers as a result of their production from C5 and C6 saccharide-based renewable biomass resources [
115,
116,
117,
118] (abundant biomass carbon source such as rice husks, sugarcane bagasse, wheat bran, corncobs, oat and sawdust [
119]). Furfuryl alcohol not only is the most important monomer in furan-based polymer synthesis but also set up the chemical platform of furfural-based subproduct development. Similarly, HMF as a vital chemical is mainly produced from fructose in biomass conversion, which is listed in the “Top 10 +4” as additions for an updated evaluation of DEO top 12 list of biobased chemicals [
89]. Many intermediate chemicals and monomers can be converted by catalysis and oxidation of HMF, including 2,5-Furandicarboxylic acid, 5-Hydroxymethylfuroic acid, 2,5-Bishydroxymethylfuran, 2,5-Dimethylfuran, levulinic acid, adipic acid, 1,6-Hexanediol, caprolactone and caprolactam [
120,
121]. 2,5-Furandicarboxylic acid (FDCA) is a most attractive furan-based diacid as a platform chemical [
90,
122,
123], which is normally synthesized through the oxidation of HMF [
124].
As one of the most abundant biomass resources, lignin is the main feedstock of renewable aromatic compounds [
125,
126,
127,
128]. Vanillin (4-hydroxy-3-methoxybenzaldehyde), as a representative oxidative product of lignin, is another important renewable aromatic compound containing functional groups such as aldehyde, phenol, and ether. Although vanillin cannot be directly applied to synthesize polyesters because there is no bifunctional esterification group in its molecule structure, the phenolic hydroxyl and aldehyde groups of vanillin can be easily modified into diols, diacids/diesters, or hydroxy acids/hydroxyesters [
129]. Due to its great mouldability of the active functional group, vanillin has become an important intermediate monomer of various polymers, such as acrylic polymers, polyesters, epoxy polymers, polyacetals, phenolic resins, polyaldimines, polyalkenes and polybenzoxazines, as well as other polymers from the reductive coupling of aldehyde [
130,
131,
132,
133,
134].
Vegetable oils are another important family of biomass resources, mainly composed of triglycerides with fatty acid chains [
135,
136,
137,
138]. Due to the C-C double bonds of unsaturated fatty acids, vegetable oils and their derivative are widely applied in the preparation of biobased promising polymers such as polyurethane, polyamide, vitrimer, epoxy, polyester, polyether and polyolefins [
139,
140,
141,
142,
143]. Castor oil, soybean oil, linseed oil, oleic acids, etc. are important vegetable oil-based monomers to produce polymers using various methods including condensation, free radical copolymerization, cationic and olefin metathesis [
142,
144,
145,
146]. Moreover, researchers convert vegetable oils onto polyols, polyacids and epoxy monomers to develop novel polymers with different structures and properties through functional strategies [
147,
148,
149]. These biobased monomers have also been summarized in .

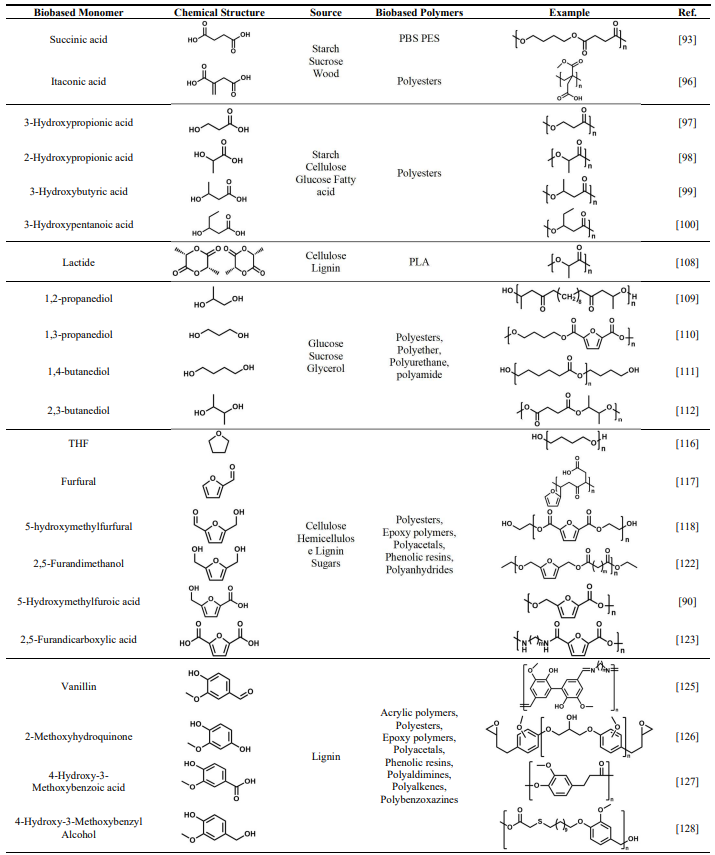

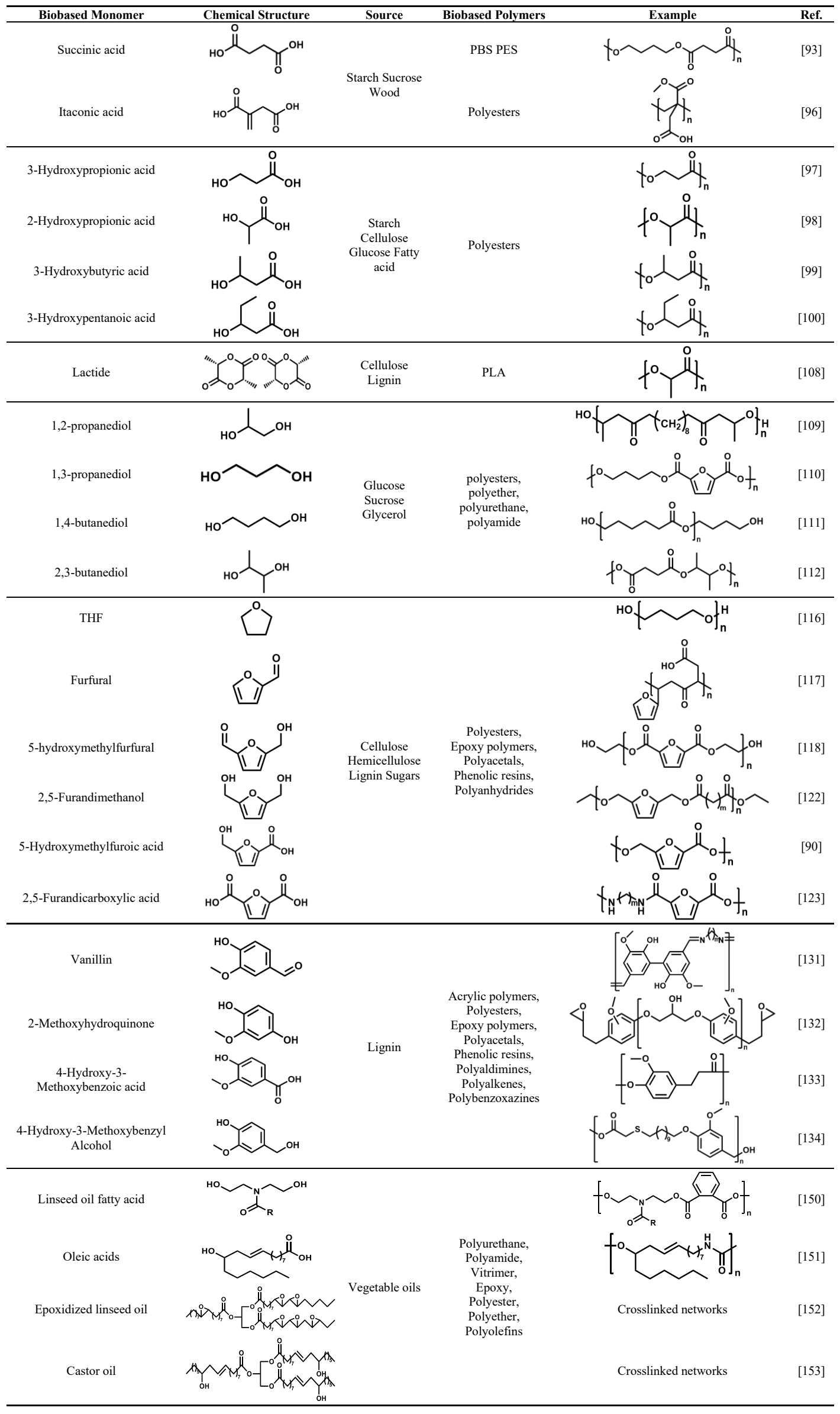

Table 1. Various biobased monomers for biobased polymers reported in references.
4. Creating SMPs from Biobased Resources
4.1. Biobased Shape Memory Polyesters and Polyurethanes
As the most common types in thermally-induced SMPs, shape memory polyesters and polyurethanes are easily tailored and fabricated from numerous kinds of diacid, diol, and diisocyanate. Bio-based platform chemicals already contain abundant dicarboxylic acids, diols, polyols, and so on, which provide a great convenience for developing biobased shape memory polyester and polyurethanes.
It is well known that PLA is one of the commercialized biobased and biodegradable aliphatic polyesters, and it is also a good candidate for designing SMPs intended for general use or biomaterials [
143,
154,
155,
156,
157]. In 2005, Lendlein et al. [
154] developed a completely amorphous and biodegradable shape memory copolyester-urethane network by employing an oligo [(rac-lactide)-co-glycolide] as switching segments (a), which could show a more homogenous degradation than the semicrystalline polymers. Chen et al. [
155] reported a full biobased shape memory PLA/natural rubber composite with a co-continuous structure via a dynamical vulcanizing strategy. Biodegradable PBS is another biobased aliphatic polyester that has been utilized to design SMPs and also has been intensively investigated. In our previous work [
42], we designed a series of shape memory copolymers combined with a PBS hard segment and PEG soft segment that could be triggered by body temperature, which showed great potential in the application of biomaterials.
Besides the industrialized biobased aliphatic polyesters, the researchers begin to focus on the other available biobased monomers. Guo and Zhang [
158,
159] reported a new kind of biobased poly(propylene sebacate) from 1,3-propanediol, sebacic acid, and itaconic acid as the main raw materials, whose transition temperature and shape recovery speed could be tuned by changing the composition of the products (b). The authors furtherly introduced the Boehmite (BM) nanoplatelets into biobased poly(propylene sebacate) (PPSe) to form the shape memory composites with significantly improved mechanical properties (c). Recently, furan-based monomers have attracted the interest of researchers for the potential application in biobased SMPs. Zhou et al. [
30] prepared a series of shape memory copolymers poly(ethylene 2,5-furandicarboxylate)-poly(ethylene glycol) (PEFEGs) from biobased ethylene glycol (EG), 2,5-furandicarboxylic acid (FDCA), and PEG (d). Besides a good SMEs, the presence of the rigid ring structure also enable the material to the excellent thermal stability.

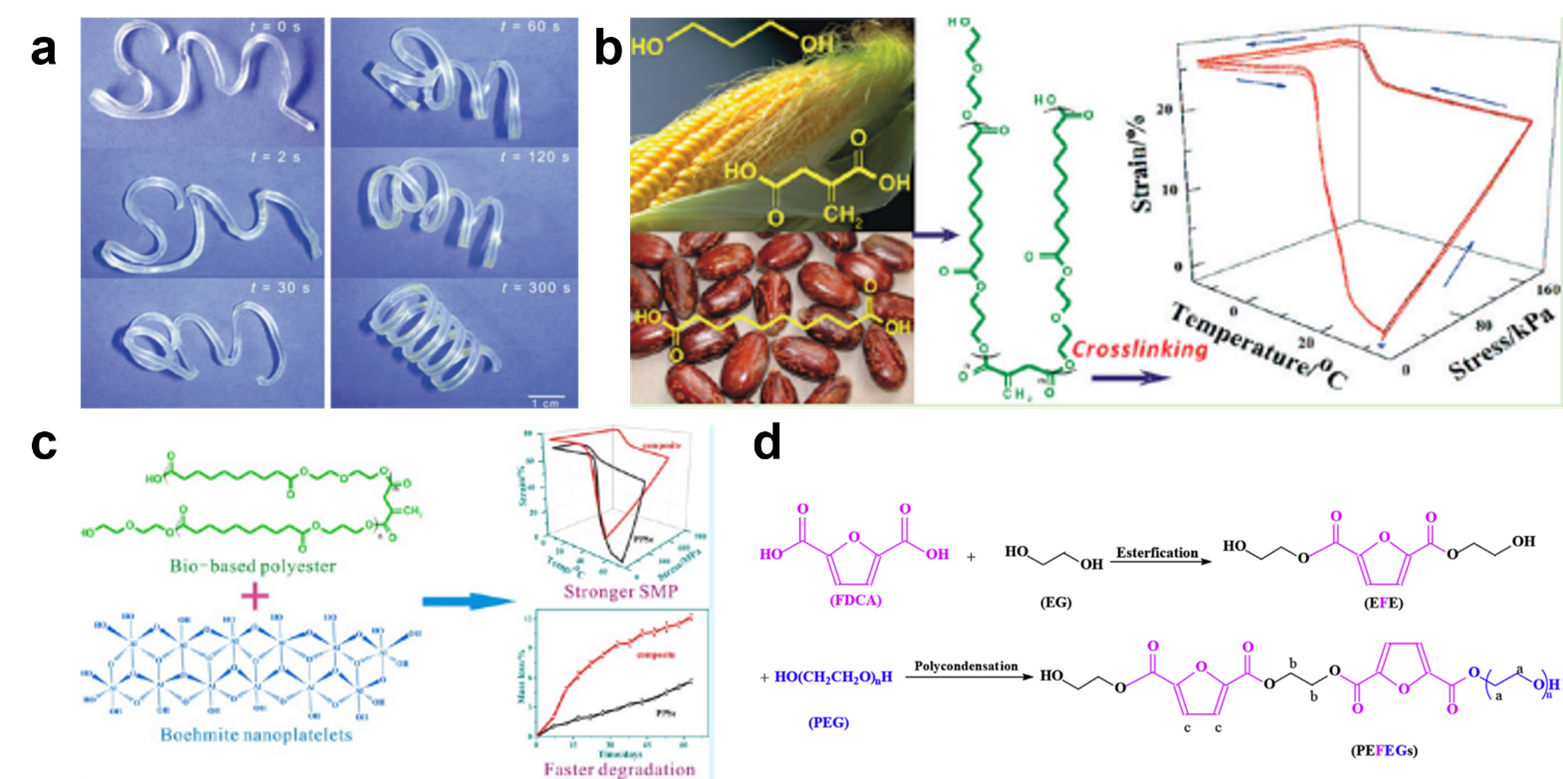

. Biobased shape memory polyesters and polyurethanes. (
a) Biobased SMP based on PLLA [
154] (Copyright 2005, Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim). (
b) Biobased SMP based on poly(propylene sebacate) [
158] (Copyright 2011 American Chemical Society) and (
c) its Boehmite-contained nanocomposites [
159] (Copyright 2012 American Chemical Society). (
d) Biobased SMP based on poly(ethylene 2,5-furandicarboxylate) [
30] (Copyright 2018 Elsevier Ltd).
Epoxy is a typical thermosetting resin owning excellent dimensional stability, chemical resistance, and superior mechanical properties, these features enable the shape memory epoxy to be applied in more harsh environments. Developing biobased shape memory epoxy from renewable resources has been considered a promising way [
136]. The general fabricating strategy is to epoxidize the biomass chemicals with proper functional groups at first, and then cure the epoxy precursors to obtain the shape memory epoxy resins. Epoxidized soybean oil (ESO) is an important raw material to develop biobased epoxy [
160,
161]. Tsujimoto et al. [
27] reported a biobased shape memory polyESO/PLLA by incorporating PLLA into acid-catalyzed cured ESO, which exhibited not only desirable mechanical performance but also excellent SMEs (a). Yuan et al. [
24] prepared shape memory networks from gallic acid and epoxidized olive oiled via a thiol-epoxy curing approach. Isosorbide is also a good candidate for biobased epoxy. It has been modified to biobased epoxy and diamine monomer by Zhu et al. [
162] (b), and the cured resin possessed a good shape memory effect as well as satisfied thermal stability owing to the presence of stiff ring structures. Eugenol is another important bioresource that has been explored to design biobased shape memory epoxy. For example, Zhang et al. [
163] developed a multifunctional biobased epoxy by employing a eugenol-derived epoxy with succinic anhydride to realize shape memory, repairing and recyclability (c). Miao et al. [
164] fabricated dynamic cross-linked shape memory epoxy resin by decorating eugenol to trifunctional epoxy monomer and then curing with the disulfide bond-contained harder to pursue the reconfigurable feature. Tannic acid is also an attractive biomass derivative with a unique topological structure and abundant reactive groups, and not surprisingly, it has been utilized to develop shape memory epoxy thermosets, which can also exhibit high mechanical strength, damping, and recyclability (d) [
165].

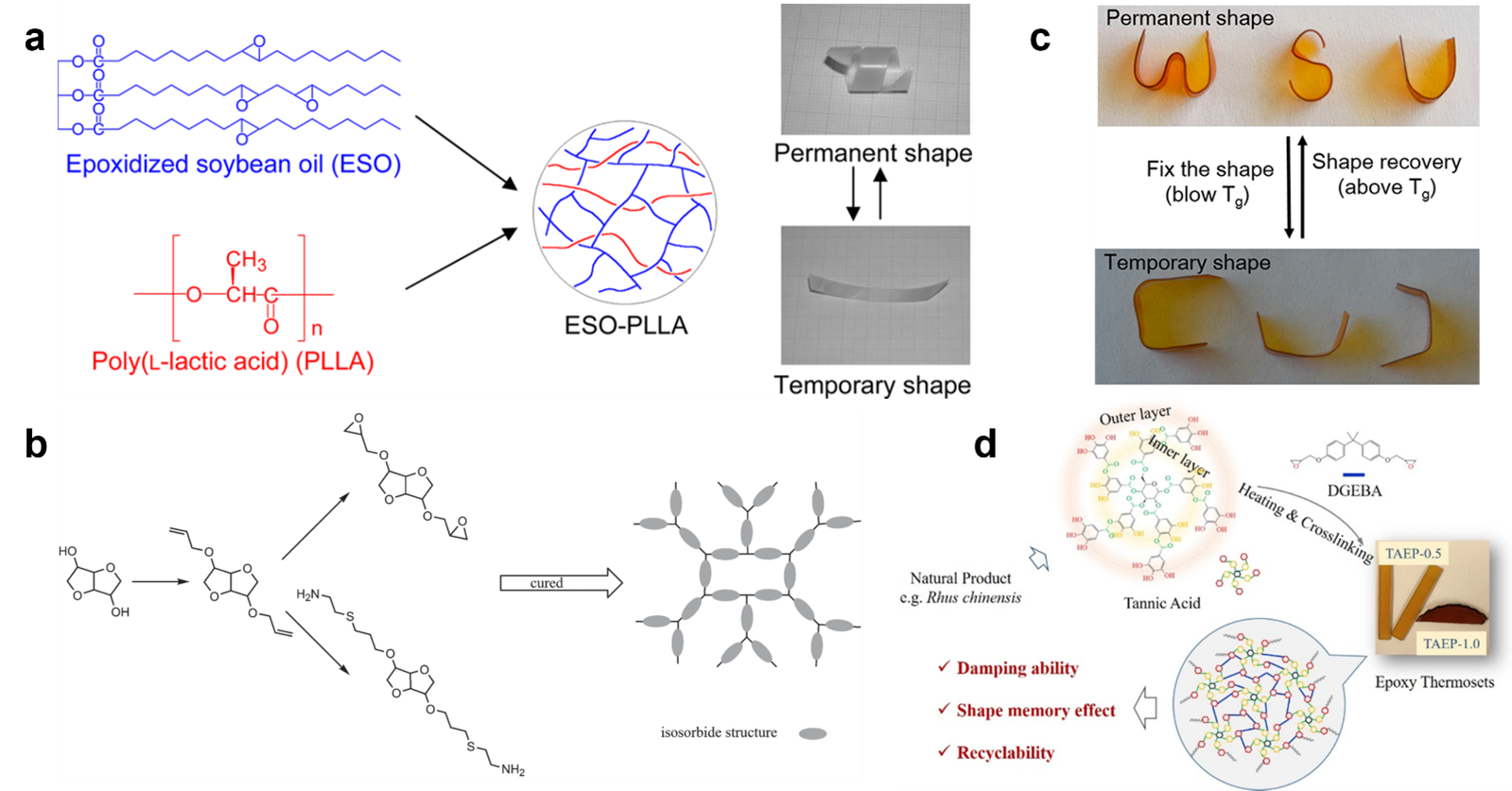

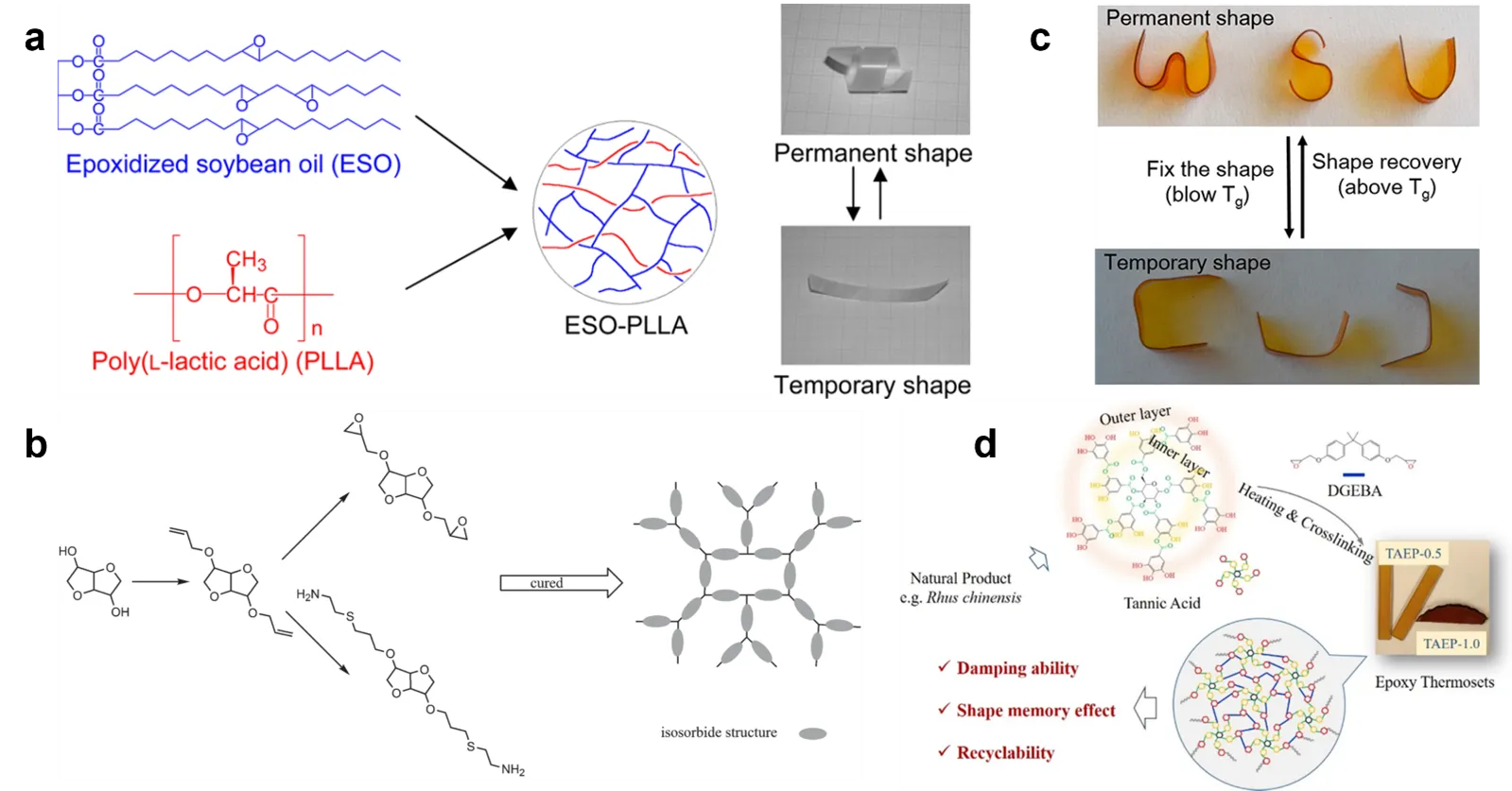

. Biobased shape memory epoxy. (
a) Shape memory epoxy based on polyESO/PLLA [
27] (Copyright 2014 American Chemical Society). (
b) Shape memory epoxy derived from isosorbide [
162] (Copyright 2016, Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim). (
c) Shape memory epoxy derived from eugenol [
163] (Copyright 2017 American Chemical Society). (
d) Shape memory epoxy derived from tannic acid [
165] (Copyright 2019 American Chemical Society).
Recently, with the increasing demand of sustainable polymer materials, self-healing materials have become the fast-growing category in smart materials. It also brings great opportunity and challenge for researchers to design biobased materials by combining shape memory and self-healing performances via a rational fabricating strategy from biobased resources. From the view of the working mechanism, the self-healing of polymers can be classified into two families: extrinsic and intrinsic. Amongst, intrinsic self-healing has been considered the most promising strategy. To design intrinsic self-healing polymers, two factors need to be concerned, one is the mobility of the chain that may promote its diffusion in the damaged area, and the other is the presence of the reversible bond in the matrix and its ability for reformation at suitable conditions. To date, various reversible bonds have been utilized to construct self-healing materials, including supramolecular interactions such as hydrogen bonds, π-π stacking, ionic interactions and metal-ligand interactions, as well as dynamic covalent bonds such as Diels-Adler reactions, acylhydrazone bonds, ester bonds, disulfide bonds, alkoxyamine bonds [
21,
166,
167].
Supramolecular interactions commonly have low bonding energy but excellent reversibility in mild conditions, which may endow the materials with outstanding healing efficiencies. Introducing hydrogen bonding is a facile approach to designing a self-healing system, and certainly, it also works in a biobased SMP [
19,
167,
168]. Hu et al. [
169] introduced a hydrogen-bonding hindered phenol (AO-80) into a biobased PLA thermoplastic polyurethane (PLA-TPU), which was beneficial for the improvement of energy dissipation and self-healing performance. The results showed that a comprehensive self-healing efficiency of samples reached 81.98% in 5 min at 90 °C determined from both yield strength and elongation at break (a). Besides, the hydrogen bonding interaction caused the increase of the
Tg enabling this shape-memory composite to respond to the human body temperature. Frankly, it is still a great challenge for scientists to balance self-healing efficiency and mechanical properties, and recently several synergistic strategies have been developed to serve this dilemma. For example, Zhang et al. [
170] reported an ionomeric elastomer composite with excellent recyclability, self-healing, and shape-memory properties based on lignin ramification. Importantly, this lignin/elastomer composite showed excellent mechanical properties as a result of the synergistic effect of the lignin domains and sacrificial coordination bonds (b). In addition, remote control and targeted activation are fascinating characteristics for self-healing SMPs, and they can be facilitately realized by incorporating photothermal conversion fillers into the matrix. NIR light and heat-triggered SMEs and controllable self-healing performance were demonstrated by Wang et al. [
171] in a CNTs-graft-poly(tetrahydrofurfury methacryla-co-lauryl acrylate-co-1-vinylimidazole) copolymer via the association and dissociation process of the supramolecular connections between VI and Zn
2+ under the photothermal conversion of CNTs (c), which exhibited self-healing capacities both under heating and NIR light-actuating, and the healing efficiencies of tensile strength reached 93.2% at 60 °C for 4 h and 83.6% within 60 s, respectively.

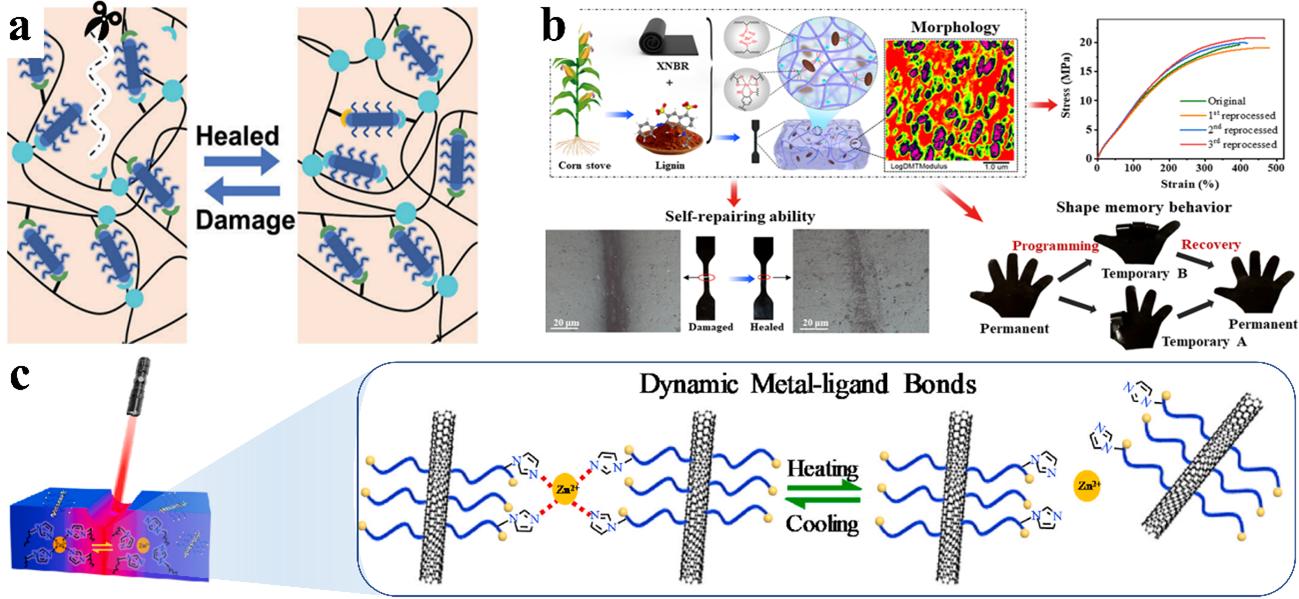

. Biobased SMPs with self-healing capacity based on dynamic noncovalent bonds. (
a) Schematic illustration of the self-healing mechanism based on hydrogen bonds [
169] (Copyright 2022 Wiley-VCH Gmbh). (
b) Ionomeric elastomer composites based on lignin ramification [
170] (Copyright 2022 American Chemical Society). (
c) Illustration of the association and disassociation process of Zn
2+/VI metal-ligand bonds in response to NIR light stimulus [
171] (Copyright 2021 Elsevier Ltd).
Recently, various dynamic covalent bonds have been explored to create versatile vitrimers [
172] or covalent adaptable networks (CANs) [
173] that may possess self-healing, reprocessiable and recyclable features. Concerning biobased SMPs, it is crucial to well-adapt the dynamic bond with functional groups in biobased monomers as well as the resultant products. The exchangeable ester bond is one of the most favorable dynamic bonds used in vitrimers or CANs, including biobased shape memory systems. Feng et al. [
174] prepared a series of biobased vitrimers with self-healable, recyclable and multiple responsive properties, via transesterification reaction between epoxy natural rubber (ENR) and dodecanedioic acids with the presence of aniline trimer (ACAT) (a), and the authors verified that ACAT played a role of catalyst for transesterification reactions to ensure the reconfiguration of network topology and also accelerate the self-healing process, resulting a self-healing efficiency of 80% in the hot stage at 200 °C for 30 min according to the recovery ratio of tensile energy. In another example, a fully biobased vitrimer deriving from epoxidized soybean oil (ESO) and fumaropimaric acid (FPA) was produced by reacting the rich epoxy groups of ESO with the anhydride and carboxyl groups [
175], the resultant transesterification-based ESO-FPA vitrimer equipped excellent self-healing and shape-memory properties (b). Recently, a dynamic boronic ester bond was chosen to construct multifunctional networks from sustainable Eucommia ulmoides gum [
176]. The obtained network is crystalline and owns a wide range of melting temperature that allows it to exhibit two-way shape-memory behavior whether under constant stress or stress-free conditions. Meanwhile, the dynamic characteristic of the boronic ester bond endows it with an excellent self-healing efficiency of tensile strength near 100% at 80 °C for 12 h, and the incorporating multiwalled carbon nanotubes enable the formed composite to respond to NIR light (c). Li et al. [
177] prepared TA-based polyurethane networks (TA-PU) with dynamic phenol-carbamate via reacting biobased monomer tannic acid (TA) with isocyanate groups. The target TA-PU not only displayed powerful shape-memory performance but also showed a good balance between robust mechanical properties and high self-healing efficiency (the tensile strength recovered 91.2% after healing at 120 °C for 2 h) (d).
Although self-healing polymers can repair mechanical damage autonomously, difficulties remain in achieving efficient and repeatable recovery of multiple forms and structures of damage. There is an auxiliary strategy to promote healing that takes advantage of the shape memory effect to make the damaged interface contact with each other () [
178,
179]. Taking advantage of the change in chain segment conformation and viscoelastic characteristics of the glass transition process in SMPs may potentially allow materials to be equipped a sufficient molecular mobility for gradual self-closure and self-healing of damages under the appropriate stimulation. This shape memory-assisted self-healing strategy was also demonstrated in biobased systems. Lu et al. [
180] prepared a biobased sustainable shape-memory and self-healing elastomer with the semi-interpenetrating network by green bulk radical polymerization of furfural, ethyl cellulose and fatty-acid-derived monomers. The prepared elastomers exhibited excellent multiple shape memory effects owing to a broad glass transition of semi-interpenetrating polymer networks. More importantly, the SMEs promoted the diffusion and rearrangement of molecular chains at the crack interfaces and led to a significant enhancement of healing efficiency, e.g., 81.2% of healing efficiency of the elongation at break at 80 °C for 5 min. Fu et al. [
178] reported a biobased polymer with shape-memory effect and self-healing performance based on poly(propylene carbonate) and microfibrillated cellulose, the authors also verified that the composites with good shape memory ability also showed excellent scratch resistance and scratch self-healing behavior (the elongation recovered almost completely in oven at 60 °C).

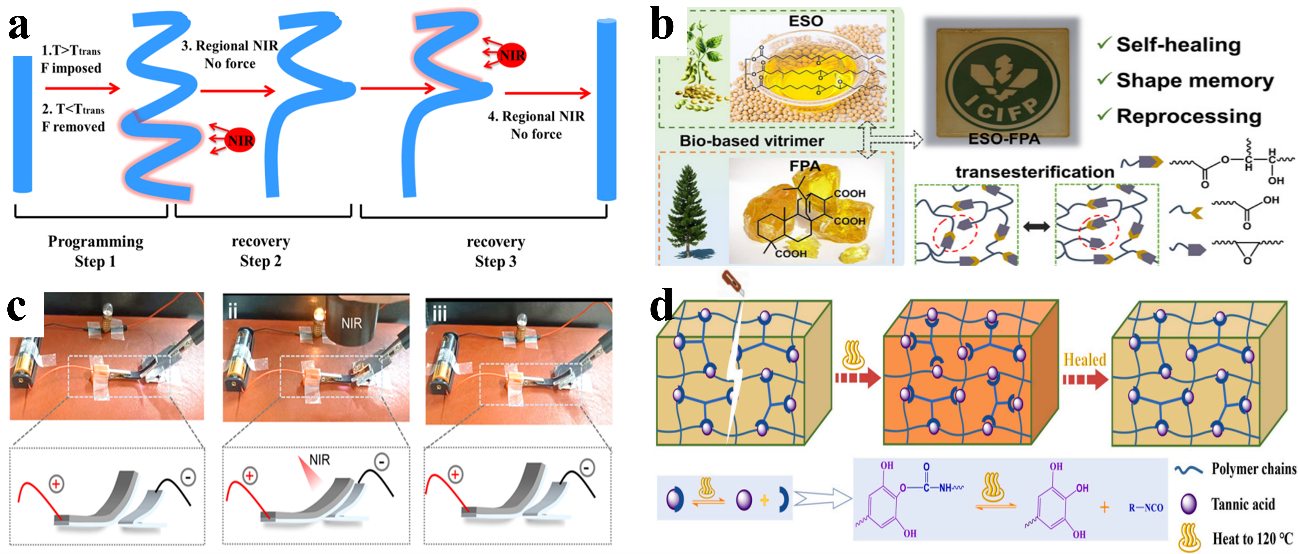

. Biobased SMPs with the self-healing capacity based on dynamic covalent bond. (
a) Mechanism of NIR-induced multistage shape recovery performance based on transesterification reactions [
174] (Copyright 2018 American Chemical Society). (
b) The ESO-FPA biobased vitrimer equipped with excellent self-healing and shape-memory properties [
175] (Copyright 2019 Elsevier Ltd). (
c) Schematic illustration for the preparation of the NIR light-driven switch [
176] (Copyright 2023 American Chemical Society). (
d) Schematic mechanism of the thermally induced self-healing behavior based on dynamic phenol-carbamate [
177] (Copyright 2021 Elsevier Ltd).

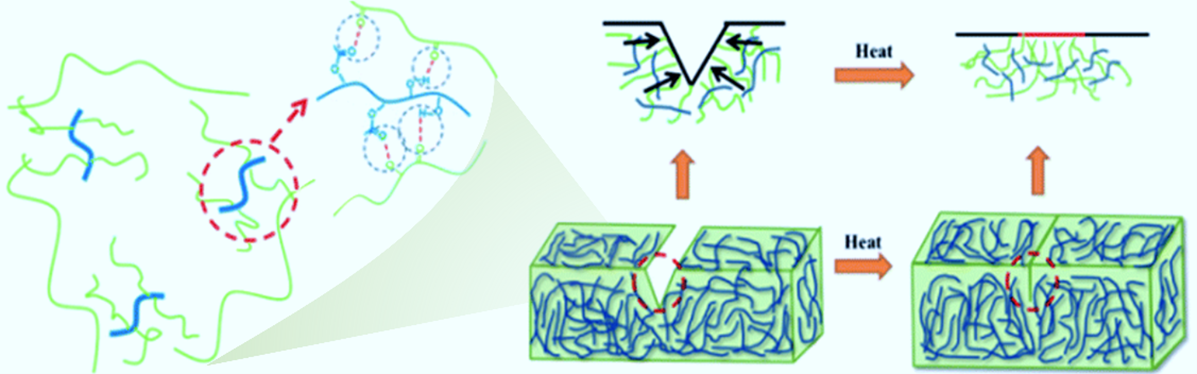

. Schematic illustration of the shape-memory-assisted self-healing concept [
178] (Copyright 2014 Royal Society of Chemistry).
5. 4D Printing Biobased SMPs
3D printing technology, as known as additive manufacturing, is committed to fabricating complex three-dimensional structures based on computer-aided design technology that is beyond the capacity of traditional manufacturing methods. In 2013, a new term “4D printing” was first proposed by Skylar Tibbit at a TED talk [
181]. Compared with 3D printing, 4D printing increases the dimension of time which can be achieved by shape and property changes of 3D objects depending on time. Although 4D printing is developed from 3D printing, the most significant characteristic that distinguishes it from 3D printing endows a dynamic intelligent response deformation for static 3D objects. At present, 4D printing is a highly functional and refined technology, in which different printing devices and approaches adapt to the optimal structure of differentiated material properties [
182]. These manufacturing methods include fused deposition modeling (FDM), direct ink-writing (DIW), stereolithography (SLA), digital light processing (DLP), and selective laser sintering (SLS) [
183]. With the development of 4D printing technology, SMPs have once again ushered in optimized technological innovations and a wide range of applications. Printed SMP objects have a wide range of potential applications in biomedical devices [
184,
185,
186,
187], flexible electronic devices [
188], smart actuators [
189], smart wearable devices [
190], and aerospace [
191].
Biobased shape memory objects based on 4D printing in many vital fields also have significant advantages. With the demand increase for 3D printed downstream products in different industry fields, functionalized materials have been introduced into 3D printing processes. FDM is a convenient technology to print thermoplastics, and biobased SMPs are no exception. PLA is a typical thermoplastic that can be printed by FDM. Hua et al. [
192] fabricated photo-responsive actuators based on PLA and multi-walled carbon nanotubes via FDM printing (a). FDM was also employed to print the PLA/PCL-based bio-polyurethanes [
193], and a moderate cross-linking was established by using chitooligosaccharide (COS) to promote the microphase-separated structure, which resulted in a desirable printability and presumptive shape memory behavior (b). However, FDM still has inevitable disadvantages, since the interlayer force of printed materials only depends on a physical interaction that brings the apparent anisotropy of mechanical properties. In our previous work [
194], we put forward a UV-assisted FDM strategy to print fully biobased shape memory copolyesters derived from biobased monomers dimethyl itaconate, dimethyl sebacate, and 1,4-butanediol, the in-situ photo-crosslinking during the FDM printing greatly enhanced the interlayer adhesion, and thus, the printed object displayed a good mechanical performance with low anisotropy effect, as well as a desirable SMEs as an overheat protection carrier (c).

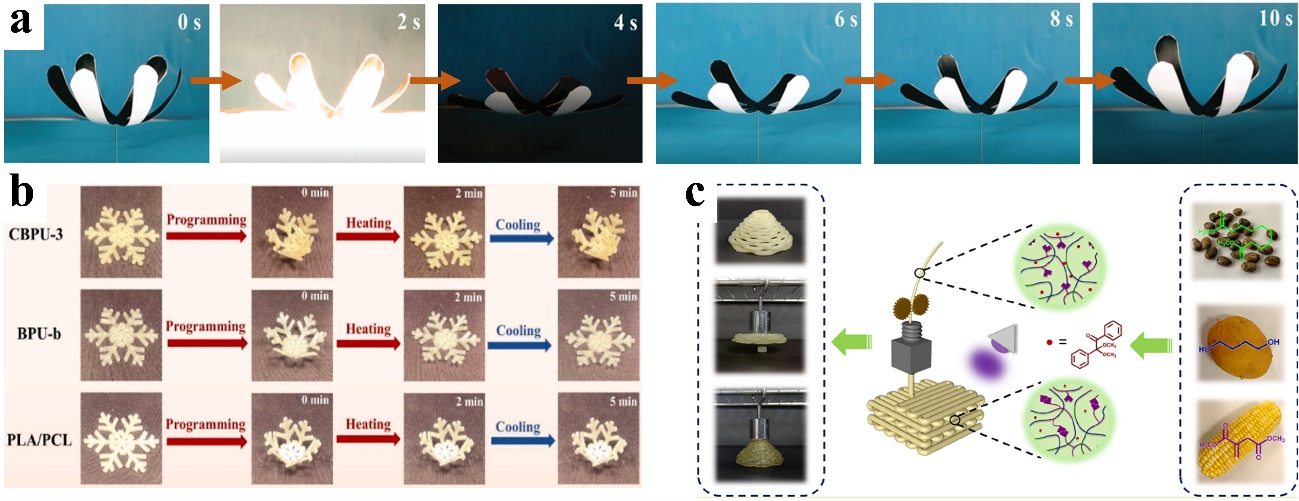

. Application of 4D printing biobased SMPs. (
a) Shape recovery process of the actuator under near-infrared irradiation and recovery to the original shape [
192] (Copyright 2018 Royal Society of Chemistry). (
b) Thermal stimulus-response process of 4D printed snowflake models [
193] (Copyright 2022 Elsevier Ltd). (
c) 4D printed objects of fully biobased shape memory copolyesters [
194] (Copyright 2022 American Chemical Society).
4D printing exhibits great advantages in the manufacture of biomaterials or biomedical devices, especially in the personalized customization and precise control of implantation structures. Furthermore, invasive surgery generally desires to avoid an open surgical wound, while the stimulus-response deformation of SMPs is considered to be the most promising approach [
195]. In general, biomedical devices require excellent biocompatibility, biodegradability, suitable mechanical property, low biotoxicity, and even no toxicity. PLA and its ramifications are the most widely used 4D printing substrates [
196]. Leng et al. [
197] designed a series of biobased and remotely controllable shape memory occlusion devices by FDM printing technology (a), which achieved a self-expanded performance after minimally invasive implantation under a certain strength magnetic field. A similar material was applied in bone repair to match the complex bone defect shape (b) [
73] and bioinspired tracheal scaffold combined with 4D printing (c) [
198]. FDM also can be used to print the sacrificing materials for porous scaffolds. Zhang et al. [
199] fabricated a cytocompatibility porous scaffold based on biobased castor oil/PCL copolyester by removing a FDM printed PLA sacrificing materials from the cured matrix to simulate the nonuniform distribution of porosity found within natural tissues, and the resultant scaffold displayed enhanced attachment, proliferation, and differentiation. The authors also developed a smart biomedical scaffold from photocurable biobased soybean oil epoxidized acrylate using an SLA printing strategy. The obtained scaffold showed good biocompatibility and SMEs that can be triggered by body temperature (d) [
200]. Moreover, the remote responsive SMPs have significant advantages in precise control compared with body temperature stimulation. Graphene oxide functionalized polybutylene succinate/PLA biobased materials (GO-PBS/PLA) showed attractive photothermal performance under near-infrared irradiation, and the printed porous scaffold confirmed the feasibility of precise and remotely controllable structure transformation (e) [
201].

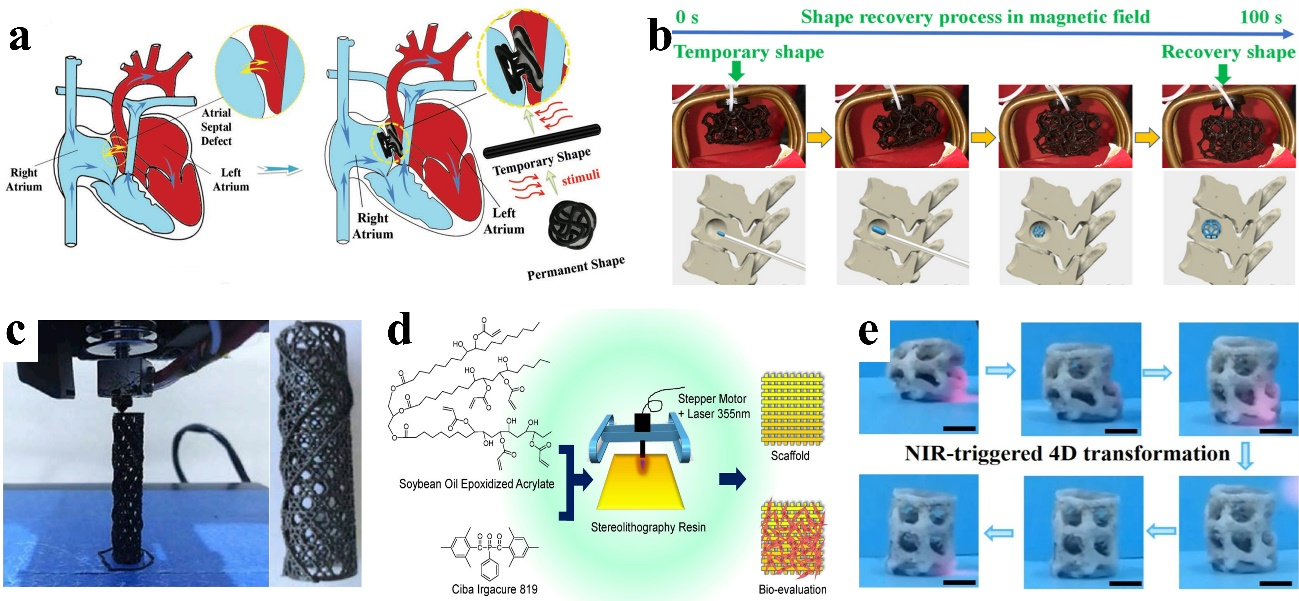

. Biomedical application of 4D printing biobased SMPs: (
a) 4D printed biodegradable and remotely controllable shape memory occlusion devices [
197] (Copyright 2019, Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim). (
b) 4D printed structures in the shape of spinal bone defect [
73] (Copyright 2019 Elsevier Ltd). (
c) 4D printing of bioinspired tracheal scaffold [
198] (Copyright 2019 Elsevier Ltd). (
d) Schematic of soybean oil epoxidized acrylate fabrication process from raw material through resin fabrication and application [
200] (Copyright 2016 Springer Nature). (
e) the precise and remotely controllable transformation process of GO-PBS/PLA porous scaffold [
201] (Copyright 2021 Elsevier Ltd).
6. Summary and Outlook
The extensive research on SMPs greatly enriches their molecular mechanisms, stimulus types, and actuating mode, and has resulted numerous fascinating systems, which exhibit tremendous potential in actuators, sensors, smart textiles, biomaterials and space deploying devices. While the main trend at present is focused on the structure, performance and application of SMPs, we should not ignore the increasing demand for more sustainable materials, since the environment and resources are globally crucial issues. Creating SMPs from sustainable and renewable resources become an important development concept, which draws the great interest of researchers. The recent fast development of the industrialization for biobased monomers, provides various building blocks for biobased SMPs. For instance, versatile biobased polyesters, polyurethanes, epoxies, and vitrimers have been developed, which show promising application prospects in general materials as well as the biomaterials field. Nevertheless, the present biobased SMPs are far away from the practical demands, and several challenges still need to be addressed in the future, including exploring adaptive biobased monomers, more economical synthesis routes, rational tailoring of the architecture of SMPs, and establishing more facile manufacturing strategies.
Acknowledgments
This work was financially supported by the Science and Technology Planning Project of Sichuan Province (2022YFSY0017), 111 Project (B20001) and the Fundamental Research Funds for the Central Universities.
Author Contributions
References collection, K. Luo, Z. Y. Xu and R. Zhan; Writing – Original Draft Preparation, K. Luo, Z. Y. Xu and R. Zhan; Writing – Review & Editing, K.K. Yang; Funding Acquisition, K.K. Yang.
Ethics Statement
Not applicable.
Funding
This research was funded by [Science and Technology Planning Project of Sichuan Province] grant number [2022YFSY0017], [111 Project]” grant number [B20001] and Fundamental Research Funds for the Central Universities.
Declaration of Competing Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
References
1.
Lucherelli MA, Duval A, Averous L. Biobased vitrimers: Towards sustainable and adaptable performing polymer materials.
Prog. Polym. Sci. 2022,
127, 101515.
[Google Scholar]
2.
Mou Z, Chen EYX. Polyesters and Poly(ester-urethane)s from Biobased Difuranic Polyols.
ACS Sustain. Chem. Eng. 2016,
4, 7118–7129.
[Google Scholar]
3.
Chen Q, Du J-h, Xie H-b, Zhao Z-b, Zheng Q. Studies on Preparation and Properties of Bio-based Polymeric Monomers and Their Bio-based Polymers. Acta Polym. Sin. 2016, 1330–1358. doi:10.11777/j.issn1000-3304.2016.16154.
4.
Valerio O, Misra M, Mohanty AK. Poly(glycerol-co-diacids) Polyesters: From Glycerol Biorefinery to Sustainable Engineering Applications, A Review.
ACS Sustain. Chem. Eng. 2018,
6, 5681–5693.
[Google Scholar]
5.
Taroncher-Oldenburg G, Marshall A. Trends in biotech literature 2006.
Nat. Biotechnol. 2007,
25, 961.
[Google Scholar]
6.
Cantarutti C, Dinu R, Mija A. Polyhydroxybutyrate Bioresins with High Thermal Stability by Cross-linking with Resorcinol Diglycidyl Ether.
Biomacromolecules 2020,
21, 3447–3458.
[Google Scholar]
7.
Dhers S, Vantomme G, Averous L. A fully bio-based polyimine vitrimer derived from fructose.
Green Chem. 2019,
21, 1596–1601.
[Google Scholar]
8.
Fei M, Liu T, Zhao B, Otero A, Chang Y-C, Zhang J. From Glassy Plastic to Ductile Elastomer: Vegetable Oil-Based UV-Curable Vitrimers and Their Potential Use in 3D Printing.
ACS Appl. Polym. Mater. 2021,
3, 2470–2479.
[Google Scholar]
9.
Jia P, Shi Y, Song F, Bei Y, Huang C, Zhang M, et al. Bio-based and degradable vitrimer-graphene/graphene oxide composites with self-healing ability stimulated by heat, electricity and microwave as temperature and fire warning sensors.
Compos. Sci. Technol. 2022,
227, 109573.
[Google Scholar]
10.
Li W, Xiao L, Huang J, Wang Y, Nie X, Chen J. Bio-based epoxy vitrimer for recyclable and carbon fiber reinforced materials: Synthesis and structure-property relationship.
Compos. Sci. Technol. 2022,
227, 109575.
[Google Scholar]
11.
Liu T, Fei M-e, Zhao B-m, Zhang J-w. Progress in Biobased Vitrimers.
Acta Polym. Sin. 2020,
51, 817–832.
[Google Scholar]
12.
Zhu Y, Gao F, Zhong J, Shen L, Lin Y. Renewable castor oil and DL-limonene derived fully bio-based vinylogous urethane vitrimers.
Eur. Polym. J. 2020,
135, 109865.
[Google Scholar]
13.
Altuna FI, Antonacci J, Arenas GF, Pettarin V, Hoppe CE, Williams RJJ. Photothermal triggering of self-healing processes applied to the reparation of bio-based polymer networks.
Mater. Res. Express 2016,
3, 045003.
[Google Scholar]
14.
Gu L, Wu Q-Y. Recyclable bio-based crosslinked polyurethanes with self-healing ability.
J. Appl. Polym. Sci. 2018,
135, 46272.
[Google Scholar]
15.
Huang J, Zhang J, Zhu G, Yu X, Hu Y, Shang Q, et al. Self-healing, high-performance, and high-biobased-content UV-curable coatings derived from rubber seed oil and itaconic acid.
Prog. Org. Coat. 2021,
159, 106391.
[Google Scholar]
16.
Hui Y, Wen Z-B, Pilate F, Xie H, Fan C-J, Du L, et al. A facile strategy to fabricate highly-stretchable self-healing poly(vinyl alcohol) hybrid hydrogels based on metal-ligand interactions and hydrogen bonding.
Polym. Chem. 2016,
7, 7269–7277.
[Google Scholar]
17.
Lai S-M, Liu J-L, Huang Y-H. Preparation of Self-healing Natural Rubber/Polycaprolactone (NR/PCL) Blends.
J. Macromol. Sci. Part B-Phys. 2020,
59, 587–607.
[Google Scholar]
18.
Li W, Xiao L, Wang Y, Chen J, Nie X. Self-healing silicon-containing eugenol-based epoxy resin based on disulfide bond exchange: Synthesis and structure-property relationships.
Polymer 2021,
229, 123967.
[Google Scholar]
19.
Yang Y, Urban MW. Self-healing polymeric materials.
Chem. Soc. Rev. 2013,
42, 7446–7467.
[Google Scholar]
20.
Zhang J, Huang J, Zhu G, Yu X, Cheng J, Liu Z, et al. Self-healing, recyclable, and removable UV-curable coatings derived from tung oil and malic acid.
Green Chem. 2021,
23, 5875–5886.
[Google Scholar]
21.
Zhu M, Liu J, Gan L, Long M. Research progress in bio-based self-healing materials.
Eur. Polym. J. 2020,
129, 109651.
[Google Scholar]
22.
Ali ES, Khiar ASA, Zubir SA, Zulkeple ZAZ. Electrical conductivity of biobased shape memory polyurethane filled with CNT.
Mater. Sci. Forum 2017,
880, 69–72.
[Google Scholar]
23.
Capiel G, Marcovich NE, Mosiewicki MA. Shape memory polymer networks based on methacrylated fatty acids.
Eur. Polym. J. 2019,
116, 321–329.
[Google Scholar]
24.
Feng Y, Hu Y, Man L, Yuan T, Zhang C, Yang Z. Biobased thiol-epoxy shape memory networks from gallic acid and vegetable oils.
Eur. Polym. J. 2019,
112, 619–628.
[Google Scholar]
25.
Petrovic ZS, Milic J, Zhang F, Ilavsky J. Fast-responding bio-based shape memory thermoplastic polyurethanes.
Polymer 2017,
121, 26–37.
[Google Scholar]
26.
Saralegi A, Foster EJ, Weder C, Eceiza A, Angeles Corcuera M. Thermoplastic shape-memory polyurethanes based on natural oils.
Smart Mater. Struct. 2014,
23, 025033.
[Google Scholar]
27.
Tsujimoto T, Uyama H. Full Biobased Polymeric Material from Plant Oil and Poly(lactic acid) with a Shape Memory Property.
ACS Sustain. Chem. Eng. 2014,
2, 2057–2062.
[Google Scholar]
28.
Tsujimoto T, Takeshita K, Uyama H. Bio-based Epoxy Resins from Epoxidized Plant Oils and Their Shape Memory Behaviors.
J. Am. Oil Chem. Soc. 2016,
93, 1663–1669.
[Google Scholar]
29.
Vechambre C, Chaunier L, Lourdin D. Novel Shape-Memory Materials Based on Potato Starch.
Macromol. Mater. Eng. 2010,
295, 115–122.
[Google Scholar]
30.
Wang G, Jiang M, Zhang Q, Wang R, Zhou G. Biobased multiblock copolymers: Synthesis, properties and shape memory performance of poly(ethylene 2,5-furandicarboxylate)-b-ly(ethylene glycol).
Polym. Degrad. Stab. 2017,
144, 121–127.
[Google Scholar]
31.
Calvo-Correas T, Gabilondo N, Alonso-Varona A, Palomares T, Angeles Corcuera M, Eceiza A. Shape-memory properties of crosslinked biobased polyurethanes.
Eur. Polym. J. 2016,
78, 253–263.
[Google Scholar]
32.
Behl M, Lendlein A. Shape-memory polymers.
Mater. Today 2007,
10, 20–28.
[Google Scholar]
33.
Liu C, Qin H, Mather PT. Review of progress in shape-memory polymers.
J. Mater. Chem. 2007,
17, 1543–1558.
[Google Scholar]
34.
Huang WM, Yang B, Zhao Y, Ding Z. Thermo-moisture responsive polyurethane shape-memory polymer and composites: a review.
J. Mater. Chem. 2010,
20, 3367–3381.
[Google Scholar]
35.
Wu Y, Lin Y, Zhou Y, Zuo F, Zheng Z, Ding X. Light-Induced Shape Memory Polymer Materials.
Progr. Chem. 2012,
24, 2004–2010.
[Google Scholar]
36.
Zhao Q, Qi HJ, Xie T. Recent progress in shape memory polymer: New behavior, enabling materials, and mechanistic understanding.
Prog. Polym. Sci. 2015,
49, 79–120.
[Google Scholar]
37.
Biswas MC, Chakraborty S, Bhattacharjee A, Mohammed Z. 4D Printing of Shape Memory Materials for Textiles: Mechanism, Mathematical Modeling, and Challenges.
Adv. Funct. Mater. 2021,
31, 202100257.
[Google Scholar]
38.
Safranski DL, Smith KE, Gall K. Mechanical Requirements of Shape-Memory Polymers in Biomedical Devices.
Polym. Rev. 2013,
53, 76–91.
[Google Scholar]
39.
Lendlein A, Behl M, Hiebl B, Wischke C. Shape-memory polymers as a technology platform for biomedical applications.
Expert Rev. Med. Devices 2010,
7, 357–379.
[Google Scholar]
40.
Liu Y, Du H, Liu L, Leng J. Shape memory polymers and their composites in aerospace applications: a review.
Smart Mater. Struct. 2014,
23, 023001.
[Google Scholar]
41.
Rainer WC, Redding EM, Hitov JJ, Sloan AW, Stewart WD. Polyethylene Product and Process. US Patent 3144398, 1964.
42.
Huang C-L, Jiao L, Zhang J-J, Zeng J-B, Yang K-K, Wang Y-Z. Poly(butylene succinate)-poly(ethylene glycol) multiblock copolymer: Synthesis, structure, properties and shape memory performance.
Polym. Chem. 2012,
3, 800–808.
[Google Scholar]
43.
Li W, Liu Y, Leng J. Programmable and Shape-Memorizing Information Carriers.
ACS Appl. Mater. Interfaces 2017,
9, 44792–44798.
[Google Scholar]
44.
Xiao L, Wei M, Zhan M, Zhang J, Xie H, Deng X, et al. Novel triple-shape PCU/PPDO interpenetrating polymer networks constructed by self-complementary quadruple hydrogen bonding and covalent bonding.
Polym. Chem. 2014,
5, 2231–2241.
[Google Scholar]
45.
Agarwal P, Chopra M, Archer LA. Nanoparticle Netpoints for Shape-Memory Polymers.
Angew. Chem.-Intl. Edit. 2011,
50, 8670–8673.
[Google Scholar]
46.
Zheng X, Zhou S, Li X, Weng H. Shape memory properties of poly(D,L-lactide)/hydroxyapatite composites.
Biomaterials 2006,
27, 4288–4295.
[Google Scholar]
47.
Wang L, Zhang F, Liu Y, Du S, Leng J. Photosensitive Composite Inks for Digital Light Processing Four-Dimensional Printing of Shape Memory Capture Devices.
ACS Appl. Mater. Interfaces 2021,
13, 18110–18119.
[Google Scholar]
48.
Mei H, Zhao B, Gao Y, Li L, Liu L, Zheng S. Block Copolymer Networks Composed of Poly(epsilon-caprolactone) and Polyethylene with Triple Shape Memory Properties.
Chin. J. Polym. Sci. 2022,
40, 185–196.
[Google Scholar]
49.
Yang C-S, Wu H-C, Sun J-S, Hsiao H-M, Wang T-W. Thermo-Induced Shape-Memory PEG-PCL Copolymer as a Dual Drug-Eluting Biodegradable Stent.
ACS Appl. Mater. Interfaces 2013,
5, 10985–10994.
[Google Scholar]
50.
Wen Z-B, Liu D, Li X-Y, Zhu C-H, Shao R-F, Visvanathan R, et al. Fabrication of Liquid Crystalline Polyurethane Networks with a Pendant Azobenzene Group to Access Thermal/Photoresponsive Shape-Memory Effects.
ACS Appl. Mater. Interfaces 2017,
9, 24947–24954.
[Google Scholar]
51.
Jiang Z-C, Xiao Y-Y, Kang Y, Pan M, Li B-J, Zhang S. Shape Memory Polymers Based on Supramolecular Interactions.
ACS Appl. Mater. Interfaces 2017,
9, 20276–20293.
[Google Scholar]
52.
Chen S, Hu J, Yuen C, Chan L. Novel moisture-sensitive shape memory polyurethanes containing pyridine moieties.
Polymer 2009,
50, 4424–4428.
[Google Scholar]
53.
Kumpfer JR, Rowan SJ. Thermo-, Photo-, and Chemo-Responsive Shape-Memory Properties from Photo-Cross-Linked Metallo-Supramolecular Polymers.
J. Am. Chem. Soc. 2011,
133, 12866–12874.
[Google Scholar]
54.
Dong Z-Q, Cao Y, Yuan Q-J, Wang Y-F, Li J-H, Li B-J, et al. Redox- and Glucose-Induced Shape-Memory Polymers.
Macromol. Rapid Commun. 2013,
34, 867–872.
[Google Scholar]
55.
Kratz K, Madbouly SA, Wagermaier W, Lendlein A. Temperature-Memory Polymer Networks with Crystallizable Controlling Units.
Adv. Mater. 2011,
23, 4058–4062.
[Google Scholar]
56.
Xie H, Li L, Deng X-Y, Cheng C-Y, Yang K-K, Wang Y-Z. Reinforcement of shape-memory poly(ethylene-co-vinyl acetate) by carbon fibre to access robust recovery capability under resistant condition.
Compos. Sci. Technol. 2018,
157, 202–208.
[Google Scholar]
57.
Xie H, Li L, Cheng C-Y, Yang K-K, Wang Y-Z. Poly(ethylene-co-vinyl acetate)/graphene shape-memory actuator with a cyclic thermal/light dual-sensitive capacity.
Compos. Sci. Technol. 2019,
173, 41–46.
[Google Scholar]
58.
Wei M, Zhan M, Yu D, Xie H, He M, Yang K, et al. Novel Poly(tetramethylene ether)glycol and Poly(epsilon-caprolactone) Based Dynamic Network via Quadruple Hydrogen Bonding with Triple-Shape Effect and Self-Healing Capacity.
ACS Appl. Mater. Interfaces 2015,
7, 2585–2596.
[Google Scholar]
59.
Zhang J, Niu Y, Huang C, Xiao L, Chen Z, Yang K, et al. Self-healable and recyclable triple-shape PPDO-PTMEG co-network constructed through thermoreversible Diels-Alder reaction.
Polym. Chem. 2012,
3, 1390–1393.
[Google Scholar]
60.
Xie H, He M-J, Deng X-Y, Du L, Fan C-J, Yang K-K, et al. Design of Poly(L-lactide)-Poly(ethylene glycol) Copolymer with Light-Induced Shape-Memory Effect Triggered by Pendant Anthracene Groups.
ACS Appl. Mater. Interfaces 2016,
8, 9431–9439.
[Google Scholar]
61.
Xie H, Cheng C-Y, Deng X-Y, Fan C-J, Du L, Yang K-K, et al. Creating Poly(tetramethylene oxide) Glycol-Based Networks with Tunable Two-Way Shape Memory Effects via Temperature-Switched Netpoints.
Macromolecules 2017,
50, 5155–5164.
[Google Scholar]
62.
Miaudet P, Derre A, Maugey M, Zakri C, Piccione PM, Inoubli R, et al. Shape and temperature memory of nanocomposites with broadened glass transition.
Science 2007,
318, 1294–1296.
[Google Scholar]
63.
Xie H, Cheng C-Y, Du L, Fan C-J, Deng X-Y, Yang K-K, et al. A Facile Strategy to Construct PDLLA-PTMEG Network with Triple-Shape Effect via Photo-Cross-Linking of Anthracene Groups.
Macromolecules 2016,
49, 3845–3855.
[Google Scholar]
64.
Xiao LP, Wei M, Zhan MQ, Zhang JJ, Xie H, Deng XY, et al. Novel triple-shape PCU/PPDO interpenetrating polymer networks constructed by self-complementary quadruple hydrogen bonding and covalent bonding.
Polym. Chem. 2014,
5, 2231–2241.
[Google Scholar]
65.
Xie T. Tunable polymer multi-shape memory effect.
Nature 2010,
464, 267–270.
[Google Scholar]
66.
Li J, Liu T, Xia S, Pan Y, Zheng ZH, Ding XB, et al. A versatile approach to achieve quintuple-shape memory effect by semi-interpenetrating polymer networks containing broadened glass transition and crystalline segments.
J. Mater. Chem. 2011,
21, 12213–12217.
[Google Scholar]
67.
Luo Y, Guo Y, Gao X, Li B-G, Xie T. A General Approach Towards Thermoplastic Multishape-Memory Polymers via Sequence Structure Design.
Adv. Mater. 2013,
25, 743–748.
[Google Scholar]
68.
Xie H, Yang K-K, Wang Y-Z. Photo-cross-linking: A powerful and versatile strategy to develop shape-memory polymers.
Prog. Polym. Sci. 2019,
95, 32–64.
[Google Scholar]
69.
Lendlein A, Jiang HY, Junger O, Langer R. Light-induced shape-memory polymers.
Nature 2005,
434, 879–882.
[Google Scholar]
70.
Liu Y, Lv H, Lan X, Leng J, Du S. Review of electro-active shape-memory polymer composite.
Compos. Sci. Technol. 2009,
69, 2064–2068.
[Google Scholar]
71.
Qi X, Xiu H, Wei Y, Zhou Y, Guo Y, Huang R, et al. Enhanced shape memory property of polylactide/thermoplastic poly(ether)urethane composites via carbon black self-networking induced co-continuous structure.
Compos. Sci. Technol. 2017,
139, 8–16.
[Google Scholar]
72.
Razzaq MY, Behl M, Noechel U, Lendlein A. Magnetically controlled shape-memory effects of hybrid nanocomposites from oligo(omega-pentadecalactone) and covalently integrated magnetite nanoparticles.
Polymer 2014,
55, 5953–5960.
[Google Scholar]
73.
Zhang F, Wang L, Zheng Z, Liu Y, Leng J. Magnetic programming of 4D printed shape memory composite structures.
Compos. Part A-Appl. Sci. Manuf. 2019,
125, 105571.
[Google Scholar]
74.
Du L, Xu Z, Fan C-J, Xiang G, Yang K-K, Wang Y-Z. A Fascinating Metallo-Supramolecular Polymer Network with Thermal/Magnetic/Light-Responsive Shape-Memory Effects Anchored by Fe
3O
4 Nanoparticles.
Macromolecules 2018,
51, 705–715.
[Google Scholar]
75.
Zhang H, Xia H, Zhao Y. Optically triggered and spatially controllable shape-memory polymer-gold nanoparticle composite materials.
J. Mater. Chem. 2012,
22, 845–849.
[Google Scholar]
76.
Zhang H, Zhao Y. Polymers with Dual Light-Triggered Functions of Shape Memory and Healing Using Gold Nanoparticles.
ACS Appl. Mater. Interfaces 2013,
5, 13069–13075.
[Google Scholar]
77.
Yang Z, Wang Q, Wang T. Dual-Triggered and Thermally Reconfigurable Shape Memory Graphene-Vitrimer Composites.
ACS Appl. Mater. Interfaces 2016,
8, 21691–21699.
[Google Scholar]
78.
Xie H, Cheng C-Y, Li L, Deng X-Y, Yang K-K, Wang Y-Z. Integrating shape-memory technology and photo-imaging on a polymer platform for a high-security information storage medium.
J. Mater. Chem. C 2018,
6, 10422–10427.
[Google Scholar]
79.
Zhang X, Zhu C, Xu B, Qin L, Wei J, Yu Y. Rapid, Localized, and Athermal Shape Memory Performance Triggered by Photoswitchable Glass Transition Temperature.
ACS Appl. Mater. Interfaces 2019,
11, 46212–46218.
[Google Scholar]
80.
Lu X, Guo S, Tong X, Xia H, Zhao Y. Tunable Photocontrolled Motions Using Stored Strain Energy in Malleable Azobenzene Liquid Crystalline Polymer Actuators.
Adv. Mater. 2017,
29, 1606467.
[Google Scholar]
81.
Qi X, Jing M, Liu Z, Dong P, Liu T, Fu Q. Microfibrillated cellulose reinforced bio-based poly(propylene carbonate) with dual-responsive shape memory properties.
RSC Adv. 2016,
6, 7560–7567.
[Google Scholar]
82.
Maraveas C, Bayer IS, Bartzanas T. 4D printing: Perspectives for the production of sustainable plastics for agriculture.
Biotechnol. Adv. 2022,
54, 107785.
[Google Scholar]
83.
Liu Y, Li Y, Chen H, Yang G, Zheng X, Zhou S. Water-induced shape-memory poly(D,L-lactide)/microcrystalline cellulose composites.
Carbohydr. Polym. 2014,
104, 101–108.
[Google Scholar]
84.
Wang C, Wang H, Zou F, Chen S, Wang Y. Development of Polyhydroxyalkanoate-Based Polyurethane with Water-Thermal Response Shape-Memory Behavior as New 3D Elastomers Scaffolds.
Polymers 2019,
11, 1030.
[Google Scholar]
85.
Huang WM, Yang B, An L, Li C, Chan YS. Water-driven programmable polyurethane shape memory polymer: Demonstration and mechanism.
Appl. Phys. Lett. 2005,
86, 1880448.
[Google Scholar]
86.
Li Y, Chen H, Liu D, Wang W, Liu Y, Zhou S. pH-Responsive Shape Memory Poly(ethylene glycol)-Poly(epsilon-caprolactone)-based Polyurethane/Cellulose Nanocrystals Nanocomposite.
ACS Appl. Mater. Interfaces 2015,
7, 12988–12999.
[Google Scholar]
87.
Han X-J, Dong Z-Q, Fan M-M, Liu Y, Li J-H, Wang Y-F, et al. pH-Induced Shape-Memory Polymers.
Macromol. Rapid Commun. 2012,
33, 1055–1060.
[Google Scholar]
88.
Dodds DR, Gross RA. Chemicals from biomass.
Science 2007,
318, 1250–1251.
[Google Scholar]
89.
Werpy T, Petersen G. Top Value Added Chemicals from Biomass: Volume i-results of Screening for Potential Candidates from Sugars and Synthesis Gas; Technical Report; National Renewable Energy Lab. (NREL): Golden, CO, USA, 2004.
90.
Jiang Y, Loos K. Enzymatic Synthesis of Biobased Polyesters and Polyamides.
Polymers 2016,
8, 243.
[Google Scholar]
91.
Verma M, Mandyal P, Singh D, Gupta N. Recent Developments in Heterogeneous Catalytic Routes for the Sustainable Production of Succinic Acid from Biomass Resources.
ChemSusChem 2020,
13, 4026–4034.
[Google Scholar]
92.
Short GN, Nguyen HTH, Scheurle PI, Miller SA. Aromatic polyesters from biosuccinic acid.
Polym. Chem. 2018,
9, 4113–4119.
[Google Scholar]
93.
Tachibana Y, Masuda T, Funabashi M, Kunioka M. Chemical Synthesis of Fully Biomass-Based Poly(butylene succinate) from Inedible-Biomass-Based Furfural and Evaluation of Its Biomass Carbon Ratio.
Biomacromolecules 2010,
11, 2760–2765.
[Google Scholar]
94.
De Carvalho JC, Magalhaes AI Jr, Soccol CR. Biobased itaconic acid market and research trends - is it really a promising chemical?
Chim. Oggi-Chem. Today 2018,
36, 56–58.
[Google Scholar]
95.
Mondala AH. Direct fungal fermentation of lignocellulosic biomass into itaconic, fumaric, and malic acids: current and future prospects.
J. Ind. Microbiol. Biotechnol. 2015,
42, 487–506.
[Google Scholar]
96.
Kumar S, Krishnan S, Samal SK, Mohanty S, Nayak SK. Itaconic acid used as a versatile building block for the synthesis of renewable resource-based resins and polyesters for future prospective: a review.
Polym. Int. 2017,
66, 1349–1363.
[Google Scholar]
97.
Mika LT, Csefalvay E, Nemeth A. Catalytic Conversion of Carbohydrates to Initial Platform Chemicals: Chemistry and Sustainability.
Chem. Rev. 2018,
118, 505–613.
[Google Scholar]
98.
Gupta AP, Kumar V. New emerging trends in synthetic biodegradable polymers - Polylactide: A critique.
Eur. Polym. J. 2007,
43, 4053–4074.
[Google Scholar]
99.
Chen G-Q. A microbial polyhydroxyalkanoates (PHA) based bio- and materials industry.
Chem. Soc. Rev. 2009,
38, 2434–2446.
[Google Scholar]
100.
Chen G-Q, Wu Q. The application of polyhydroxyalkanoates as tissue engineering materials.
Biomaterials 2005,
26, 6565–6578.
[Google Scholar]
101.
Chen G-Q, Patel MK. Plastics Derived from Biological Sources: Present and Future: A Technical and Environmental Review.
Chem. Rev. 2012,
112, 2082–2099.
[Google Scholar]
102.
Matsumoto Ki, Taguchi S. Biosynthetic polyesters consisting of 2-hydroxyalkanoic acids: current challenges and unresolved questions.
Appl. Microbiol. Biotechnol. 2013,
97, 8011–8021.
[Google Scholar]
103.
Philip S, Keshavarz T, Roy I. Polyhydroxyalkanoates: biodegradable polymers with a range of applications.
J. Chem. Technol. Biotechnol. 2007,
82, 233–247.
[Google Scholar]
104.
Li Y, Wang L, Ju J, Yu B, Ma Y. Efficient production of polymer-grade D-lactate by Sporolactobacillus laevolacticus DSM442 with agricultural waste cottonseed as the sole nitrogen source.
Bioresour. Technol. 2013,
142, 186–191.
[Google Scholar]
105.
Cubas-Cano E, Gonzalez-Fernandez C, Ballesteros M, Tomas-Pejo E. Biotechnological advances in lactic acid production by lactic acid bacteria: lignocellulose as novel substrate.
Biofuels Bioprod. Biorefin. 2018,
12, 290–303.
[Google Scholar]
106.
Ajala EO, Olonade YO, Ajala MA, Akinpelu GS. Lactic Acid Production from Lignocellulose - A Review of Major Challenges and Selected Solutions.
Chembioeng. Rev. 2020,
7, 38–49.
[Google Scholar]
107.
Datta R, Henry M. Lactic acid: recent advances in products, processes and technologies - a review.
J. Chem. Technol. Biotechnol. 2006,
81, 1119–1129.
[Google Scholar]
108.
Nampoothiri KM, Nair NR, John RP. An overview of the recent developments in polylactide (PLA) research.
Bioresour. Technol. 2010,
101, 8493–8501.
[Google Scholar]
109.
Lei L, Ding T, Shi R, Liu Q, Zhang L, Chen D, et al. Synthesis, characterization and in vitro degradation of a novel degradable poly((1,2-propanediol-sebacate)-citrate) bioelastomer.
Polym. Degrad. Stab. 2007,
92, 389–396.
[Google Scholar]
110.
Sousa AF, Vilela C, Fonseca AC, Matos M, Freire CSR, Gruter G-JM, et al. Biobased polyesters and other polymers from 2,5-furandicarboxylic acid: a tribute to furan excellency.
Polym. Chem. 2015,
6, 5961–5983.
[Google Scholar]
111.
Woodruff MA, Hutmacher DW. The return of a forgotten polymer-Polycaprolactone in the 21st century.
Prog. Polym. Sci. 2010,
35, 1217–1256.
[Google Scholar]
112.
Hu X, Li Y, Gao Y, Wang R, Wang Z, Kang H, et al. Renewable and super-toughened poly (butylene succinate) with bio-based elastomers: Preparation, compatibility and performances.
Eur. Polym. J. 2019,
116, 438–444.
[Google Scholar]
113.
Guo H, Liu H, Jin Y, Zhang R, Yu Y, Deng L, et al. Advances in research on the bio-production of 1,4-butanediol by the engineered microbes.
Biochem. Eng. J. 2022,
185, 108478.
[Google Scholar]
114.
Wang J, Jain R, Shen X, Sun X, Cheng M, Liao JC, et al. Rational engineering of diol dehydratase enables 1,4-butanediol biosynthesis from xylose.
Metab. Eng. 2017,
40, 148–156.
[Google Scholar]
115.
Gandini A. Furans as offspring of sugars and polysaccharides and progenitors of a family of remarkable polymers: a review of recent progress.
Polym. Chem. 2010,
1, 245–251.
[Google Scholar]
116.
Klein R, Wurm FR. Aliphatic Polyethers: Classical Polymers for the 21st Century.
Macromol. Rapid Commun. 2015,
36, 1147–1165.
[Google Scholar]
117.
Amarasekara AS, Singh TB, Larkin E, Hasan MA, Fan H-J. NaOH catalyzed condensation reactions between levulinic acid and biomass derived furan-aldehydes in water.
Ind. Crops Prod. 2015,
65, 546–549.
[Google Scholar]
118.
Zhang D, Dumont M-J. Advances in Polymer Precursors and Bio-Based Polymers Synthesized from 5-Hydroxymethylfurfural.
J. Polym. Sci. Pol. Chem. 2017,
55, 1478–1492.
[Google Scholar]
119.
Delidovich I, Hausoul PJC, Deng L, Pfuetzenreuter R, Rose M, Palkovits R. Alternative Monomers Based on Lignocellulose and Their Use for Polymer Production.
Chem. Rev. 2016,
116, 1540–1599.
[Google Scholar]
120.
van Putten R-J, van der Waal JC, de Jong E, Rasrendra CB, Heeres HJ, de Vries JG. Hydroxymethylfurfural, A Versatile Platform Chemical Made from Renewable Resources.
Chem. Rev. 2013,
113, 1499–1597.
[Google Scholar]
121.
Cantarutti C, Dinu R, Mija A. Biorefinery Byproducts and Epoxy Biorenewable Monomers: A Structural Elucidation of Humins and Triglycidyl Ether of Phloroglucinol Cross-Linking.
Biomacromolecules 2020,
21, 517–533.
[Google Scholar]
122.
Jiang Y, Woortman AJJ, van Ekenstein GORA, Petrovic DM, Loos K. Enzymatic Synthesis of Biobased Polyesters Using 2,5-Bis(hydroxymethyl)furan as the Building Block.
Biomacromolecules 2014,
15, 2482–2493.
[Google Scholar]
123.
Cureton LT, Napadensky E, Annunziato C, La Scala JJ. The effect of furan molecular units on the glass transition and thermal degradation temperatures of polyamides.
J. Appl. Polym. Sci. 2017,
134, 45514.
[Google Scholar]
124.
Dijkman WP, Groothuis DE, Fraaije MW. Enzyme-Catalyzed Oxidation of 5-Hydroxymethylfurfural to Furan-2,5-dicarboxylic Acid.
Angew. Chem.-Intl. Edit. 2014,
53, 6515–6518.
[Google Scholar]
125.
Balachandran VS, Jadhav SR, Vemula PK, John G. Recent advances in cardanol chemistry in a nutshell: from a nut to nanomaterials.
Chem. Soc. Rev. 2013,
42, 427–438.
[Google Scholar]
126.
Aouf C, Nouailhas H, Fache M, Caillol S, Boutevin B, Fulcrand H. Multi-functionalization of gallic acid. Synthesis of a novel bio-based epoxy resin.
Eur. Polym. J. 2013,
49, 1185–1195.
[Google Scholar]
127.
Priefert H, Rabenhorst J, Steinbuchel A. Biotechnological production of vanillin.
Appl. Microbiol. Biotechnol. 2001,
56, 296–314.
[Google Scholar]
128.
Dinu R, Lafont U, Damiano O, Mija A. High Glass Transition Materials from Sustainable Epoxy Resins with Potential Applications in the Aerospace and Space Sectors.
ACS Appl. Polym. Mater. 2022,
4, 3636–3646.
[Google Scholar]
129.
Zhang Q, Song M, Xu Y, Wang W, Wang Z, Zhang L. Bio-based polyesters: Recent progress and future prospects.
Prog. Polym. Sci. 2021,
120, 101430.
[Google Scholar]
130.
Fache M, Boutevin B, Caillol S. Epoxy thermosets from model mixtures of the lignin-to-vanillin process.
Green Chem. 2016,
18, 712–725.
[Google Scholar]
131.
Amarasekara AS, Wiredu B, Razzaq A. Vanillin based polymers: I. An electrochemical route to polyvanillin.
Green Chem. 2012,
14, 2395–2397.
[Google Scholar]
132.
Fache M, Viola A, Auvergne R, Boutevin B, Caillol S. Biobased epoxy thermosets from vanillin-derived oligomers.
Eur. Polym. J. 2015,
68, 526–535.
[Google Scholar]
133.
Mialon L, Pemba AG, Miller SA. Biorenewable polyethylene terephthalate mimics derived from lignin and acetic acid.
Green Chem. 2010,
12, 1704–1706.
[Google Scholar]
134.
Firdaus M, Meier MAR. Renewable co-polymers derived from vanillin and fatty acid derivatives.
Eur. Polym. J. 2013,
49, 156–166.
[Google Scholar]
135.
Islam MR, Beg MDH, Jamari SS. Development of Vegetable-Oil-Based Polymers.
J. Appl. Polym. Sci. 2014,
131, 40787.
[Google Scholar]
136.
Tran TN, Di Mauro C, Graillot A, Mija A. Monitoring the structure-reactivity relationship in epoxidized perilla and safflower oil thermosetting resins.
Polym. Chem. 2020,
11, 5088–5097.
[Google Scholar]
137.
Di Mauro C, Mija A. Influence of the Presence of Disulphide Bonds in Aromatic or Aliphatic Dicarboxylic Acid Hardeners Used to Produce Reprocessable Epoxidized Thermosets.
Polymers 2021,
13, 534.
[Google Scholar]
138.
Di Mauro C, Malburet S, Graillot A, Mija A. Recyclable, Repairable, and Reshapable (3R) Thermoset Materials with Shape Memory Properties from Bio-Based Epoxidized Vegetable Oils.
ACS Appl. Bio Mater. 2020,
3, 8094–8104.
[Google Scholar]
139.
Di Mauro C, Genua A, Mija A. Building thermally and chemically reversible covalent bonds in vegetable oil based epoxy thermosets. Influence of epoxy-hardener ratio in promoting recyclability.
Mater. Adv. 2020,
1, 1788–1798.
[Google Scholar]
140.
Xia Y, Larock RC. Vegetable oil-based polymeric materials: synthesis, properties, and applications.
Green Chem. 2010,
12, 1893–1909.
[Google Scholar]
141.
Dinu R, Briand N, Mija A. Influence of Keratin on Epoxidized Linseed Oil Curing and Thermoset Performances.
ACS Sustain. Chem. Eng. 2021,
9, 15641–15652.
[Google Scholar]
142.
Di Mauro C, Genua A, Mija A. Kinetical Study, Thermo-Mechanical Characteristics and Recyclability of Epoxidized Camelina Oil Cured with Antagonist Structure (Aliphatic/Aromatic) or Functionality (Acid/Amine) Hardeners.
Polymers 2021,
13, 2503.
[Google Scholar]
143.
Di Mauro C, Genua A, Rymarczyk M, Dobbels C, Malburet S, Graillot A, et al. Chemical and mechanical reprocessed resins and bio-composites based on five epoxidized vegetable oils thermosets reinforced with flax fibers or PLA woven.
Compos. Sci. Technol. 2021,
205, 108678.
[Google Scholar]
144.
Tan SG, Chow WS. Biobased Epoxidized Vegetable Oils and Its Greener Epoxy Blends: A Review.
Polym.-Plast. Technol. Eng. 2010,
49, 1581–1590.
[Google Scholar]
145.
Di Mauro C, Thi-Nguyet T, Mija A. One-Pot Terpolymerization Synthesis of High Carbon Biocontent Recyclable Epoxy Thermosets and Their Composites with Flax Woven Fibers.
ACS Sustain. Chem. Eng. 2021,
9, 8526–8538.
[Google Scholar]
146.
John G, Nagarajan S, Vemula PK, Silverman JR, Pillai CKS. Natural monomers: A mine for functional and sustainable materials - Occurrence, chemical modification and polymerization.
Prog. Polym. Sci. 2019,
92, 158–209.
[Google Scholar]
147.
Abbasi A, Nasef MM, Yahya WZN. Copolymerization of vegetable oils and bio-based monomers with elemental sulfur: A new promising route for bio-based polymers.
Sustain. Chem. Pharm. 2019,
13, 100158.
[Google Scholar]
148.
Pfister DP, Xia Y, Larock RC. Recent Advances in Vegetable Oil-Based Polyurethanes.
ChemSusChem 2011,
4, 703–717.
[Google Scholar]
149.
Dinu R, Pidvoronia A, Lafont U, Damiano O, Mija A. High performance, recyclable and sustainable by design natural polyphenol-based epoxy polyester thermosets.
Green Chem. 2023,
25, 2327–2337.
[Google Scholar]
150.
Abd El-Wahab H, Abd El-Fattah M, Ghazy MBM. Synthesis and characterization of new modified anti-corrosive polyesteramide resins incorporated pyromellitimide ring for surface coating.
Prog. Org. Coat. 2011,
72, 353–359.
[Google Scholar]
151.
Palaskar DV, Boyer A, Cloutet E, Alfos C, Cramail H. Synthesis of Biobased Polyurethane from Oleic and Ricinoleic Acids as the Renewable Resources via the AB-Type Self-Condensation Approach.
Biomacromolecules 2010,
11, 1202–1211.
[Google Scholar]
152.
Tran TN, Di Mauro C, Malburet S, Graillot A, Mija A. Dual Cross-linking of Epoxidized Linseed Oil with Combined Aliphatic/Aromatic Diacids Containing Dynamic S-S Bonds Generating Recyclable Thermosets.
ACS Appl. Bio Mater. 2020,
3, 7550–7561.
[Google Scholar]
153.
Mutlu H, Meier MAR. Castor oil as a renewable resource for the chemical industry.
Eur. J. Lipid Sci. Technol. 2010,
112, 10–30.
[Google Scholar]
154.
Alteheld A, Feng YK, Kelch S, Lendlein A. Biodegradable, amorphous copolyester-urethane networks having shape-memory properties.
Angew. Chem.-Intl. Edit. 2005,
44, 1188–1192.
[Google Scholar]
155.
Yuan D, Chen Z, Xu C, Chen K, Chen Y. Fully Biobased Shape Memory Material Based on Novel Cocontinuous Structure in Poly(Lactic Acid)/Natural Rubber TPVs Fabricated via Peroxide-Induced Dynamic Vulcanization and in Situ Interfacial Compatibilization.
ACS Sustain. Chem. Eng. 2015,
3, 2856–2865.
[Google Scholar]
156.
Samuel C, Barrau S, Lefebvre J-M, Raquez J-M, Dubois P. Designing Multiple-Shape Memory Polymers with Miscible Polymer Blends: Evidence and Origins of a Triple-Shape Memory Effect for Miscible PLLA/PMMA Blends.
Macromolecules 2014,
47, 6791–6803.
[Google Scholar]
157.
Odent J, Raquez J-M, Samuel C, Barrau S, Enotiadis A, Dubois P, et al. Shape-Memory Behavior of Polylactide/Silica Ionic Hybrids.
Macromolecules 2017,
50, 2896–2905.
[Google Scholar]
158.
Guo B, Chen Y, Lei Y, Zhang L, Zhou WY, Rabie ABM, et al. Biobased Poly(propylene sebacate) as Shape Memory Polymer with Tunable Switching Temperature for Potential Biomedical Applications.
Biomacromolecules 2011,
12, 1312–1321.
[Google Scholar]
159.
Guo W, Kang H, Chen Y, Guo B, Zhang L. Stronger and Faster Degradable Biobased Poly(propylene sebacate) as Shape Memory Polymer by Incorporating Boehmite Nanoplatelets.
ACS Appl. Mater. Interfaces 2012,
4, 4006–4014.
[Google Scholar]
160.
di Mauro C, Thi-Nguyet T, Graillot A, Mija A. Enhancing the Recyclability of a Vegetable Oil-Based Epoxy Thermoset through Initiator Influence.
ACS Sustain. Chem. Eng. 2020,
8, 7690–7700.
[Google Scholar]
161.
Di Mauro C, Malburet S, Genua A, Graillot A, Mija A. Sustainable Series of New Epoxidized Vegetable Oil-Based Thermosets with Chemical Recycling Properties.
Biomacromolecules 2020,
21, 3923–3935.
[Google Scholar]
162.
Li C, Dai J, Liu X, Jiang Y, Ma S, Zhu J. Green Synthesis of a Bio-Based Epoxy Curing Agent from Isosorbide in Aqueous Condition and Shape Memory Properties Investigation of the Cured Resin.
Macromol. Chem. Phys. 2016,
217, 1439–1447.
[Google Scholar]
163.
Liu T, Hao C, Wang L, Li Y, Liu W, Xin J, et al. Eugenol-Derived Biobased Epoxy: Shape Memory, Repairing, and Recyclability.
Macromolecules 2017,
50, 8588–8597.
[Google Scholar]
164.
Miao J-T, Ge M, Wu Y, Chou TY, Wang H, Zheng L, et al. Eugenol-derived reconfigurable high-performance epoxy resin for self-deployable smart 3D structures.
Eur. Polym. J. 2020,
134, 109805.
[Google Scholar]
165.
Feng X, Fan J, Li A, Li G. Biobased Tannic Acid Cross-Linked Epoxy Thermosets with Hierarchical Molecular Structure and Tunable Properties: Damping, Shape Memory, and Recyclability.
ACS Sustain. Chem. Eng. 2020,
8, 874–883.
[Google Scholar]
166.
Wang S, Urban MW. Self-healing polymers.
Nat. Rev. Mater. 2020,
5, 562–583.
[Google Scholar]
167.
Hornat CC, Urban MW. Shape memory effects in self-healing polymers.
Prog. Polym. Sci. 2020,
102, 101208.
[Google Scholar]
168.
Hia IL, Vahedi V, Pasbakhsh P. Self-Healing Polymer Composites: Prospects, Challenges, and Applications.
Polym. Rev. 2016,
56, 225–261.
[Google Scholar]
169.
Shou T, Zhai MY, Wu YW, Wu SZ, Hu SK, Zhao XY, et al. Bio-Based, Recyclable and Self-Healing Polyurethane Composites with High Energy Dissipation and Shape Memory.
Macromol. Rapid Commun. 2022,
43, 2200486.
[Google Scholar]
170.
Zhang GG, Tian CR, Shi JW, Zhang X, Liu J, Tan TW, et al. Mechanically Robust, Self-Repairable, Shape Memory and Recyclable Ionomeric Elastomer Composites with Renewable Lignin via Interfacial Metal-Ligand Interactions.
ACS Appl. Mater. Interfaces 2022,
14, 38216–38227.
[Google Scholar]
171.
Wang F, Wang WT, Zhang C, Tang JN, Zeng XR, Wan XJ. Scalable manufactured bio-based polymer nanocomposite with instantaneous near-infrared light-actuated targeted shape memory and remote-controlled accurate self-healing.
Compos. Pt. B-Eng. 2021,
219, 108927.
[Google Scholar]
172.
Capelot M, Unterlass MM, Tournilhac F, Leibler L. Catalytic Control of the Vitrimer Glass Transition.
ACS Macro Lett. 2012,
1, 789–792.
[Google Scholar]
173.
Kloxin CJ, Scott TF, Adzima BJ, Bowman CN. Covalent Adaptable Networks (CANS): A Unique Paradigm in Cross-Linked Polymers.
Macromolecules 2010,
43, 2643–2653.
[Google Scholar]
174.
Feng ZB, Hu J, Zuo HL, Ning NY, Zhang LQ, Yu B, et al. Photothermal-Induced Self-Healable and Reconfigurable Shape Memory Bio-Based Elastomer with Recyclable Ability.
ACS Appl. Mater. Interfaces 2019,
11, 1469–1479.
[Google Scholar]
175.
Yang XX, Guo LZ, Xu X, Shang SB, Liu H. A fully bio-based epoxy vitrimer: Self-healing, triple-shape memory and reprocessing triggered by dynamic covalent bond exchange.
Mater. Des. 2020,
186, 108248.
[Google Scholar]
176.
Qi X, Pan CL, Zhang LQ, Yue DM. Bio-Based, Self-Healing, Recyclable, Reconfigurable Multifunctional Polymers with Both One-Way and Two-Way Shape Memory Properties.
ACS Appl. Mater. Interfaces 2023,
15, 3497–3506.
[Google Scholar]
177.
Liu Y, Zhang ZT, Wang JC, Xie TL, Sun LY, Yang KF, et al. Renewable tannic acid based self-healing polyurethane with dynamic phenol-carbamate network: Simultaneously showing robust mechanical properties, reprocessing ability and shape memory.
Polymer 2021,
228, 123860.
[Google Scholar]
178.
Qi X, Yang G, Jing M, Fu Q, Chiu F-C. Microfibrillated cellulose-reinforced bio-based poly(propylene carbonate) with dual shape memory and self-healing properties.
J. Mater. Chem. A 2014,
2, 20393–20401.
[Google Scholar]
179.
Rodriguez ED, Luo XF, Mather PT. Linear/Network Poly(epsilon-caprolactone) Blends Exhibiting Shape Memory Assisted Self-Healing (SMASH).
ACS Appl. Mater. Interfaces 2011,
3, 152–161.
[Google Scholar]
180.
Lu C, Liu Y, Liu X, Wang C, Wang J, Chu F. Sustainable Multiple- and Multistimulus-Shape-Memory and Self-Healing Elastomers with Semi-interpenetrating Network Derived from Biomass via Bulk Radical Polymerization.
ACS Sustain. Chem. Eng. 2018,
6, 6527–6535.
[Google Scholar]
181.
Tibbits S. 4D Printing: Multi‐Material Shape Change.
Archit. Des. 2014,
84, 116–121.
[Google Scholar]
182.
Tan LJ, Zhu W, Zhou K. Recent Progress on Polymer Materials for Additive Manufacturing.
Adv. Funct. Mater. 2020,
30, 2003062.
[Google Scholar]
183.
Ryan KR, Down MP, Banks CE. Future of additive manufacturing: Overview of 4D and 3D printed smart and advanced materials and their applications.
Chem. Eng. J. 2021,
403, 126162.
[Google Scholar]
184.
Zhao W, Yue C, Liu L, Liu Y, Leng J. Research Progress of Shape Memory Polymer and 4D Printing in Biomedical Application.
Adv. Healthc. Mater. 2022,
12, 2201975.
[Google Scholar]
185.
Li Y, Zhang F, Liu Y, Leng J. 4D printed shape memory polymers and their structures for biomedical applications.
Sci. China-Technol. Sci. 2020,
63, 545–560.
[Google Scholar]
186.
Zhang C, Cai D, Liao P, Su J-W, Deng H, Vardhanabhuti B, et al. 4D Printing of shape-memory polymeric scaffolds for adaptive biomedical implantation.
Acta Biomater. 2021,
122, 101–110.
[Google Scholar]
187.
Hu X, Zhao W, Zhang Z, Xie J, He J, Cao J, et al. Novel 3D printed shape-memory PLLA-TMC/GA-TMC scaffolds for bone tissue engineering with the improved mechanical properties and degradability.
Chin. Chem. Lett. 2023,
34, 107451.
[Google Scholar]
188.
Zarek M, Layani M, Cooperstein I, Sachyani E, Cohn D, Magdassi S. 3D Printing of Shape Memory Polymers for Flexible Electronic Devices.
Adv. Mater. 2016,
28, 4449.
[Google Scholar]
189.
Lu X, Zhang H, Fei G, Yu B, Tong X, Xia H, et al. Liquid-Crystalline Dynamic Networks Doped with Gold Nanorods Showing Enhanced Photocontrol of Actuation.
Adv. Mater. 2018,
30, 1706597.
[Google Scholar]
190.
Liu R, Kuang X, Deng J, Wang Y-C, Wang AC, Ding W, et al. Shape Memory Polymers for Body Motion Energy Harvesting and Self-Powered Mechanosensing.
Adv. Mater. 2018,
30, 1705195.
[Google Scholar]
191.
Akbari S, Sakhaei AH, Kowsari K, Yang B, Serjouei A, Zhang Y, et al. Enhanced multimaterial 4D printing with active hinges.
Smart Mater. Struct. 2018,
27, 065027.
[Google Scholar]
192.
Hua D, Zhang X, Ji Z, Yan C, Yu B, Li Y, et al. 3D printing of shape changing composites for constructing flexible paper-based photothermal bilayer actuators.
J. Mater. Chem. C 2018,
6, 2123–2131.
[Google Scholar]
193.
Song M, Liu X, Yue H, Li S, Guo J. 4D printing of PLA/PCL-based bio-polyurethane via moderate cross-linking to adjust the microphase separation.
Polymer 2022,
256, 125190.
[Google Scholar]
194.
Wu D, Leng Y-M, Fan C-J, Xu Z-Y, Li L, Shi L-Y, et al. 4D Printing of a Fully Biobased Shape Memory Copolyester via a UV-Assisted FDM Strategy.
ACS Sustain. Chem. Eng. 2022,
10, 6304–6312.
[Google Scholar]
195.
Wang X, He Y, Liu Y, Leng J. Advances in shape memory polymers: Remote actuation, multi-stimuli control, 4D printing and prospective applications.
Mater. Sci. Eng. R-Rep. 2022,
151, 100702.
[Google Scholar]
196.
Muthe LP, Pickering K, Gauss C. A Review of 3D/4D Printing of Poly-Lactic Acid Composites with Bio-Derived Reinforcements. Compos.
Part C Open Access 2022,
8, 100271.
[Google Scholar]
197.
Lin C, Lv J, Li Y, Zhang F, Li J, Liu Y, et al. 4D-Printed Biodegradable and Remotely Controllable Shape Memory Occlusion Devices.
Adv. Funct. Mater. 2019,
29, 1906569.
[Google Scholar]
198.
Zhao W, Zhang F, Leng J, Liu Y. Personalized 4D printing of bioinspired tracheal scaffold concept based on magnetic stimulated shape memory composites.
Compos. Sci. Technol. 2019,
184, 107866.
[Google Scholar]
199.
Miao S, Zhu W, Castro NJ, Leng J, Zhang LG. Four-Dimensional Printing Hierarchy Scaffolds with Highly Biocompatible Smart Polymers for Tissue Engineering Applications.
Tissue Eng. Part C-Methods 2016,
22, 952–963.
[Google Scholar]
200.
Miao S, Zhu W, Castro NJ, Nowicki M, Zhou X, Cui H, et al. 4D printing smart biomedical scaffolds with novel soybean oil epoxidized acrylate.
Sci. Rep. 2016,
6, 27226.
[Google Scholar]
201.
Lin C, Liu L, Liu Y, Leng J. 4D printing of shape memory polybutylene succinate/polylactic acid (PBS/PLA) and its potential applications.
Compos. Struct. 2022,
279, 114729.
[Google Scholar]
