Increasing Nutritional Value of Cyanobacteria by Engineering Valine, Phenylalanine, and Fatty Acid Production

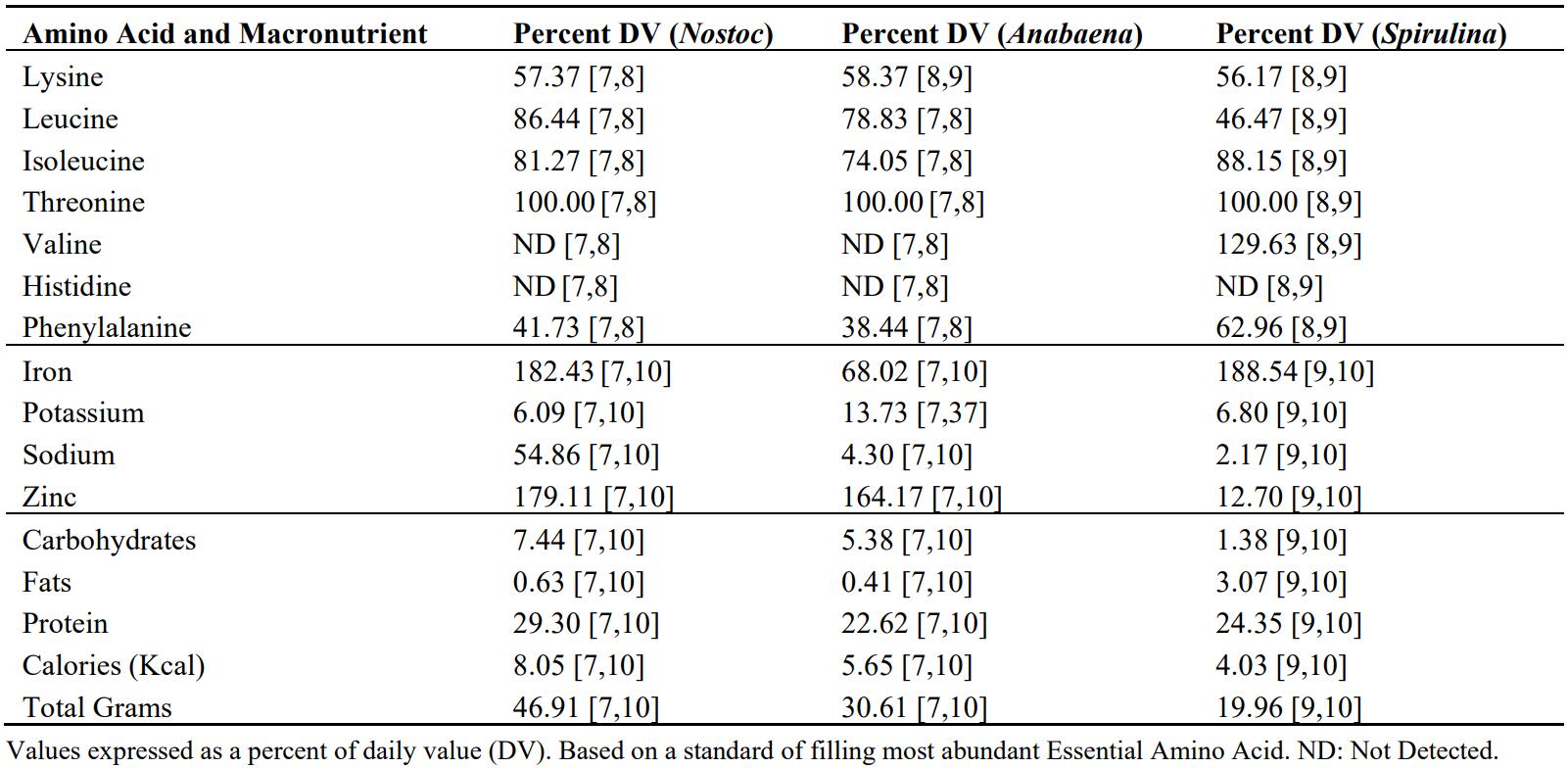

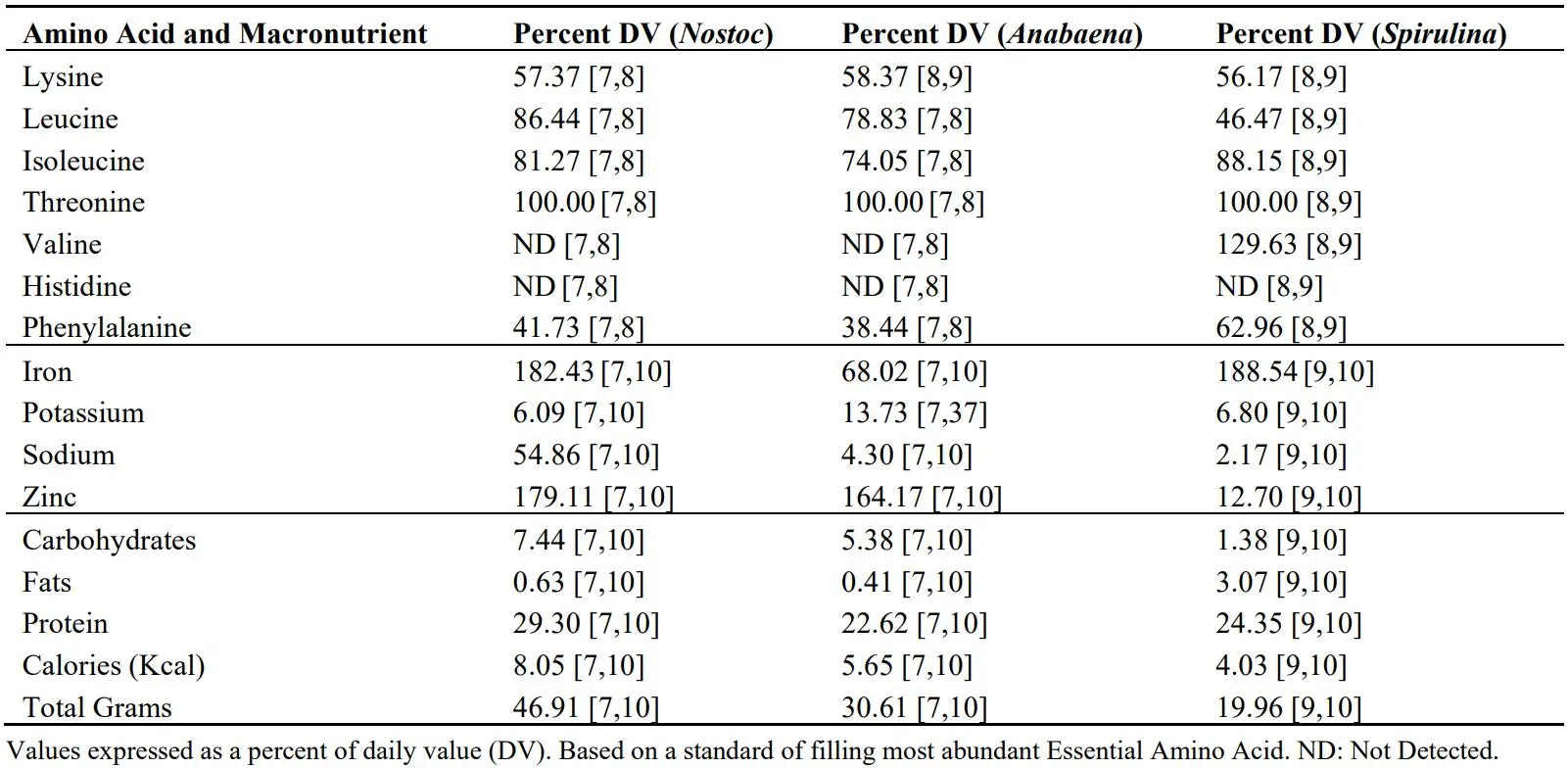

The essential amino acids L-valine and L-phenylalanine along with fat content are disproportionately low in the native macro- and micro-nutrient content of *Nostoc*, *Anabaena*, and *Spirulina* and will be the focus of this review. Mechanisms for increasing the synthesis of these nutrients have been studied for varying purposes in other organisms and can potentially be utilized to increase the nutrient content in these photosynthetic microorganisms. An overview of the metabolic pathways and branchpoints for the production of L-valine, L-phenylalanine, and fatty acids are shown in Figure 1 with key genes targeted by metabolic engineering highlighted.*3.1. Valine Synthesis* L-valine is noted as one of the limiting essential amino acids in livestock feed and is naturally present in low quantities in photosynthetic microorganisms. Metabolic engineering approaches have sought to increase the production of L-valine with much of the work occurring in Corynebacterium glutamicum and *Escherichia coli*. Typically, the approaches to increasing L-valine production have included combinations of gene deletions to remove competing pathways, overexpression to increase activity through key pathways, increasing precursor and co-factor pools, and manipulating regulatory interactions. Early efforts to over-produce L-valine in *E. coli* demonstrated the approach of increasing the pyruvate pool, overexpressing genes of the L-valine synthesis pathway, and targeting global regulation. This approach was achieved by deleting *ilvA* to increase the pyruvate pool, overexpressing *ilvBN* and *ilvCED* to increase L-valine production, and overexpression of the global regulator *lrp*. When grown in fed-batch cultures, the engineering strain of *E. coli* was able to produce 60.7 g/L L-valine [11]. Building upon this blueprint for increasing L-valine production, additional work has been done to reduce feedback inhibition of bottleneck synthesis enzymes (acetohydroxy acid synthase) by heterologous expression of homologues while adding a new design component of balancing co-factor regeneration of NADH for use in L-valine synthesis. This combined approach was able to produce up to 84 g/L L-valine [17]. An example approach implemented in *C. glutamicum* created an engineered strain with three gene deletions (*aceE*, *alaT*, *ilvA*) to remove competing pathways that would drain the precursor pyruvate (*aceE* and *alaT*) or lead to the production of isoleucine via L-threonine (*ilvA*), overexpression of genes for production of L-valine (*ilvB*, *ilvN*, *ilvC*), and overexpression of the global regulator *lrp* produced up to 51 g/L L-valine in fed-batch cultures [12]. The importance of maintaining or increasing the pyruvate precursor pool has been a particular focus and high L-valine producing strain of *C. glutamicum* was used to analyze additional mechanisms that could be used to maintain the pyruvate pool. Through metabolomic analysis, it was found that a high pyruvate pool was maintained by reducing intracellular levels of methionine, aspartic acid, isoleucine, and glycine along with lower levels of alanine and TCA cycle intermediates [18]. Targeting these pathways might provide additional avenues for maintaining pyruvate levels and could be coupled with the overexpression of genes along the L-valine catabolic pathway (*ilvB*, *ilvN*, *ilvC*). *3.2. Phenylalanine Synthesis* L-phenylalanine has been a target for biological production for its variety of uses in the food industry (human and livestock) and as a precursor for a number of high-value chemical products, including pharmaceuticals. As with L-valine production, much of the research has been done in model organisms, especially *E. coli*. When considering L-phenylalanine synthesis, the first pass approaches typically consider: (1) increasing the precursor pools of phosphoenolpyruvate (PEP) and erythrose 4-phosphate (E4P), (2) removing regulatory inhibition to production (*tyrR* and *trpR*), and (3) overexpressing rat-limiting genes (*aroFGH*). Due to L-phenylalanine synthesis requiring precursors from two areas of central metabolism (pentose phosphate and glycolysis), approaches to increasing the precursor pool need to be multi-faceted [19]. E4P availability is typically addressed by increasing the expression of transketolase (*tktA*) and transaldolase (*talB*) necessary for E4P synthesis. Additionally, carbon flux can be diverted into the pentose phosphate pathway by restricting glycolysis (e.g., disrupting phosphoglucose isomerase, *pgi*), but this also would affect the production of PEP. Intracellular PEP pools are typically manipulated by: (1) inhibiting/removing downstream drains, (2) removing alternative consumption of PEP in the PTS transport system, and (3) addressing the regulation of the PEP pool. Inactivation of pyruvate kinase (*pykF*) or phosphoenolpyruvate carboxylase (*ppc*) has been used to limit the conversion of PEP to pyruvate or oxaloacetate, respectively. While this approach could increase PEP availability, it will also restrict intracellular resources by affecting the TCA cycle, so another approach that has been utilized is to overexpress phosphoenolpyruvate synthetase (*ppsA*) to increase the regeneration of PEP from pyruvate. During glucose uptake in *E. coli*, the PTS transport system utilizes approximately 50% of the intracellular PEP [13] so while the approach of targeting the PTS system is important in *E. coli*, it will not be important to address for a photosynthetic organism. Finally, the intracellular pool of PEP in *E. coli* is regulated by the CsrA regulatory protein. Increases in the intracellular PEP pool have been achieved either by deleting *csrA* [20] or increasing the expression of *csrB* which has a negative regulatory interaction with *csrA* [21]. With the variety of uses of L-phenylalanine, some work has begun to engineer photosynthetic microorganisms for L-phenylalanine overproduction. One notable study used the heterologous expression of three *E. coli* genes in *Synechocystis* PCC6803 to increase the production of L-phenylalanine (and L-tyrosine). The *E. coli* phosphoenolpyruvate synthetase gene (*ppsA*) was used to increase PEP production from pyruvate and the *aroG* and *tyrA* genes were used to increase flux through the amino acid synthesis pathways resulting in an L-phenylalanine titer of 580 mg/L [14]. *3.3. Fatty Acid Synthesis* While much of the synthetic design and engineering for the production of L-valine and L-phenylalanine have been done in *E. coli* and *C. glutamicum*, fatty acid/lipid overproduction has largely progressed in yeast and algae. Much of the early metabolic engineering for fatty acid production was started in *Saccharomyces cerevisiae* largely due to the established knowledge base and availability of genetic engineering tools. One of the advantages of using *S. cerevisiae* is that the conversion of malonyl-CoA and acetyl-CoA to long-chain fatty acids (C16/C18) involves the fatty acid synthase complex that is composed of only two genes (*fas1*, *fas2*) as compared to other organisms that may have a larger number of genes (10 for *Escherichia coli*) making overexpression of the entire complex easier [16]. By using the approach of overexpressing the key catabolic genes (*acc*, *fas1*, *fas2*) a four-fold increase in fatty acid content was achieved in *S. cerevisiae* [15]. Given the recursive nature of the synthesis of fatty acids, one study that applied a variety of synthetic biology techniques to engineering very long-chain fatty acids in *S. cerevisiae* utilized a combination of heterologous expression and dynamic control to selectively produce the fatty alcohol docosanol (C₂₂H₄₆O) [22]. While the native *S. cerevisiae* fatty acid synthase complex produces C16/C18 fatty acids, very long chain fatty acids (C22/C24) were produced by using the compatible FasI system from *Mycobacterium vaccae*. The *M. vaccae* gene, *mvfas*, was successfully expressed as a fusion protein with an acyl carrier protein synthase (*acps*) in a fatty acid auxotroph of *S. cerevisiae*. Additionally, the terminal enzyme for production was selected to be the acyl-CoA reductase from *Arabidopsis thaliana* and dynamic control of expression was achieved to segregate biomass production from fatty acid synthesis by testing different carbon-source responsive promoters (high glucose vs. high ethanol). Using these combined approaches allowed the selective production of C22 fatty acids at an amount of 83.5 mg/L [22]. In terms of platform organisms for producing fatty acids, oleaginous yeasts may be one of the most logical choices for development due to their natural high acetyl-CoA flux and ability to sequester fatty acids/oils. In particular, *Yarrowia lipolytica*, has been a targeted oleaginous yeast for the production of oleochemicals. One of the attributes of *Y. lipolytica* that make it attractive as a host for lipid synthesis is that it effectively sequesters oils in lipid inclusion bodies and achieves lipid content up to 40% of its cell dry weight [23]. Some of the foundational work on *Y. lipolytica* began with using a multiplex, combinatorial approach to screen different engineered genotypes finding that a *pex10*, *mfe1*, leucine+, uracil+, DGA1p overexpression genotype produced lipid titer of 6.00 g/L with lipid content of 74% of cell dry weight [24]. A follow-up study focused on improving understanding of the native fatty acid synthesis pathways and rewiring the pathways to decouple fatty acid synthesis from metabolic constraints (i.e., lipid synthesis during nitrogen starvation) achieving a lipid titer of 66.4 g/L [25]. Further development of *Yarrowia lipolytica* for fatty acid synthesis has been enabled through the development of a variety of synthetic biology tools (promoter characterization, CRISPR/Cas9, efficient transformation, marker recycling) [23,26]. Improvements in lipid content have been achieved by utilizing heterologous expression of key genes such as overexpression of *dga1* from *Rhodosporidium toruloides* and *dga2* from *Claviceps purpurea* that produced a strain with 77% lipid content [27]. Other research has been conducted to increase the acetyl-CoA pool by developing alternative mechanisms for acetyl-CoA generation including expression of the peroxisomal carnitine acetyltransferase (*perCAT2*) from *Saccharomyces cerevisiae* (produced 66.4 g/L lipids) [25] and heterologous expression of phosphoketolase (*xpkA*) and acetate kinase (*ack*) for conversion of xylose to acetate with the acetate being converted to acetyl-CoA by acetyl-CoA synthetase (*acs*), resulting in 67% lipid content [28]. In addition to increasing the acetyl-CoA pool, it was found that NADPH would limit the activity of the fatty acid synthase complex resulting in multiple approaches to convert glycolytic NADH to cytosolic NADPH for lipid synthesis with the best results producing a strain with 99 g/L lipid titer at 67% lipid content [29]. In addition to research using *S. cerevisiae* and *Y. lipolytica*, interest in using microalgae for fatty acid synthesis was spurred in part by the prospect of a sustainable process for biodiesel production. In microalgae, two main mechanisms exist for fatty acid synthesis, fatty acid synthase (FAS) and triacylglycerol (TAG) synthesis. The fatty acid synthase pathway for lipid synthesis is similar to the synthesis pathways in yeast described above with an acetyl-CoA carboxylase (*acc*) gene responsible for the conversion of acetyl CoA to malonyl CoA and downstream elongation to C16/C18 fatty acids. Interestingly, in microalgae, overexpression of *acc* did not increase fatty acid production and was not a limiting step [16]. Instead, the downstream step of transferring malonyl CoA to the acyl carrier protein (ACP) to form malonyl CoA-ACP by the malonyl CoA-ACP transacylase was found to increase lipid production in both *Nannochloropsis* [30] and *Schizochytrium* [31]. Work in microalgae on the triacylglyceride synthesis pathway has made steady progress in improving lipid yields. Systematically, it has been demonstrated that overexpression of genes along the pathway to convert acyl CoA/acyl ACP to triacylglycerides has improved lipid production. Overexpression of glycerol-*sn*-3 phosphate acyl-transferase (GPAT) for conversion of glycerol-3-phosphate to lysophosphatidate improved lipid production in *Chlamydomonas reinhardtii* (50% TAG content per cell dry weight) [32] and *Phaeodactylum triornuum* (43% TAGE content per cell dry weight) [33]. Overexpression of lysophosphatidate acyl-transferas (LPAAT) showed 20% increase lipid content in *Chlamydomonas reinhardtii* [34]. The final step in triacylglyceride synthesis involves diacylglycerol acyltransferase (DGAT) and is thought to be the rate-limiting step. Overexpression of DGAT has been demonstrated to increase TAG content in various microalgae including *Phaeodactylum tricornutum* [35], *Nannochloropsis salina* [36], and *Nannochloropsis oceanica* [37].
