Transparent, Hydrolysable and Flame Retarded Bio-based Epoxy Resins via Catalyst-free Polymerization of Triglycidyl Isocyanurate and Aliphatic Diacids

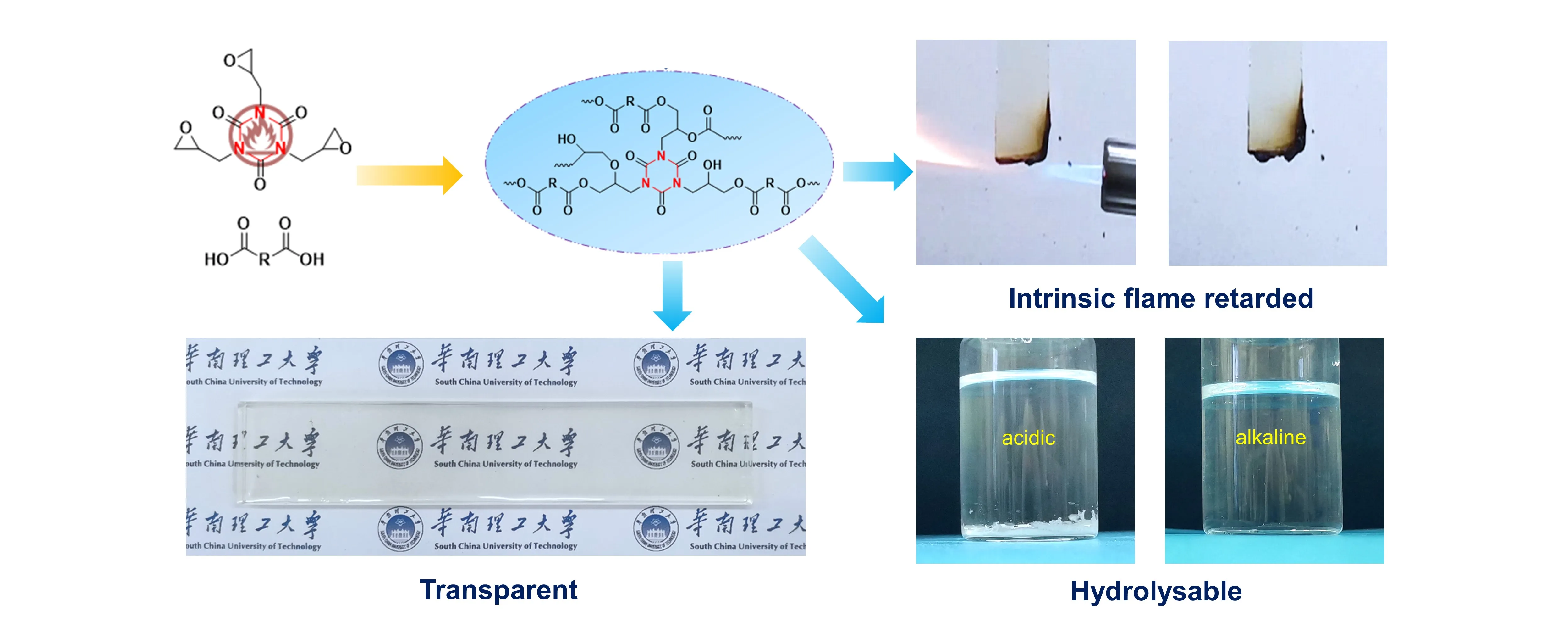

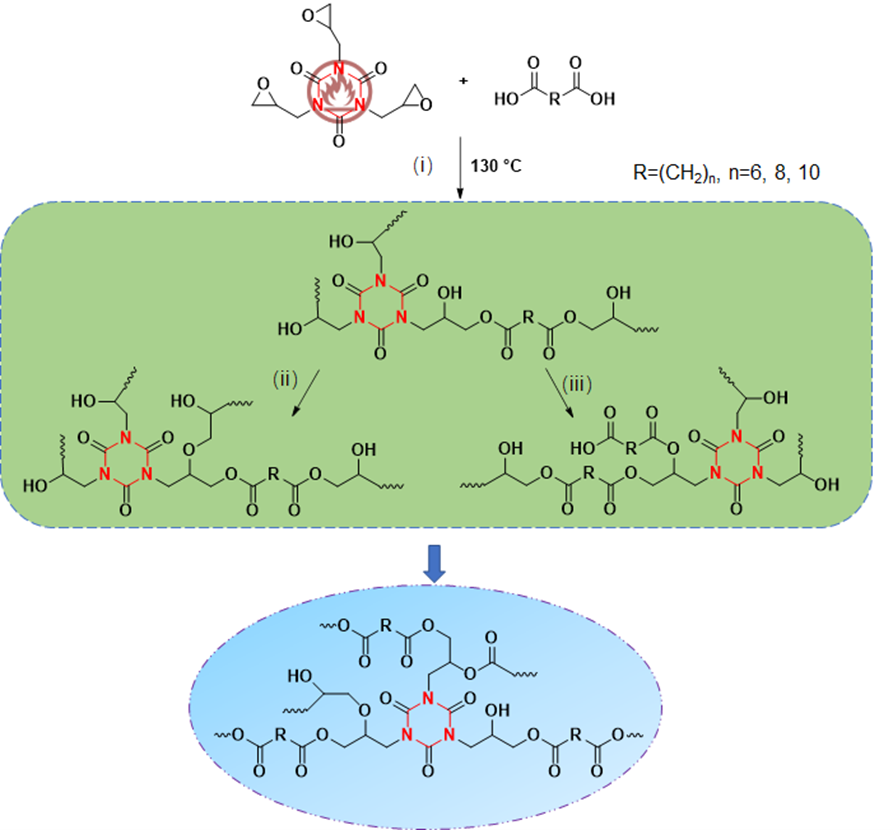

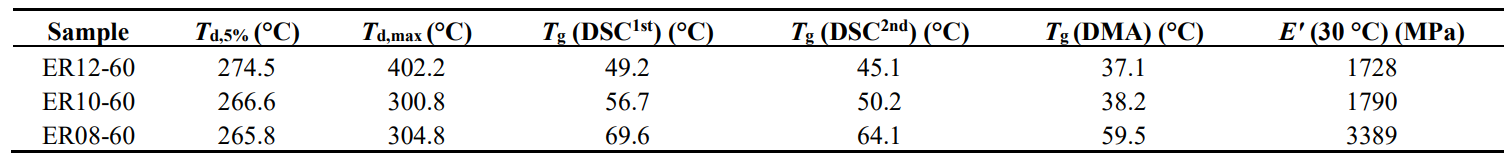

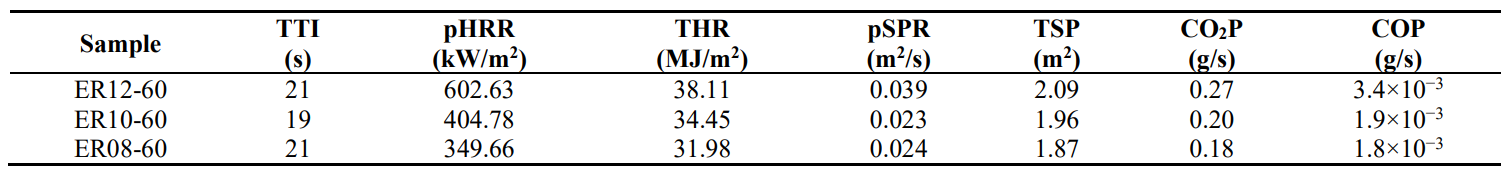

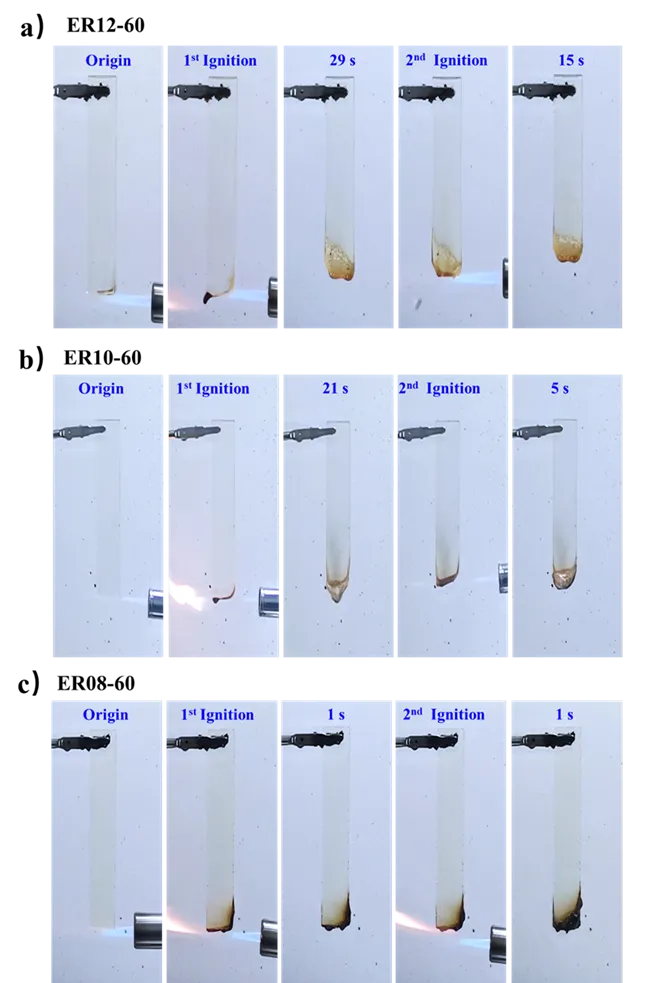

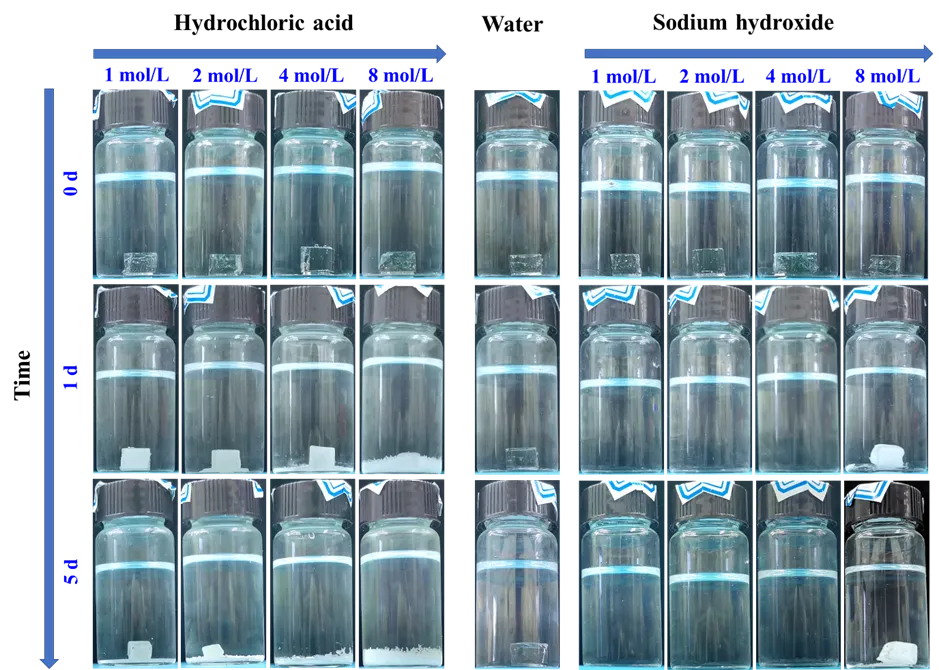

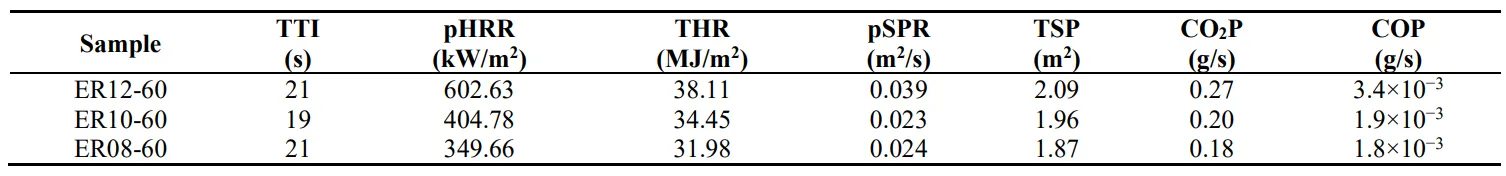

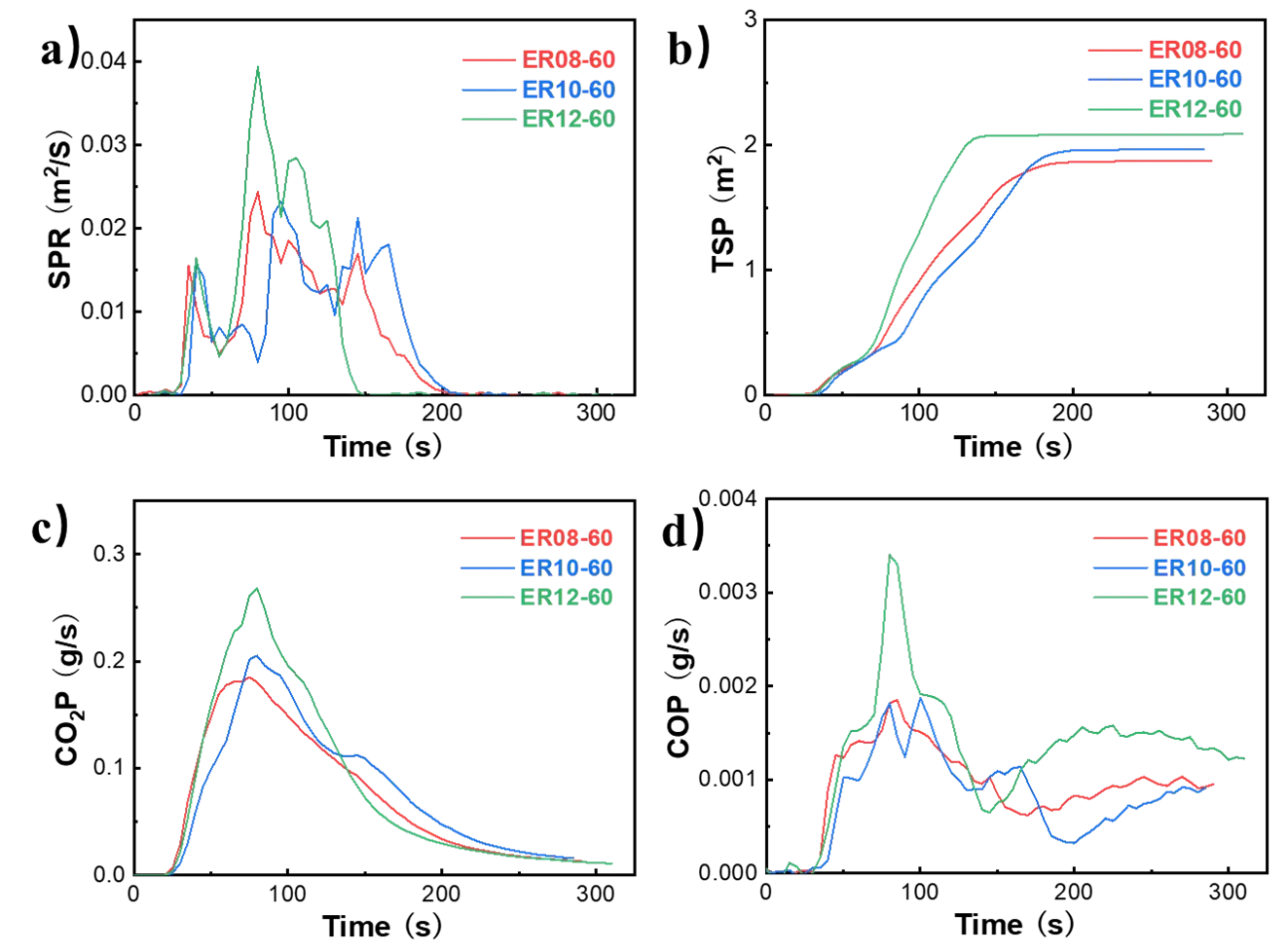

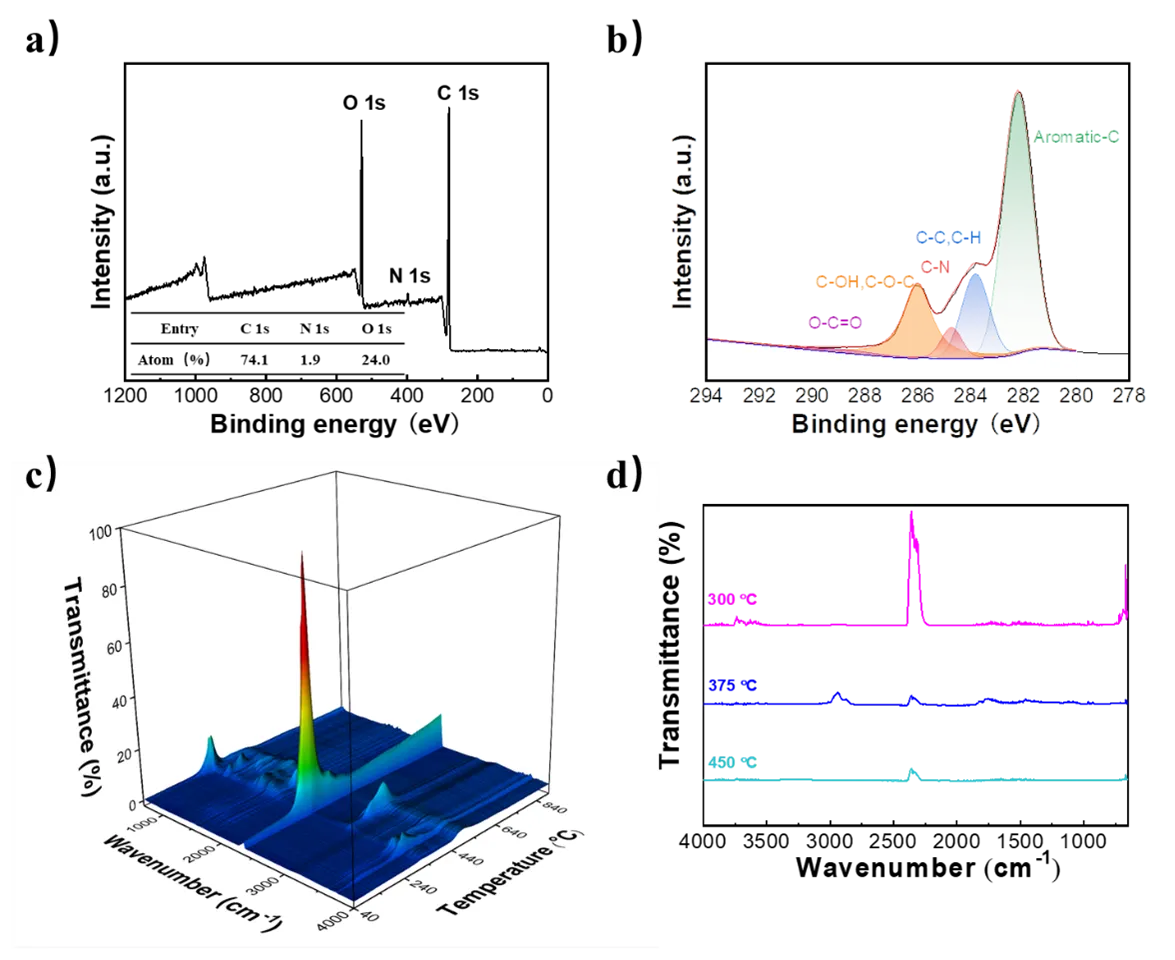

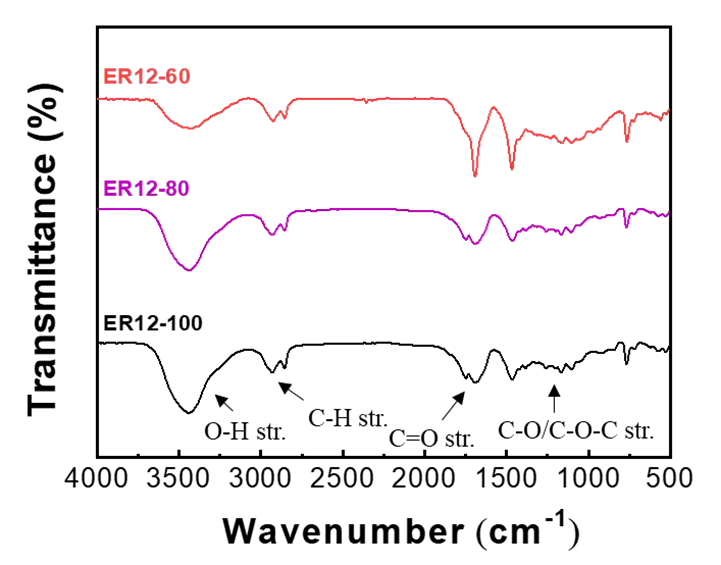

*3.1. Synthesis of ERs* ERs based on TGIC and DAs were prepared by melting polymerization, without any catalysts (see Scheme 1). The DAs used in this study were DA12, DA10 and DA08 so that the products were nominated as ER12-xx, ER10-xx and ER08-xx, respectively (xx: the percentage of the feed ratio of [COOH]/[epoxy]). The melting point of TGIC is around 100 °C, while that of DA is around or even above 130 °C. In this case, the reactant mixtures cannot fully melt when the reaction temperature is lower than 130 °C. But if the temperature is higher than 130 °C, the reaction between TGIC and DA runs so fast that there would be no sufficient time for molding. Therefore, the reaction temperature was set at 130 °C. Not only ring-opening reaction but also transesterification takes place in the curing process between TGIC and DAs [29], as shown in Scheme 1. Both hydroxyl and ester groups generate when the carboxyl group reacts with epoxy group (reaction (i)) and the hydroxyl groups obtained are involved in the esterification and etherification (reactions (ii) and (iii)). In this case, the feed ratio of [COOH]/[epoxy] is an important factor that affects the properties (such as flame retardancy, mechanical properties, etc.) of the final products. The feed ratio of [COOH]/[epoxy] was varied (100%, 80%, and 60%) in the series of ER12 and the samples were designated as ER12-100, ER12-80, and ER12-60, respectively (see Table 1). DA12, DA10 and DA08 are able to melt with TGIC at 130 °C to form clear liquid and the ERs obtained after curation are optically transparent (see Figure S1).*3.2. Effect of Feed Ratio of [COOH]/[epoxy] on the Structure and the Properties of ERs* The FT-IR spectra of the ER12-xx samples with different feed ratio of [COOH]/[epoxy] are shown in Figure 1. The broad absorption band between 3700 and 3200 cm⁻¹ was related to formed hydroxyl groups (–OH) and the band at 1740 cm⁻¹ was related to the C=O stretching of the obtained ester groups from the ring-opening reaction of epoxy and carboxyl groups and the esterification of hydroxyl and carboxyl groups [29,30]. The two peaks at 2924 and 2852 cm⁻¹ corresponded to the asymmetrical and symmetrical C–H stretching of the aliphatic methylene groups while the signal at 1462 cm⁻¹ corresponded to the C–N stretching. The peak at 1689 cm⁻¹ was related to the C=O stretching signal of isocyanurate group, while the C=O stretching of the ester groups was identified with the absorption peak at 1699 cm⁻¹. The bands between 1242 and 1064 cm⁻¹ corresponded to the C–O and C–O–C vibrations of ester, ether, and alcohol, proving the occurrence of esterification. For ER12-60, the peaks at 1689 cm⁻¹ and 1646 cm⁻¹ were much sharper which is understandable due to the increased amount of isocyanuate segment. The introduction of isocyanurate ring offers flame retardancy for ERs, and thus the content of isocyanurate ring structure in the obtained ERs determines the flame retardancy. As shown in Table 1, Table S1 and Figure S2, the flame retardancy of ER12-60 is much better than that of ER12-100, ER12-80 and ER12-70. But as the feed ratio of [COOH]/[epoxy] decreased to 0.5, ER12-50 losed flame retardancy. Therefore, the feed ratio of [COOH]/[epoxy] was fixed at 0.6 in the next step of research on the effect of chain length of DAs. *3.3. Effect of Chain Length of DAs on Properties of ERs* Different DAs with different chain length (DA08, DA10 and DA12) were applied to react with TGIC with the same feed ratio of [COOH]/[epoxy] at 0.6 in the synthesis of ERs, and the products were nominated as ER08-60, ER10-60 and ER12-60, respectively. The TGA and DTG curves of the obtained ERs are shown in Figure 2 and the detailed data are summarized in Table 2. The initial decomposition temperatures (*T*_d,5%) of all the samples were similarly around 270 °C, indicating that these ERs have similar initial thermal stability, regardless of the chain length of DAs. The decomposition of ERs follows a three-stage process, including the decomposition of isocyanurate ring at 300 °C, the pyrolysis of carbon chains and eventually the pyrolysis of carbon residue. The higher second-step decomposition temperature for ER12-60 is understandable due to the longer methylene group [18,31]. As shown in Figure 2c and Table 2, the glass transition temperature (T_g) of ERs increases with the shortening of chain length of DAs, from 45.1 °C for ER12-60 to 64.1 °C for ER08-60. The movement of the network segments is more restricted when the chain length is shorter, resulting in a higher value of T_g. Dynamic thermomechanical properties of ERs were studied via DMA and the curves are shown in Figure 2d. The storage modulus at 30 °C [E' (30 °C)] of ER12-60 and ER10-60 were 1728 and 1790 MPa, while that of ER08-60 improved greatly to 3389 MPa with the decline of chain length of DA. This means that ERs performs well in normal temperature ranges. Moreover, similarly to the DSC results, there was a considerable increase in T_g value determined by the tangent method, along with the decrease of chain length of DA.The flame retardancy of the ERs was investigated by UL-94 vertical burning test and limit oxygen index (LOI) examination, and the results were listed in Table S1. As we can see from Figure 3a, it took 29 s for ER12-60 to self-extinguish after the first ignition but the self-extinguishing time decreased to 15 s in the recombustion. The UL-94 rating for ER12-60 achieved V-1, with droplets produced throughout the test not igniting the cotton below. The limited oxygen index (LOI) value for ER12-60 was measured to be 23.5%. The flame retardancy performance of ER12-60 was similar to that of ER12-60. The UL-94 rating for ER10-60 also achieved V-1 while the value of LOI was determined to be 24.6%. When comparing the flame retardancy of ER10-60 with ER10-70 and ER10-50, it can be found that the best choice is still ER10-60, which has been confirmed above in the ER12 series. ER08-60 exhibited improved flame retardancy, with a UL-94 rating at V-0 and a LOI value at 27.6% (>27%, nonflammable). Impressively, as shown in Figure 3c, ER08-60 can self-extinguish instantly (<1 s) after the removal of igniter, without melt-dripping. Compared with ER10-70 and ER12-70, the flame retardancy of ER08-70 was slightly weakened, but still reached V-0 rating in the UL-94 vertical burning test. ER08-50 performed much lower flame retardancy as the feed ratio of [COOH]/[epoxy] decreased to 0.5. Cone calorimeter test offers a simulation of fire conditions and it is usually applied in the analysis of the flame retardancy and combustion behaviors of polymer materials. Heat release rate (HRR) and total heat release (THR) are normally taken directly to refer to the flame retardancy. The HRR and THR curve of the obtained ERs are shown in Figure 4a and 4b, respectively, while the relevant data are listed in the Table 3. ER12-60 had an intense exotherm, and the pHRR and THR reached 602.63 kW/m² and 38.11 MJ/m², respectively, which is much less than those of traditional ER_DGEBA-DDM (pHRR = 853.99 kW/m², THR = 133.52 MJ/m²) [5]. When the chain length of DAs reduced, the pHRR and THR values reduced further to 349.66 kW/m² and 31.98 MJ/m² for ER08-60. The results indicated that our ERs have relatively low heat transfer during combustion to exhibit excellent flame retardancy. Practically in fires, most of the victims died from asphyxiation, so it is necessary to assess the smoke emissions and gases production of the obtained ERs. As can be seen in Table 3 and Figure S3, the smoke produce rate (SPR) and the total smoke product (TSP) of all ERs were at a low level. Notably, CO₂ production (see Figure 4c) was high (0.18–0.27 g/s) for all three samples, while the CO production (see Figure 4d) was as low as 1.8 mg/s. The results indicated that these ERs have limited fire hazard.The morphology and the chemical structure of the residual coke after combustion could help for understanding the mechanism in the condensed phase. The SEM images of the ER08-60 residual coke collected after UL-94 test and cone calorimetry test are shown in the Figure 5. After UL-94 test, the coke surface of ER08-60 (see Figure 5a) exhibited smooth expansion and the expanded residual carbon surface was distributed with small bumps, which should be caused by the large amount of gas produced during the combustion process. The expanded residual carbon performed as a ‘barrier’ to protect the substrate from heat and flammable free radicals and therefore combustion is restrained. A complete obturator carbon layer could be observed and many granular protrusions were distributed on the surface of the ER08-60 coke after cone calorimetry test (see Figure 5b). These protrusions were all bubbles. The indications above revealed that ER08-60 produces gas during combustion and the residual coke has the ability to inhibit combustible volatiles, significantly acting as a “barrier” to isolate the substrate from the fire.The chemical composition and state of ER08-60 coke residue after UL-94 test were further analyzed by XPS [11,16,20]. As shown in Figure 6a, elements of C and O can be obviously observed while N element exists in tiny signal. Aromatic carbon, aliphatic C–C and C–H, C–N, C–O–C, C–OH and O–C=O can be found (see Figure 6b). Pyridine nitrogen is thought to be more stable on heat than pyrrole nitrogen and it benefits for the forming of a more stable carbon layer (see Figure S4). All the results indicated that ER08-60 is able to form more aromatized C–C and C–N crosslinked coke upon combustion and in this case, the performance of self-extinguishing and flame retarding can be improved. The gas phase product of ER08-60 was analyzed by TG-IR, and the 3D spectrum is shown in Figure 6c. All volatile pyrolysis products can be distinguished by their typical peak ranges [4]. The band appears at 3400–4000 cm⁻¹ attributed to the absorption vibration peak of H₂O and the highest absorption peak at 2450 cm⁻¹ indicates the release of CO₂. The peak at 2950–2915 cm⁻¹ belongs to the symmetric and asymmetric vibration of aliphatic olefin. The peaks of carbonyl compounds relate to 1850–1650 cm⁻¹. The band at 1550–1300 cm⁻¹ can be attributed to the vibration peak of aromatic compounds, while that at 970–900 cm⁻¹ belongs to the vibration peak of NH₃. It is interesting to see from Figure 6d that the decomposition process of ER08-60 is mainly divided into three stages. In the first stage at 300 °C, CO₂, NH₃ and H₂O are found to release, which can be attributed to the decomposition of isocyanurate ring. At 375 °C, the compounds released are mainly CO₂ and carbonyl compounds (such as aliphatic ester or acid), along with aromatic compounds and a small amount of NH3. When the temperature reaches as high as 450 °C, further decomposition takes place to release CO₂. The release of CO₂ can be observed at each stage of the decomposition of ER08-60. Thus, the oxygen surrounding is excluded in the system and the combustion is inhibited. The tensile curves of ERs are shown in Figure S5 while the results of the tensile and bending tests are summarized in Table 4. The tensile and bending properties of the obtained ERs improved with the decrease of the chain length of DAs. For ER08-60, the tensile stress at break (σ_b), the Young’s modulus (E), the bending strength (*σ*_t), the bending modulus (*E*_f) and the elongation at break (*ε*_t) were 86.6 MPa, 1628 MPa, 75.4 MPa, 1711 MPa and 22%, respectively. The values of *σ*_b for ER10-60 and ER12-60 decreased to 62.3 and 32.4 MPa, respectively. The crosslinking density of ERs can also be calculated from the tensile curves, via Equation (1) [32,33].where E is the Young’s modulus detected from tensile test, T is the absolute temperature for tensile test, R is the ideal gas constant (8.314 J/mol K), V_e is the crosslinking density. V_e values calculated via Eq. (1) are listed in Table 4 and we can see that the crosslinking density increases with the decline of chain length of DAs. As a result, the tensile and bending strength increases accordingly. The rigid isocyanurate structure offers the stiffness while the long methylene structure offers the flexibility, which provides proper mechanical properties for the final products.As it can be seen from Scheme 1 that the backbone of in the obtained ER networks are mainly polyester. Therefore, the products should be hydrolysable, in both acidic and alkaline solutions. ER12-60, ER10-60 and ER08-60 were immersed in water, hydrochloric acid and sodium hydroxide solution with different concentrations. As shown in the Figure 7, ER08-60 could neither decompose nor swell in water for 5 d. However, it broke down into fragments when soaking in hydrochloric acid solution, and the degradation went faster with the increase of hydrochloric acid concentration. Soaked in 1, 2 and 4 mol/L sodium hydroxide solution, ER08-60 degraded within 1 day. The decomposition products dissolved in the solution so that a clear solution could be observed. When the concentration of the solution is further increased to 8 mol/L, it is found that the degradation of this material is not satisfactory. In Figure S6, the ¹H NMR spectra of solution and solid product have proved that DA08 is the insoluble substance and its content in the solid product is more than that in the solution. It is further understandable since the solubility of DA08 in 8 mol/L NaOH solution is poor (see Figure S7).When ER08-60 degrades from the surface, the degradation product DA08 releases and covers on the surface of the bulk, which prevents further permeation of NaOH solution into the bulk. The high concentration of sodium hydroxide may prevent the dissolution of the decomposition products. The hydrolysis of ER12-60 and ER10-60 performs similar to that of ER08-60 (see Figure S8).
