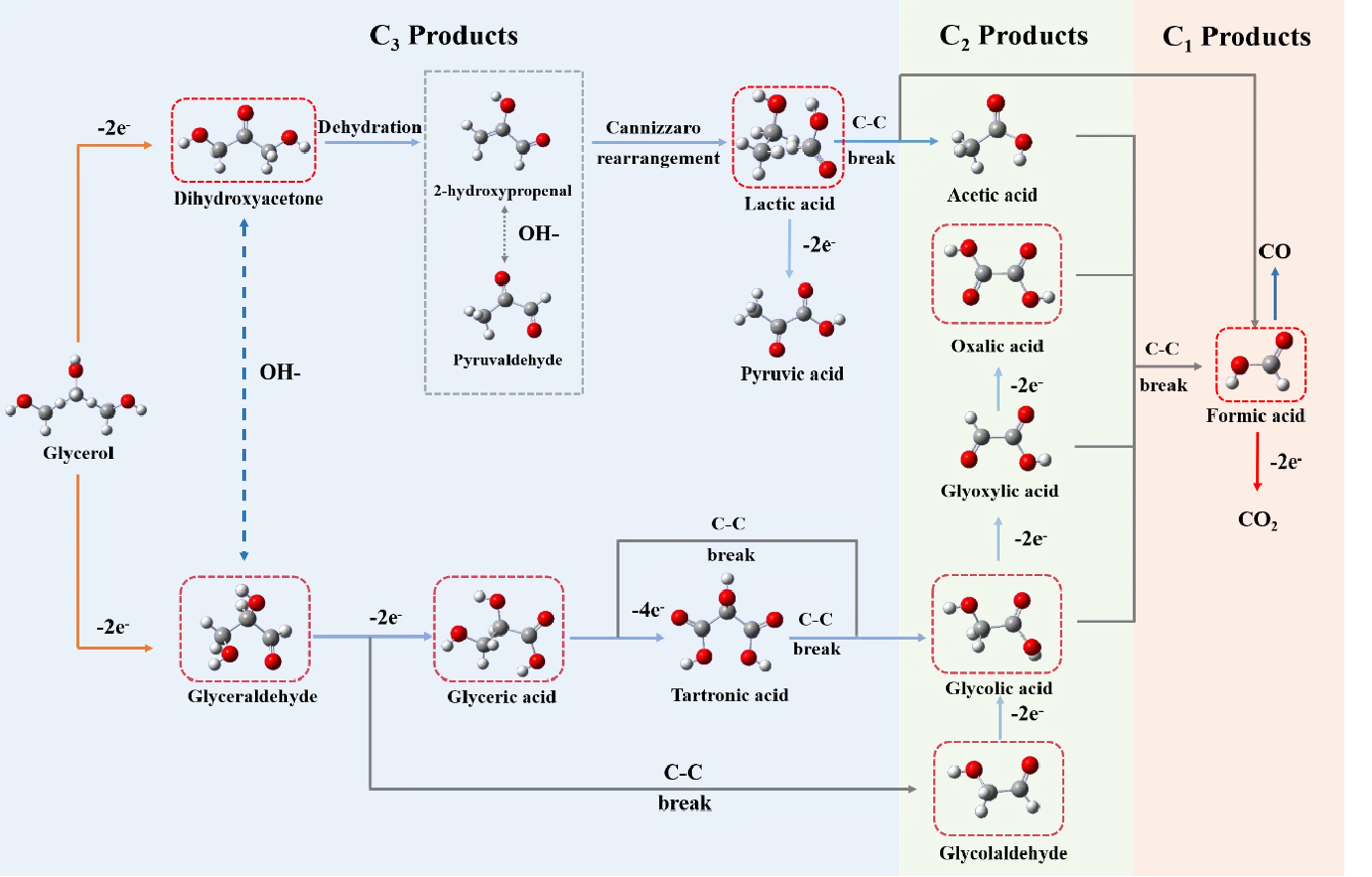

Glycerol oxidation reaction involves complex multielectron transfer processes across multiple reaction pathways, leading to a diverse and intricate product distribution and a low selectivity for targeted GOR products. Selective PEC glycerol oxidation aims to selectively oxidize glycerol into value-added liquid products while simultaneously generating high purity and large quantities of H
2, which relies not only on the catalyst nature but also on how the reaction is conducted. Great efforts such as elemental doping, interface engineering, and surface modification have been made to improve the product selectivity and yield in GOR from various perspectives, such as enhancing adsorption properties, improving electron conduction properties, adjusting the energy band structure, and increasing light absorption [
14,
21,
22,
23,
24]. As displayed in
, the catalyst nature and the reaction conditions, such as the concentration of reactants, the type and pH of electrolyte used, and the mass-transfer conditions, can synergistically influence the overall performance of glycerol oxidation [
25,
26]. In the following, we will introduce the recent progress in view of the product types, considering these factors mainly focusing on the most potential BiVO
4-based, TiO
2-based, and WO
3-based photoanodes.

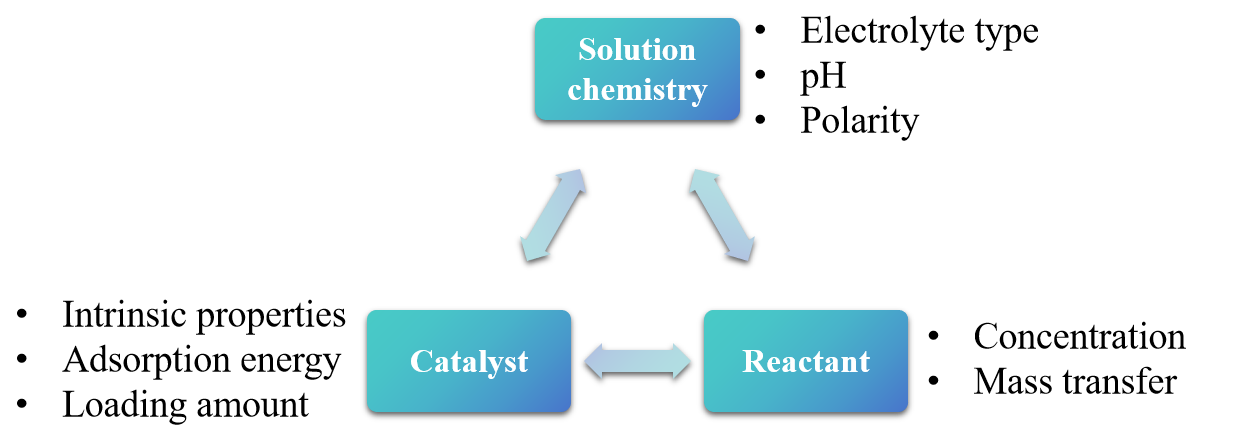

. Dominant influencing factors on glycerol oxidation performance [
26].
3.1. BiVO4-Based Photoanodes
Among various semiconductors, bismuth-based photoanodes are considered one of the most potential photoanode materials for selective PEC oxidation of glycerol.
shows the representative BiVO
4-based photoanodes for the PEC glycerol oxidation. The GOR products based on single BiVO
4 photoanodes can be dominated either by FA or by DHA. The specific dominant product depends on the type of electrolyte solution and its pH value, as well as the electronic structure of the catalyst surface.
.
List of the representative BiVO4-based photoanodes for the PEC glycerol oxidation.
Photoanode |
Electrolyte |
Main Product |
Production Rate
(mmol·m−2·h−1) |
Selectivity (%) |
H2 Production Rate
(mmol·m−2·h−1) |
Ref. |
WO3/BiVO4/Bi |
0.5 M Na2SO4
(pH = 2) |
DHA |
192.69 |
60.60 |
328.8 |
[27] |
BiVO4/CoV-LDHs/Ag |
0.5 M Na2SO4
(pH = 2) |
FA |
54 |
- |
123.5 |
[21] |
BiVO4 |
0.1 M HNO3 |
FA |
436.45 |
78.1 |
333 |
[26] |
BVO/TANF(Ni2+/Fe2+) |
0.1 M Na2SO4
(pH = 2) |
FA |
573 |
85 |
500 |
[28] |
B:NiCoOx/BiVO4 |
0.5 M Na2SO4
(pH = 2) |
FA + DHA |
360.3 (FA)+
228.4 (DHA) |
- |
1290 |
[29] |
BiVO4/CoOx/Au |
0.5 M Na2SO4
(pH = 2) |
DHA |
339.74 |
60 |
- |
[30] |
porous BiVO4 |
0.5 M Na2SO4
(pH = 2) |
DHA |
325.2 |
53.70 |
- |
[31] |
Ta-BiVO4/WO3 |
0.1 M Na2SO4
(with acetone) |
DHA |
- |
100 |
130 |
[7] |
Huang et al. reported GOR over BiVO
4 photoanode with glycerol being oxidized to valuable products of 15% dihydroxyacetone (DHA) and 85% formic acid in a mixed electrolyte solution composed of 0.1 M Na
2B
4O
7 (pH = 9.4) and 0.1 M glycerol under 1 sun illumination [
15]. Liu et al. [
32] investigated the effect of electrolyte pH on the selectivity and production rate of PEC GOR over porous BiVO
4 nanoarrays (
a,b). The selectivity and production rate of DHA reaches ~50% and 200 mmol·m
−2·h
−1 at 1.2 V
vs. RHE at pH = 2 from ~ 30% with pH = 5 and 7, respectively. The results demonstrate that lower pH enables easier glycerol adsorption on BiVO
4, which results in an easier charge transfer and enhanced catalysis to PEC glycerol conversion when reaction pH is decreased. Besides, an acidic environment can also suppress the reaction towards acid products, which leads to a high selectivity of DHA.

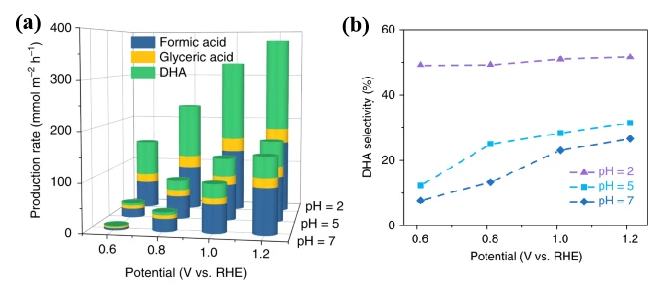

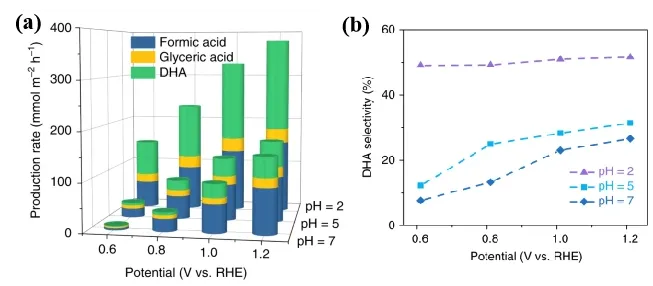

. (<b>a</b>,<b>b</b>) Effect of pH value on the PEC glycerol performance of BiVO
4 potoanode. (<b>a</b>) Rates of GOR products at different pH; (<b>b</b>) Selectivity of DHA at different pH. Reprinted with permission from [
32]. Copyright 2019, Springer Nature.
Further, Cui et al. [
26] investigated the effect of electrolyte type on the performance of PEC glycerol oxidation over BiVO
4 photoanode. It is found that the photocurrent density in H
2SO
4 is obviously higher than that in HNO
3. The total production rate increased with applied potential, and the yield in HNO
3 consistently exceeded that in H
2SO
4. At 1.4 V
vs. RHE, the production rate of FA rose from 305.75 mmol·m
−2·h
−1 in H
2SO
4 to 436.45 mmol·m
−2·h
−1 in HNO
3, indicating that NO
3− anions promote FA production. Additionally, a high selectivity for FA of 78.1% was achieved in HNO
3. The results highlight the significant influence of anions on the PEC performance.
After deposition of FeOOH cocatalyst, highly selective conversion of glycerol into valuable GLD is obtained over BiVO
4/FeOOH with a thin amorphous layer of FeOOH onto the surface of BiVO
4. The GLD production rate reached 709 mmol·m
−2·h
−1 with a selectivity of 63.3% using a Na
2SO
4 solution under AM1.5G (100 mW·m
−2) light intensity at 1.23 V
vs. RHE [
33].
It is reported that the bismuth (Bi) atom exhibits a heightened electrostatic adsorption capacity for the secondary hydroxyl of glycerol [
27]. Lu et al. [
34] synthesized Bi-rich BiVO
4−x and investigated its PEC GOR performance (
a,b). The results demonstrate that the photocurrent density of Bi-rich BiVO
4−x photoanode in GOR increases from 1.42 to 4.26 mA·cm
−2 at 1.23 V
vs. RHE under AM 1.5 G illumination, accompanied by a selectivity increase of DHA product from 54% to 80.3%, finally achieving a DHA conversion of 361.9 mmol·m
−2·h
−1 (
c). The high selectivity for DHA can be ascribed to the Bi-rich surface, which is favorable for secondary hydroxyl adsorption for glycerol (
d). The high conversion rate is due to the additionally introduced oxygen vacancies (Ov), which enhance the interaction frequency of Bi atoms at the interface, leading to an improvement in surface charge transport efficiency.

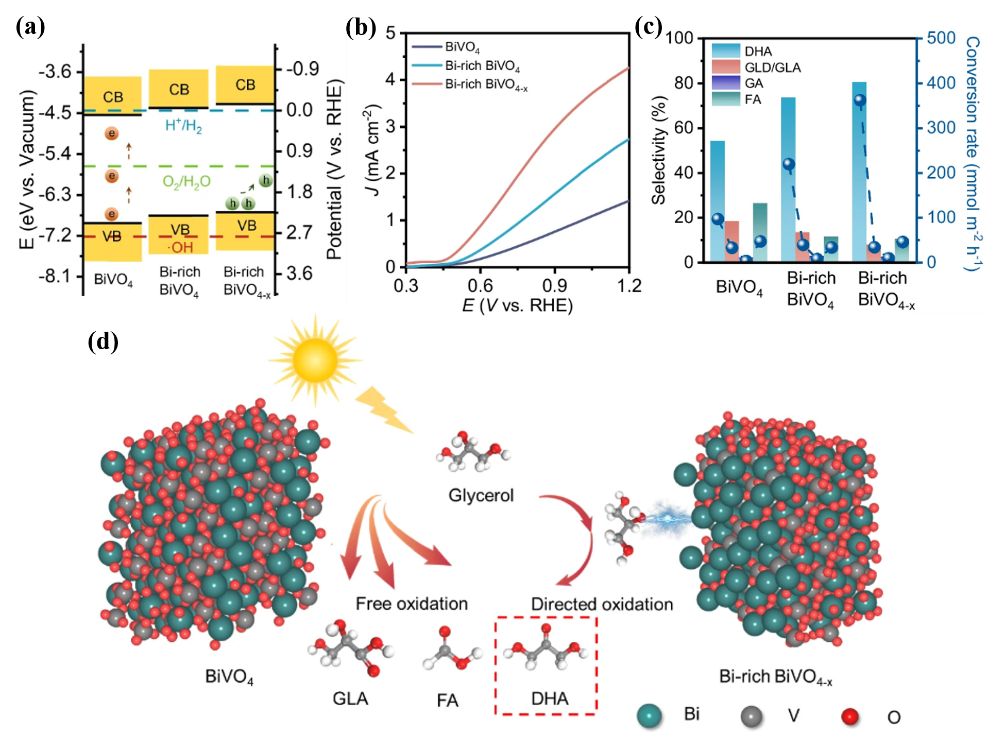

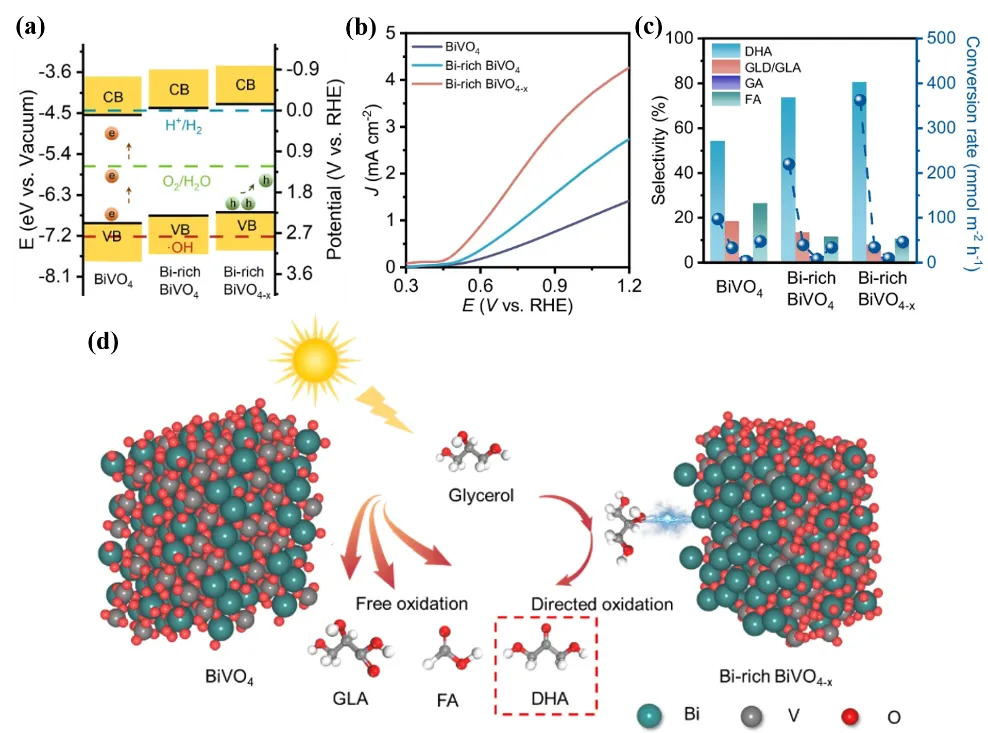

. (<b>a</b>–<b>c</b>) PEC GOR performance and charge behavior. (<b>d</b>) Schematic illustration of the PEC GOR to DHA over Bi-rich BiVO<sub>4−x</sub> photoanode. Reprinted with permission from [
34]. Copyright 2024, Springer Nature.
On the other hand, Han et al. [
28] reported that the BiVO
4 photoanode modified by phenolic ligands (tannic acid, TA) and Ni
2+/Fe
2+ ions (denoted TANF) (
a–i) shows a high production rate of 573 mmol·m
−2·h
−1 toward FA with high selectivity of 85% in a 0.1 M Na
2SO
4/H
2SO
4 electrolyte (pH = 2) (
j–k).

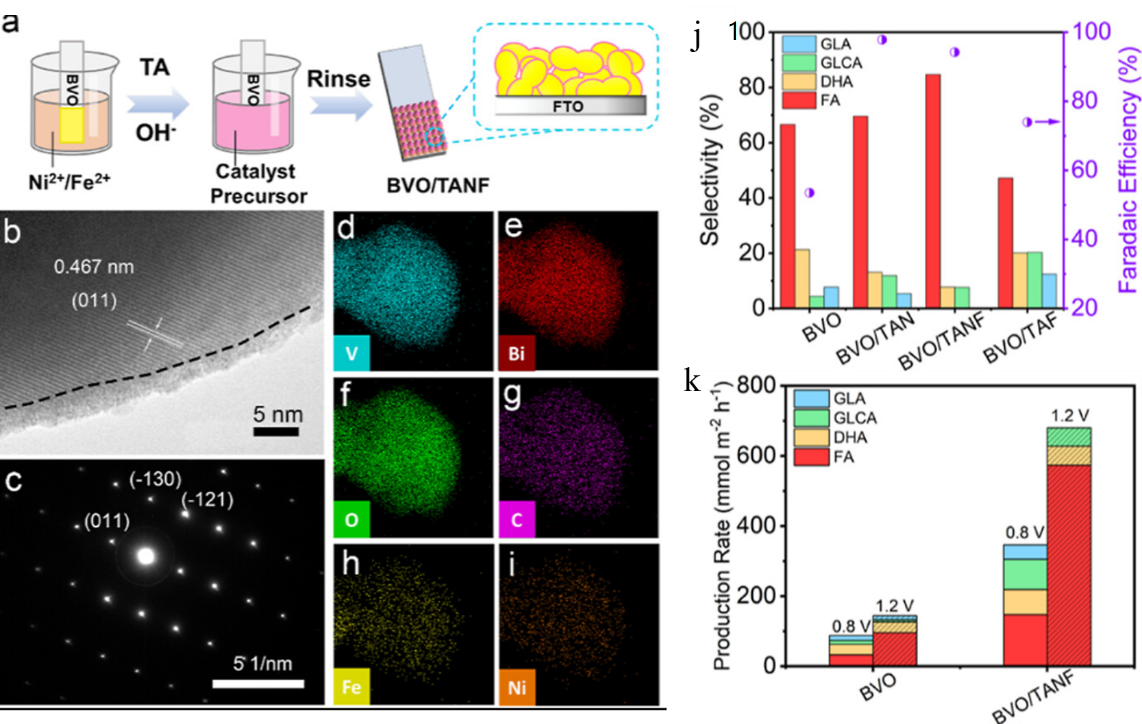

. (<b>a</b>) Schematic illustration of the synthesis of the BVO (porous BiVO<sub>4</sub>)/TANF film. (<b>b</b>–<b>i</b>) Morphology of the BVO/TANF film. (<b>j</b>,<b>k</b>) The PEC GOR performance of BVO/TANF film. (<b>j</b>) Selectivity and faradaic efficiency of GOR products; (<b>k</b>) Production rates of GOR products. Reprinted with permission from [
34]. Copyright 2023, American Chemical Society.
Therefore, we can conclude that the surface structure, the pH, the type of electrolyte, and the electronic structure of the catalyst surface can significantly influence the PEC GOR performance of BiVO
4-based photoanodes.
3.2. TiO2-Based Photoanodes
TiO
2 is also one of the prominent semiconductors frequently explored in PEC energy conversions.
shows the representative TiO
2-based photoanodes for the PEC glycerol oxidation. Similarly, the GOR products based on single TiO
2 photoanodes can be dominated either by FA or by DHA. The specific dominant product also depends on the type of electrolyte solution and its pH value, as well as the electronic structure of the catalyst surface.
.
List of the representative TiO2-based photoanodes for the PEC glycerol oxidation.
Photoanode |
Electrolyte |
Main Product |
Production Rate
(mmol·m−2·h−1) |
Selectivity (%) |
H2 Production Rate
(mmol·m−2·h−1) |
Ref. |
Bi2O3/TiO2 |
0.5 M Na2SO4 (pH = 2) |
DHA |
115 |
75.4 |
140 |
[12] |
WO3 NSs/TiO2 NRs |
0.1 M Na2SO4 |
GLD |
319 |
61 |
33300 |
[23] |
TiO2(N-C)/CPB/TiO2 |
0.1 M Na2SO4 (pH=2) |
DHA |
167 |
52 |
- |
[35] |
TiO2 nanotubes-100 |
0.5 M Na2SO4 (pH = 2) |
FA |
43 |
59.0 |
- |
[8] |
TiO2 nanotubes-50 |
0.5 M Na2SO4 (pH = 2) |
GLD |
56 |
60.70 |
- |
[8] |
Co-LDH(6 h)/TiO2 |
0.1 M Na2SO4 (pH = 7) |
DHA |
- |
48 |
20.35 |
[36] |
Ag@LDH@TiO2 |
0.5 M Na2SO4 (pH=7) |
DHA |
315 |
72 |
- |
[3] |
CdS/TiO2 |
1 M KOH (pH = 13) |
FA |
367.6 |
49.84 |
1574.5 |
[37] |
IrO2/CdS/TiO2 |
1 M KOH (pH = 13) |
FA |
551.4 |
53.22 |
2345.2 |
[37] |
Lu et al. [
8] investigated the microscale fluid effect on the selectivity of the GOR products over TiO
2 nanotube photoanode. They provided an alternative way to regulate the intrinsic selectivity of TiO
2 photoanode by altering the microenvironment (
). It is found that the action of microfluidics can effectively inhibit the overoxidation of glycerol due to the rapid mass transfer, which enables the quick desorption and discharge of multiple carbon products (
a). The TiO
2 nanotubes with a diameter of 50 nm show a great selectivity of 60.9% for GLD (
b,c).

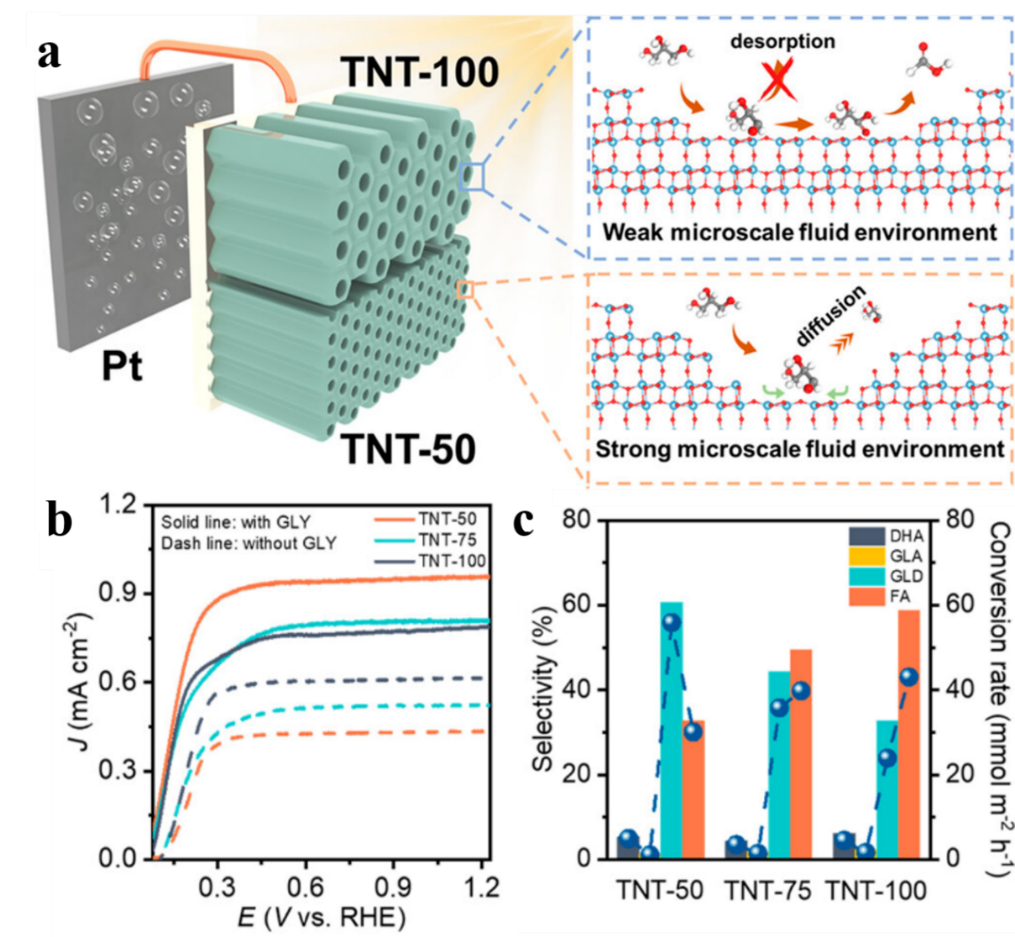

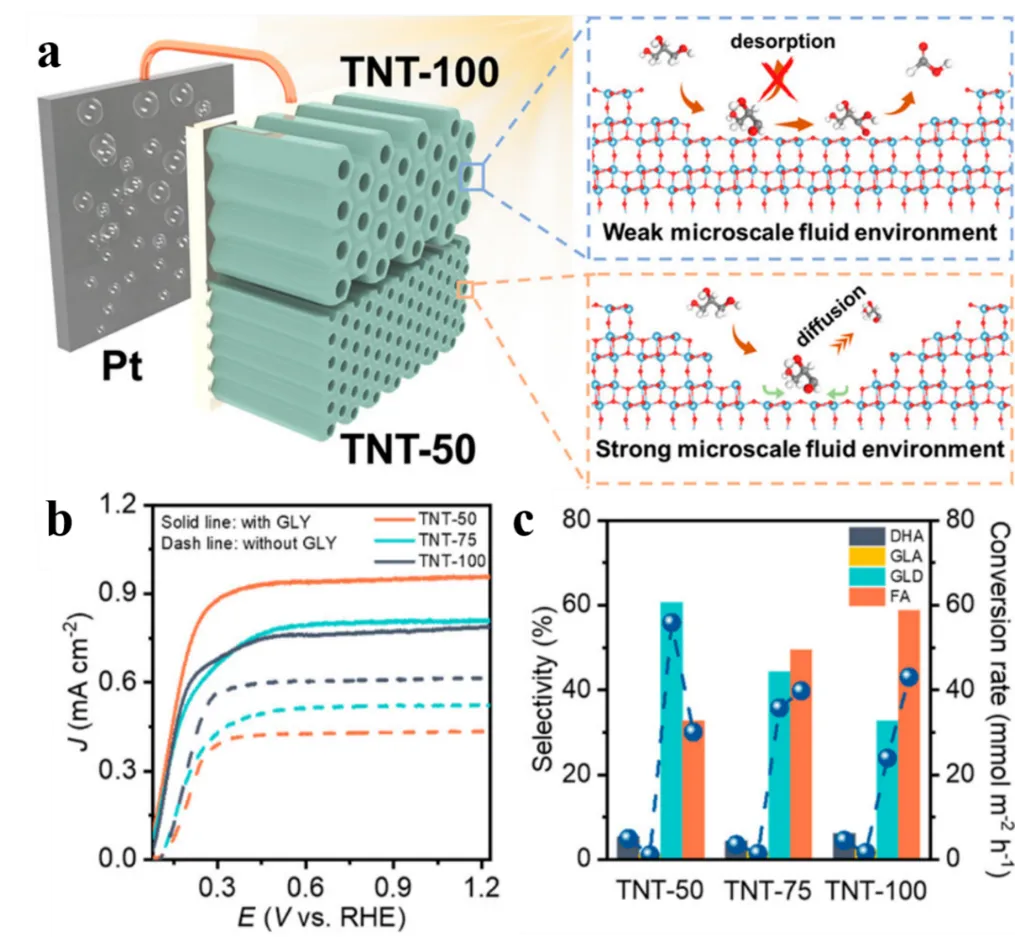

. (<b>a</b>) Schematic diagram of the role of microscale fluid in the PEC GOR. (<b>b</b>) LSV curves of the different photoanodes in 0.5 M Na<sub>2</sub>SO<sub>4</sub> (pH = 2) with and without glycerol. (<b>c</b>) GOR conversion rate and selectivity of the main products. Reprinted with permission from [
8]. Copyright 2024, American Chemical Society.
As demonstrated above, the surface structure plays a crucial role in determining the selectivity of GOR. Therefore, introducing cocatalysts is expected to alter the types of GOR products formed. Duan et al. [
13] designed a heterogeneous photoanode of Bi
2O
3 nanoparticles on TiO
2 nanorod arrays (Bi
2O
3/TiO
2) (
a–c). The selectivity of DHA can be maintained at ∼65% under a relatively high conversion of glycerol (∼50%) (
d–f). In a self-powered PEC system, a DHA productivity of 1.04 mg·cm
−2·h
−1 with >70% selectivity and a H
2 productivity of 0.32 mL·cm
−2·h
−1 were achieved. The authors attribute the enhancement to the existing p−n junction between Bi
2O
3 and TiO
2, which promotes charge transfer and thus guarantees high photocurrent density, and the introduced Bi
2O
3, which prefers to interact with the middle hydroxyl of glycerol, facilitating the high selectivity of DHA.

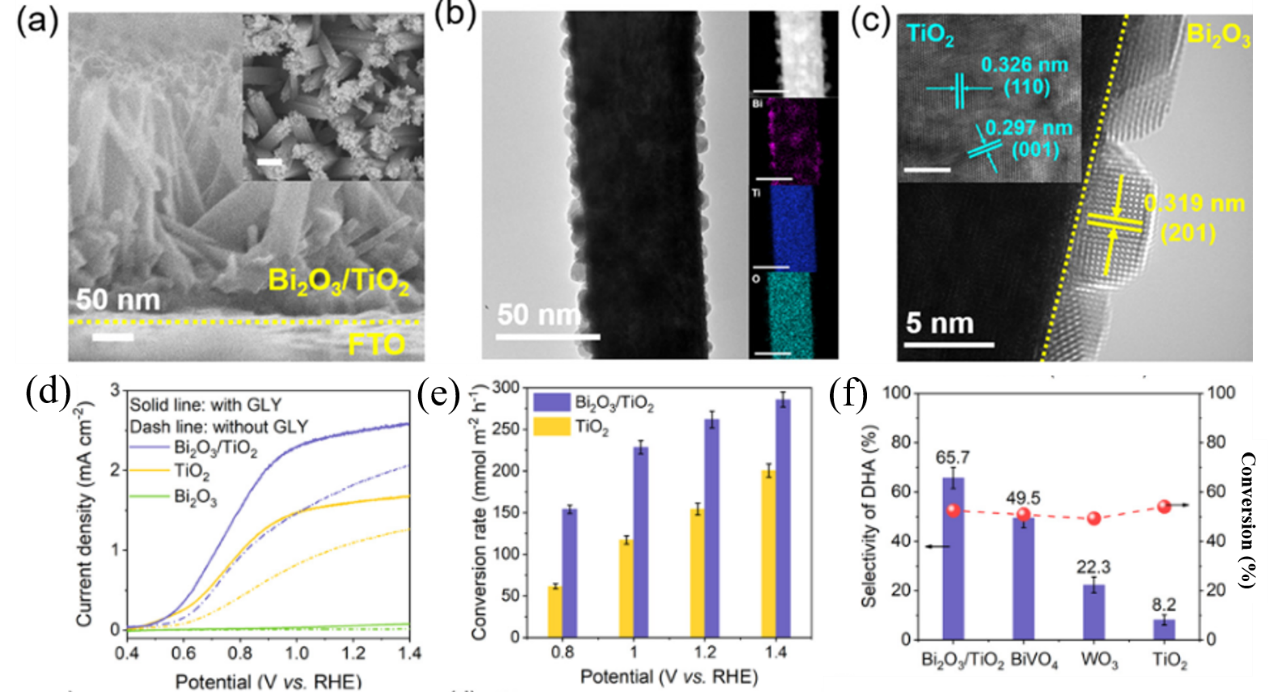

. (<b>a</b>–<b>c</b>) Morphology of Bi<sub>2</sub>O<sub>3</sub>/TiO<sub>2</sub>. (<b>a</b>) SEM images; (<b>b</b>) STEM-EDS mapping results of a single Bi
2O
3/TiO
2 nanorod; (<b>c</b>) HRTEM images of a representative region. (<b>d</b>–<b>f</b>) Performance of the Bi<sub>2</sub>O<sub>3</sub>/TiO<sub>2</sub> photoanode for PEC glycerol oxidation. (<b>d</b>) LSV curves; (<b>e</b>) Conversion rate of glycerol (GLY) at different potentials; (<b>f</b>) Selectivity of DHA over different photoanodes. Reprinted with permission from [
13]. Copyright 2022, American Chemical Society.
Li et al. [
23] investigated the effect of loading of WO
3 nanosheets on TiO
2 nanorod arrays on the PEC glycerol conversion performance. The optimized composite photoanode achieved a selectivity of 61% for GLD and 31% for DHA at 1.23 V
vs. RHE in 0.1 M Na
2SO
4 and 0.05 M glycerol (pH = 7) with formation rates of 319 and 160 mmol·m
-2·h
−1, respectively. The results demonstrate that single TiO
2 tends to over-oxidize glycerol into lower-value products, and the selectivity of WO
3/TiO
2 towards higher-value products (GLD and DHA) is significantly enhanced after loading of WO
3 due to its good adsorption of glycerol and desorption of GLD and DHA. In addition, the selectivity for GLD and DHA remains almost unchanged over a 10 h period, suggesting good stability.
Liu et al. [
3] reported the Ag nanoparticle-supported layered double hydroxide (LDH) nanosheets on TiO
2 (denoted Ag@LDH@TiO
2) for the glycerol selective oxidation to DHA (
a). The Ag@LDH@TiO
2 photoanode exhibited a DHA selectivity of 72% with a production rate of ~310 mmol·m
−2·h
−1 at 1.2 V
vs. RHE, which is obviously higher than that of pure TiO
2 (23.5%, less than 200 mmol·m
−2·h
−1) (
b,c). This is due to the fact that the LDHs and Ag nanoparticles both enhanced the selective adsorption of secondary hydroxyl of glycerol, leading to its selective oxidation to DHA.
. (<b>a</b>) Synthetic process of the Ag@LDH@TiO<sub>2</sub> photoanode. (<b>b</b>,<b>c</b>) GOR performance. (<b>b</b>) Production rates and (<b>c</b>) selectivity of GOR products. Reprinted with permission from [
3]. Copyright 2022, American Chemical Society.
Though the selectivity of TiO₂ can be significantly modified by introducing cocatalysts, its PEC activity still falls short of meeting the requirements for practical applications. CdS is a typical semiconductor with a narrow band gap and high absorption coefficient, which has been widely investigated in PEC water splitting by constructing TiO
2/CdS heterojunction. However, the hole-induced photocorrosion of CdS brings big trouble due to poor stability. Jiang et al. [
37] investigated the TiO
2/CdS heterojunction photoanode in the application of GOR (
a,b). As shown in
c, the photocurrent density of the optimized TiO
2/CdS photoanode is 18.8 mA cm
−2 (1.23 V
vs. RHE), which is about 10.6 times higher than that of the pristine TiO
2. The TiO
2/CdS photoanode shows a high selectivity of 49.84% for FA with a production rate ~1574.5 mmol·m
−2·h
−1. After loading IrO
2 nanoparticles, the selectivity for FA is enhanced to 53.22%, with the production rate reaching 2345.2 mmol·cm
−2·h
−1 due to the improved stability (
d). This is the highest production rate ever reported. The enhanced PEC performance and stability of the TiO
2/CdS/IrO
2 photoanode can be ascribed to the greatly enhanced electrode/electrolyte interfacial carrier injection efficiency caused by the fast glycerol oxidation dynamics and intimate contact.

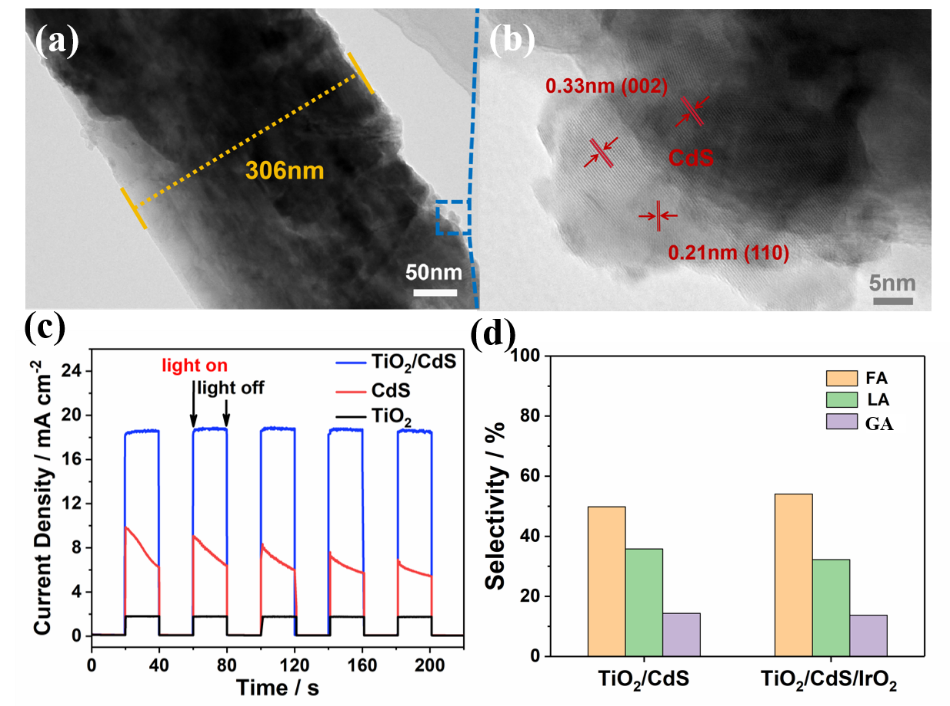

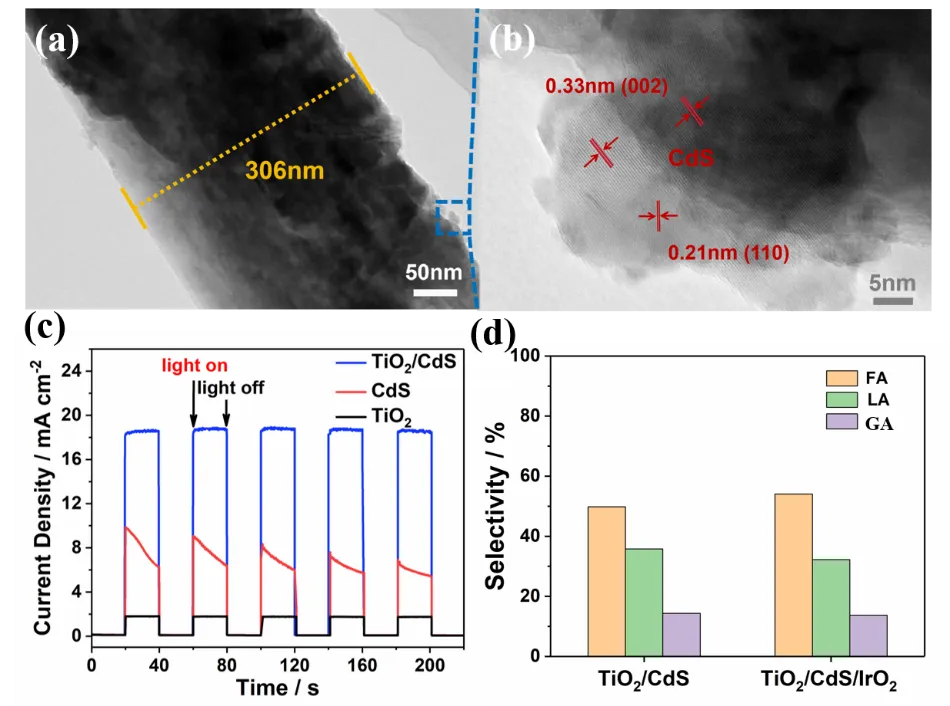

. (<b>a</b>) TEM and (<b>b</b>) HRTEM images of TiO<sub>2</sub>/CdS photoanode. (<b>c</b>) Transient photoresponse at 1.23 V <i>vs.</i> RHE in 1 M KOH containing 0.3 M glycerol. (<b>d</b>) Selectivity of GOR products over TiO<sub>2</sub>/CdS and TiO<sub>2</sub>/CdS/IrO<sub>2</sub> photoanodes . Reproduced from Ref. [
37] with permission from the Royal Society of Chemistry.
3.3. WO3-Based Photoanodes
WO
3 stands out as another prominent semiconductor frequently explored in PEC glycerol oxidation for C3 products.
shows the representative WO
3-based photoanodes for the PEC glycerol oxidation.
.
List of the representative WO3-based photoanodes for the PEC glycerol oxidation.
Photoanode |
Electrolyte |
Main Product |
Production Rate
(mmol·m−2·h−1) |
Selectivity (%) |
H2 Production Rate
(mmol·m−2·h−1) |
Ref. |
(002) WO3 |
0.1 M Na2SO4 (pH = 2) |
GA |
25 |
75 |
- |
[38] |
(202) WO3 |
0.1 M Na2SO4 (pH = 2) |
GLD |
462 |
80 |
- |
[13] |
(200) WO3 |
0.1 M Na2SO4 (pH = 2) |
GLD |
173 |
71 |
- |
[13] |
Bi-MOFs/WO3 |
0.1 M Na2SO4 (pH = 2) |
GLD |
420 |
93.6 |
433 |
[39] |

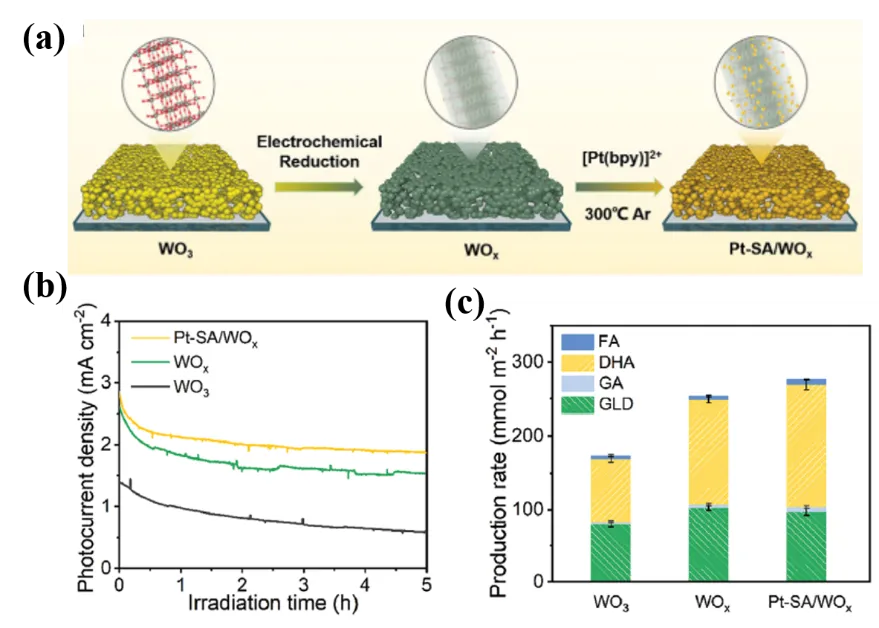

Pt-SA/WOx |
0.5 M Na2SO4 (pH = 2) |
DHA |
297.3 |
60.2 |
203.2 |
[40] |
For example, Yu et al. [
41] reported the PEC behavior of monoclinic WO
3 in oxidizing glycerol to higher-value C3 products, such as DHA and glyceraldehyde. The monoclinic WO
3 showed a high and stable selectivity for glyceraldehyde and DHA, with selectivity between 87 and 95% within a potential range of 0–1.5 V
vs. Ag/AgCl under ambient conditions and near-neutral pH, outperforming those of commercially available WO
3/TiO
2 (DTW5) catalyst. The high selectivity of the WO
3 photoanode, as well as DTW5 for C3 compounds and, specifically, for glyceraldehyde, is likely influenced by the strong acidity of WO
3, which can enhance the desorption of these products from the catalyst surface, as previously reported on glycerol oxidation and dehydrogenation reactions. Besides, the high selectivity towards primary C3 products of WO
3 is also linked to its high activity for the PEC oxygen evolution, which could promote the direct glycerol oxidation mechanism.

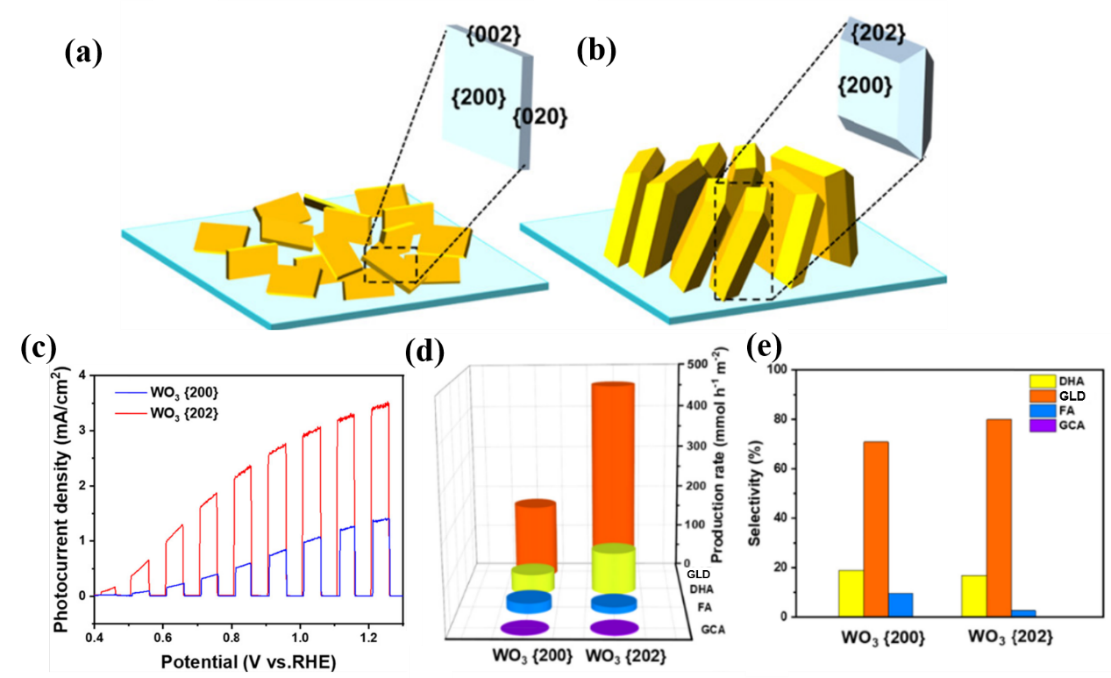

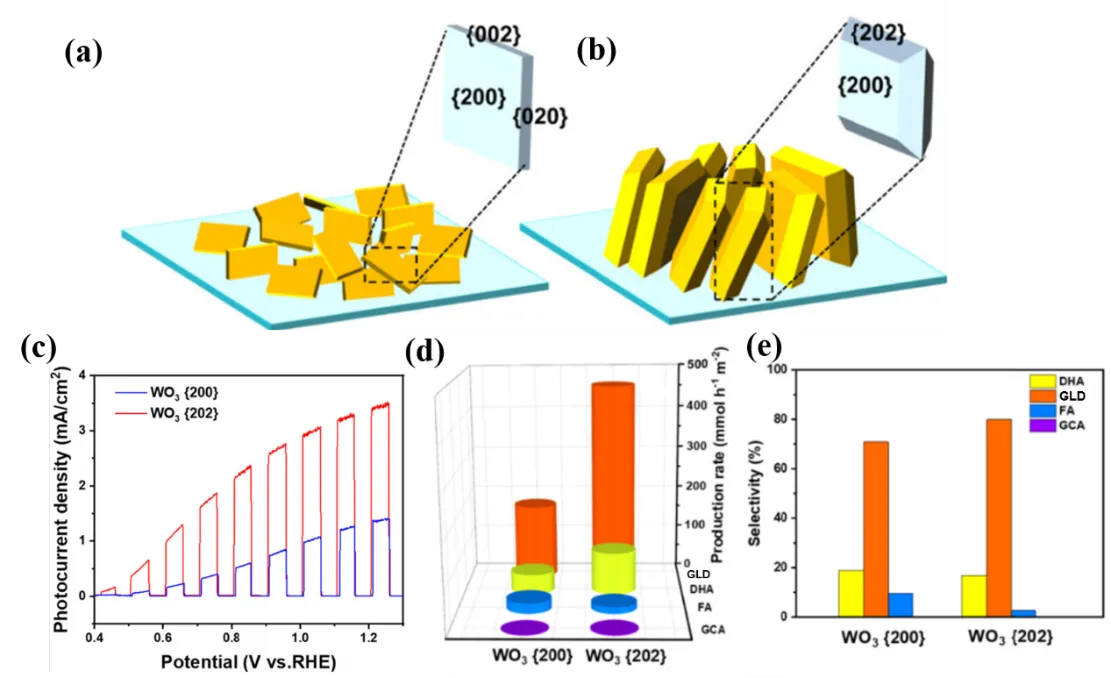

It is reported that the exposed facets determine the surface structure of a photocatalyst and, therefore its physicochemical properties and photocatalytic activities [
42]. Xiao et al. [

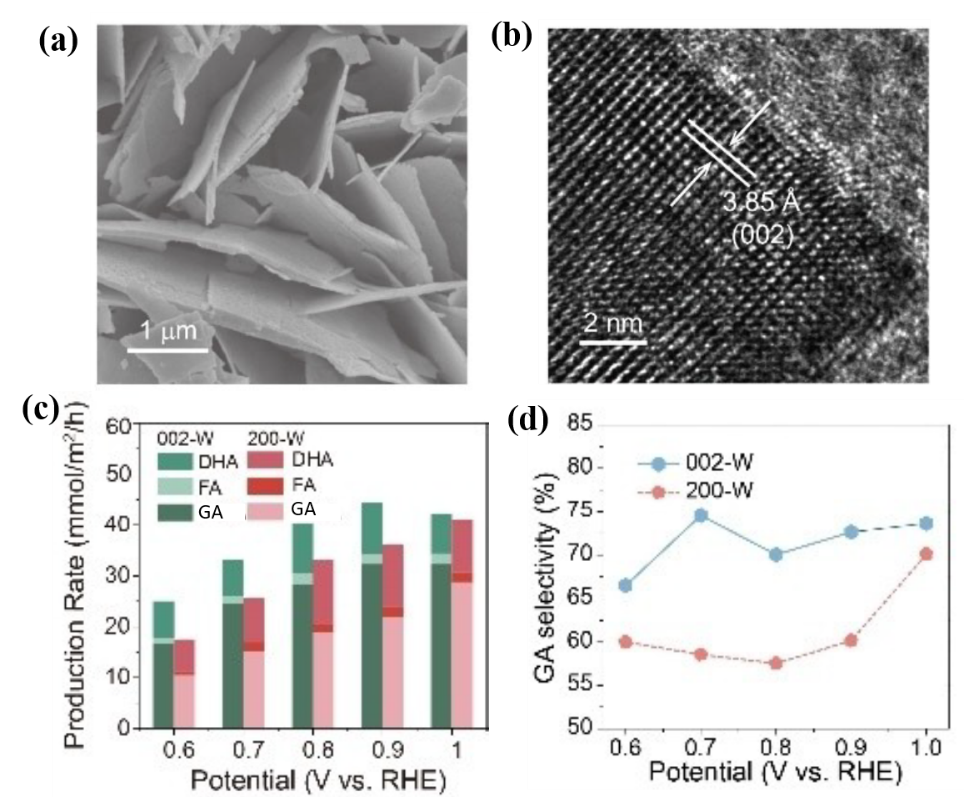

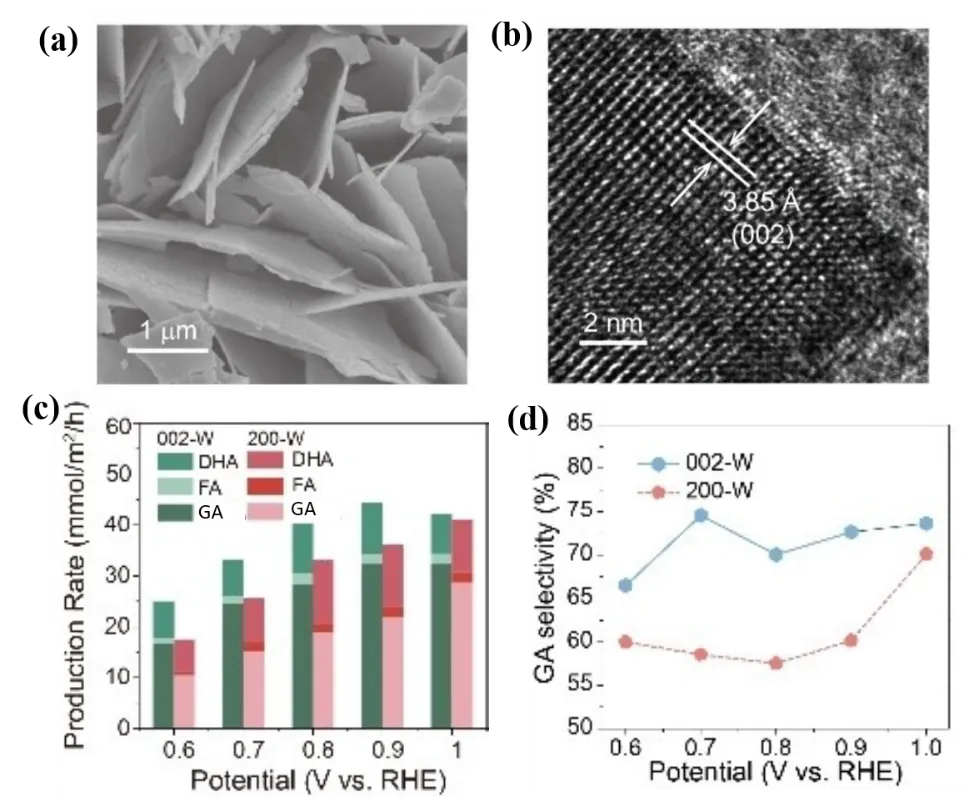

38] reported the selective PEC glycerol oxidation to glyceric acid (GA) on (002) facets exposed WO
3 nanosheets in 0.5 M H
2SO
4 solution (
a,b). As shown in
c,d, GA is the primary product under all applied potentials with the selectivity approaching 75% on WO
3 nanosheet photoanode with preferentially exposed (002) facets (002-W) at 0.7 V
RHE, and 70% on WO
3 nanorod photoanode with preferentially exposed (200) facets (200-W) at 1.0 V
RHE. The 002-W shows higher PEC oxidation activity than the commonly studied 200-W, achieving GA production rate of 32.3 mmol·m
−2·h
−1 at 0.9 V
RHE under AM 1.5G illumination. The total selectivity of C3 products (GA + DHA) reaches as high as 96% over 002-W. It is disclosed that the abundant surface states on (002) facets of WO
3 can dramatically enhance charge separation and increase the carrier lifetime. Moreover, the 002-W exhibits a lower energy barrier for glycerol oxidation to GA as compared to 200-W [
43].
. (<b>a</b>,<b>b</b>) Morphology of (002) WO<sub>3</sub> (002-W). (<b>a</b>) SEM image, (<b>b</b>) HRTEM image. (<b>c</b>,<b>d</b>) PEC glycerol oxidation performance in 0.5 M H<sub>2</sub>SO<sub>4</sub> containing 0.1 M glycerol. (<b>c</b>) PEC production rates of GOR products on 002-W and 200-W in 1 h. (<b>d</b>) Selectivity of GA on 002-W and 200-W in 6 h. Reproduced with permission. [
38] Copyright 2024, Wiley VCH Weinheim.
The comparison between the {202} facets and the commonly studied {200} facets of WO
3 was also investigated (
a,b) [
13]. As shown in
c–e, the WO
3 {202} photoanode displays a high 80% selectivity to glyceraldehyde (GLD) with a production rate of 462 mmol·m
−2·h
−1, about 2.7 times higher than that of WO
3 {200} photoanode (173 mmol·m
−2·h
−1) with a selectivity of 71%. The enhanced PEC performance for GOR can be attributed to the fact that the WO
3 predominated with the {202} facet has a lower band gap, higher carrier concentration, and facilitated interface charge transfer compared with the WO
3 photoanode predominated with the {200} facet. Furthermore, the {202} crystal facet is beneficial to the adsorption and activation of glycerol via the terminal hydroxyl groups as well as the desorption of glyceraldehyde.
. (<b>a</b>) WO<sub>3</sub> {200} and (<b>b</b>) WO<sub>3</sub> {202} photoanode. (<b>c</b>) Chopped photocurrent density–potential curves over, (<b>d</b>) production rate of and (<b>e</b>) selectivity to oxidation products over WO<sub>3</sub> {200} and WO<sub>3</sub> {202} photoanodes at 1.2 V <i>vs.</i> RHE in 0.1 M Na<sub>2</sub>SO<sub>4</sub> with 1 M glycerol (pH = 2). Reprinted with permission from [
13]. Copyright (2022) American Chemical Society.
Feng et al. [
40] investigated the effect of Pt single atom (SA) doping and oxygen vacancies on the PEC glycerol oxidation performance of WO
3 photoanode (
a). The results demonstrate that the coupled Pt-SA/WO
x photoanode has a highest photocurrent density of 2.85 mA·cm
−2 at 1.2 V versus RHE with a DHA selectivity of 60.2%, higher than that of WO
3 (48.6%) and WO
x with rich oxygen vacancies (55.5%) (
b,c). The enhanced PEC activity and DHA selectivity are ascribed to the regulated band structure, built-in electric field, and surface charge density of Pt-SA/WO
x.

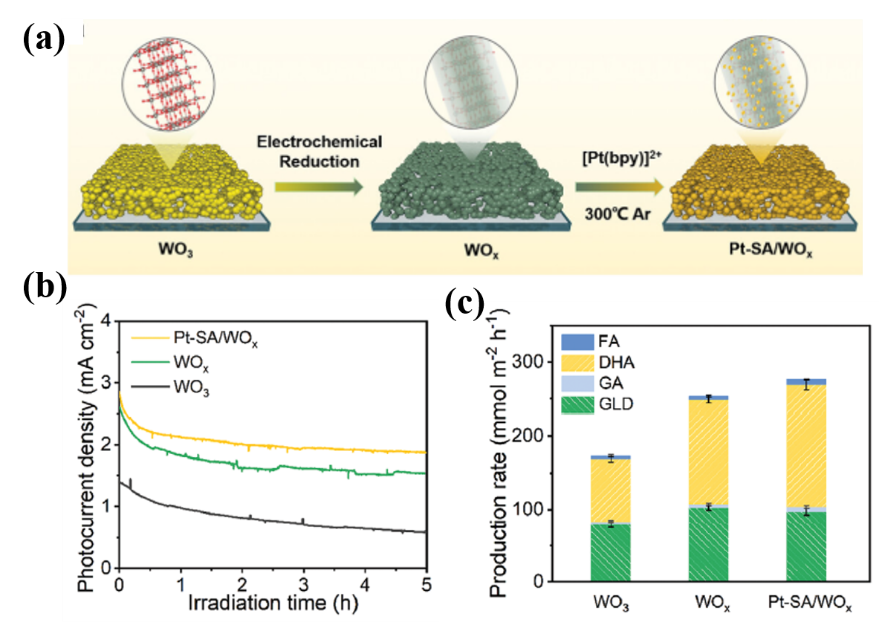

. (<b>a</b>) Fabrication process and structural characterizations of Pt-SA/WO<sub>x</sub>. (<b>b</b>,<b>c</b>) The PEC glycerol performance of the photoanodes in 0.5 M Na
2SO
4 mixed with 0.1 M glycerol with pH = 2. (<b>b</b>) <i>J</i>-<i>t</i> stability tests. (<b>c</b>) PEC production rate of oxidation products. Reproduced with permission. [
40] Copyright 2024, Wiley VCH Weinheim.
As mentioned above, the semiconductor surface chemical structures play a key role in the inherent thermodynamic adsorption of glycerol [
24,
44,
45]. Consequently, even minor changes in the surface structure can significantly affect the adsorption behavior of semiconductors to the electrolyte and, finally, the selectivity of the PEC upgrading anode reaction[
29,
46]. Therefore, facet manipulation and cocatalyst decoration are considered promising approaches for enhancing the selectivity of GOR products in the future [
47,
48,
49].
In summary, glycerol oxidation instead of water oxidation can greatly reduce hydrogen overpotential and accelerate hydrogen production. Meanwhile, glycerol oxidation will produce high value-added chemicals, which will reduce the cost of hydrogen production, making the price of hydrogen competitive with other methods of hydrogen production. Summarized from recent work, we found that BiVO4 and WO3-based photoanodes have great potential applications for generating C3 products, while TiO2-based photoanodes tend to produce C1 products. It should be noted that the surface structure plays a critical role in the PEC GOR performance, including selectivity and production rates. To improve the selectivity of upgrading anode reactions, most recent research on upgrading PEC anode reactions follows these two strategies: (1) modifying the surface chemical structure of anode materials to adjust their thermodynamic properties and carriers concentration such as facet manipulation, doping, and defect engineering, and (2) decorating the anode materials with cocatalysts to adjust the surface properties, charge separation and light absorption. Indeed, to develop high efficient PEC glycerol photoanode with high selectivity towards one of the high value-added products, various strategies should be combined based on the structure–performance relationships.
Not applicable.
Not applicable.
The statement is required for all original articles which informs readers about the accessibility of research data linked to a paper and outlines the terms under which the data can be obtained.
This work was supported by the National Natural Science Foundation of China (NSFC) (Grant No. 51972318).
The author declares that he/she has no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
