Degradation of Metformin Hydrochloride and Glibenclamide by Several Advanced Oxidation Processes

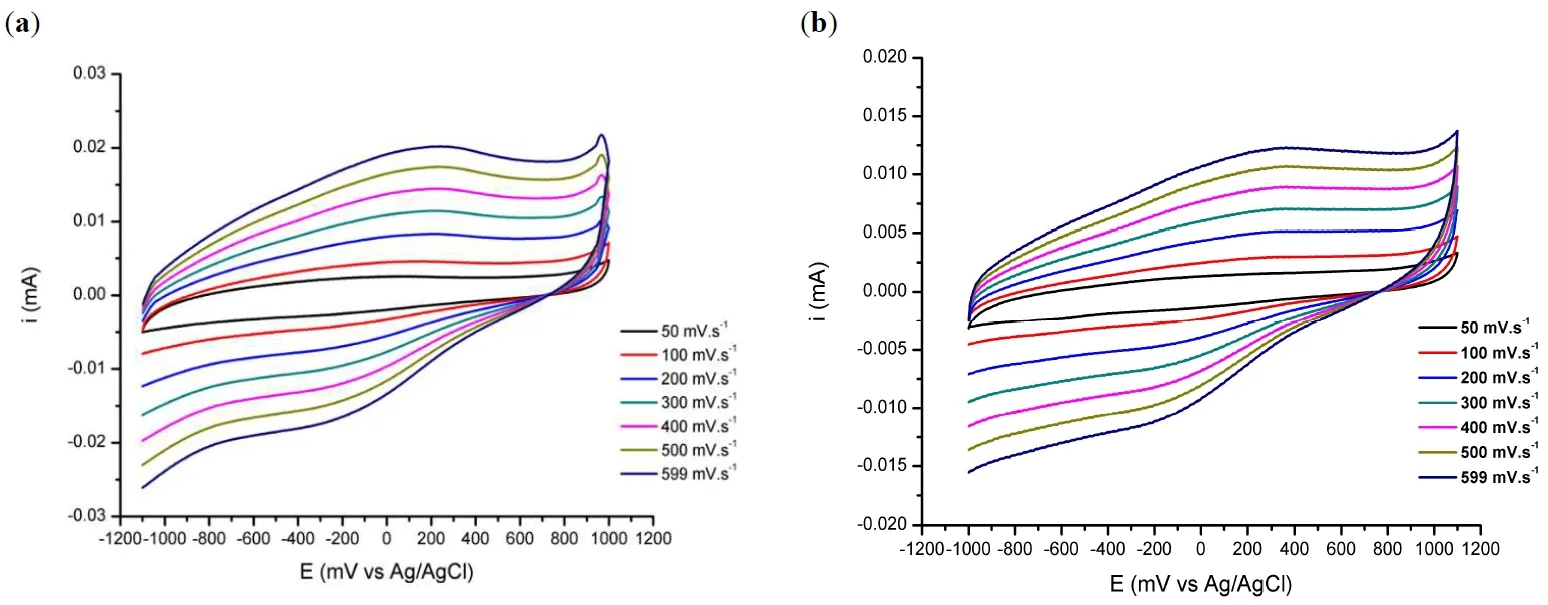

3.1. Electro-Fenton Degradation of MET and GLI 3.1.1. Cyclic and Differential Pulse Voltammetry Previously to the degradation experiments under electro-Fenton conditions, the electrochemical behavior of both chemicals was characterized. Voltammetry scanning at different speeds and different concentrations of drugs were performed. They showed that the drugs have electrochemical activity on the glassy carbon electrode within the water potential window (−1500 to 1500 mV). Figure 1a shows a cyclic voltammogram for MET (30 mg·L⁻¹) at different scan rates. A smooth peak of anodic current at 227 mV is observed. The peak intensity vs. the square of the scan rate plot of the figure data gave reasonable straight line adjustments, indicating that the process was diffusion controlled [15]. Figure 1b shows a cyclic voltammogram for GLI (15 mg·L⁻¹). An oxidation process at 280 mV presenting a current anodic peak of 0.0121 mA for a scanning rate of 0.6 V·s⁻¹ is observed. Again, the peak intensity vs. the square of the scan rate plot provided the typical straight line corresponding to a diffusion controlled process. The voltammograms shapes, and the values of their anodic and cathodic peak potentials show independence from the scan rates and a close to 1 anodic to cathodic current peak relation. Those two facts indicate a quasi-reversible electrochemical behavior of the two systems [15]. The quasi-reversible oxidation seen here indicates that electron transfer processes occur relatively easily. This means that molecules can be initially oxidized at the glassy carbon anode used in the electro-Fenton system, facilitating the generation of reactive intermediates required for further degradation. Thus, the quasi-reversible oxidation behavior of MET and GLI favors their initial degradation in electro-Fenton processes by facilitating electron transfer reactions and the generation of key reactive intermediates. Also, a cyclic voltammogram of a MET (15 mg·L⁻¹) and GLI (15 mg·L⁻¹) mixture showed just single wide anodic and cathodic peaks (the peaks of the two compounds overlap) with a quasi-reversible electrochemical behavior, and only with a small widening of the E_pa to E_pc distance. Again, a linear relationship was found in the corresponding ip vs. ν^1/2 plots, suggesting that both processes are controlled by diffusion of MET and GLI towards the surface of the glassy carbon electrode. Although the voltammetric peaks of the mixture of MET and GLI overlap, techniques such as mathematical signal decomposition (peak resolution) or the use of modified electrodes could help to clearly separate them [15]. Other possibilities for the separation of the overlapping information in the mixture include the combination of HPLC or LC-MS analysis of the reactive and intermediate chemical species with kinetic models. This would ensure accuracy in the determination of the individual degradation rates of MET and GLI. 3.1.2. Effect of the Applied Current Density and Air Flow on the Electrogeneration of Hydrogen Peroxide The assessment of the hydrogen peroxide produced in the electrochemical cell was performed following an experimental design in which two current values and two different air flows were used. The results of such an experimental design are shown in Figure 2. As can be seen, the current intensity had a clear influence on the production of hydrogen peroxide, while the airflow effect was not clear. In accordance with these results, an extra experiment with a much larger current intensity was performed (also shown in Figure 2). A remarkable concentration of 107.8 mg·L⁻¹ of H₂O₂ was obtained by applying 1.0 A of current and 0.944 L·min⁻¹ of air flow after 60 min of treatment. This value was much higher than the rest of the observed H₂O₂ productions and shows that using large enough current intensities, it is possible to generate a stoichiometric excess of H₂O₂ that would allow the complete oxidation of the two drugs. The fact that H₂O₂ production does not significantly depend on air flow implies the use of simpler and less expensive systems for air injection (low-performance pumps, passive ventilation systems, etc.) in large-scale industrial applications. It also involves reduced operational costs (less energy consumption). Nevertheless, it has to be kept in mind that minimum oxygenation is still necessary (too low an airflow could limit the availability of oxygen for H₂O₂ generation), and the mixing conditions have to be adequate to avoid concentration gradients. Increasing H₂O₂ production in the electro-Fenton process has advantages in terms of pollutant degradation but also presents several challenges related to energy efficiency and electrode degradation. Indeed, at high current intensities, the electrochemical process can become less efficient, as a fraction of the energy is dissipated in undesired side reactions. The generation of excessive amounts of H₂O₂ can be counterproductive, since hydrogen peroxide can act as a “trap” for hydroxyl radicals, decreasing the overall efficiency of the process (see reaction 4) [16]: Also, the formation of stable intermediate products triggered by an excess of H₂O₂ can hinder the complete mineralization of contaminants [17]. On the other hand, the excess of H₂O₂ through higher current intensities and higher operative temperatures derived from such large currents can accelerate the corrosion of the glassy carbon electrode or cause the formation of oxides on the surface, reducing its effectiveness and life cycle [18]. Both things would increase operating costs and make advisable the use of real-time monitoring, dynamically adjusting process conditions based on the levels of contaminants and H₂O₂ present, and they can clearly affect the economic viability of large-scale applications. In any case, a further study of the comparison between electrochemical generation of H₂O₂ in the electro-Fenton processes and its possible direct addition as a reagent should be carried out. Total treatment costs and sustainability factors should be considered. It is worth highly that, while the main cost of electrochemical H₂O₂ production comes from the electricity needed, which can vary depending on the current intensity and operation time, the generation occurs in-situ, eliminating the need for an initial purchase, transport, and storage, and also the handling of a hazardous substance (H₂O₂ is corrosive and heat sensitive). In addition, the direct addition may require higher amounts of H₂O₂ due to uncontrolled decomposition in the aqueous medium. Not less important, in-situ generation potentially reduces the carbon footprint by avoiding emissions associated with transportation and industrial production of H₂O₂. 3.1.3. Effect of Current Intensity on the Degradation and Mineralization Efficiency In order to know the effect of the applied current on the electro-Fenton degradation of the two drugs, different experiments were made. After choosing the airflow that gave the maximum hydrogen peroxide production (0.944 L·min⁻¹), several currents, ranging from 0.7 to 2.0 A were tested. Figure 3 and Figure 4 show the time course of MET and GLI concentrations for those experiments up to 1 h of reaction. Concerning MET degradations, the experiment using 1.0 A of current reached a maximum degradation percentage of 45% after 60 min of electro-Fenton treatment. Furthermore, data indicates that the larger the applied current, the better the MET degradation, suggesting that, for the tested currents, no detrimental effects associated with an excess of H₂O₂ generation are observed (it is well known that the presence of large quantities of H₂O₂ can hamper Fenton reactions because the peroxide itself can play the role of HO· scavenger [5]). According to the above results, the experiment using 1.0 A, which gave large enough MET degradation with moderate electricity consumption, was chosen to carry out an electro-Fenton experiment in the presence of UV radiation, i.e., a photoelectro-Fenton treatment. As can be seen in Figure 3 the presence of light slightly increases the reaction rate of the electro-Fenton process, thus allowing an alternative reaction pathway for the removal of MET (60 min of treatment rendered almost 60% of MET degradation), although improvement was lower than the one obtained by simple increasing the applied current from 1 to 2 A. On the other hand, GLI degradation reached a maximum percentage of slightly over 50% after 60 min of electro-Fenton treatment. Also, as in the case of MET, by increasing the applied current, the degradation improves, and no detrimental effects associated with the presence of large quantities of H₂O₂ are observed. As seen in Figure 4 the experiment carried out with an intensity of 1.0 A was chosen again to carry out a photoelectro-Fenton treatment. That experiment shows that the presence of light provides a slight improvement of the reaction rate of the electro-Fenton process (45 min of treatment render more than 60% of GLI degradation). However, as in the case of MET, the improvement was lower than the one obtained by simply increasing the applied current from 1 to 2 A (experiment not shown on Figure 4). In order to evaluate the potential of the electro-Fenton reaction for the complete mineralization of the drugs (not only degradation of the initial compound) TOC analysis was also carried out during the degradation experiments. As an example, Figure 5 contains the results of those analyses during the degradation of GLI. It is observed that photoelectron-Fenton was again the best choice with a percentage of mineralization around 30% after 60 min, while a similar experiment in the absence of light only mineralized 20% of the drug during the same reaction time. The experiment that used 0.7 A rendered an even lower degradation. These rather moderate removals of TOC may be due to the formation of stable degradation products that are not easily converted to CO₂ with the electro-Fenton treatment. Thus, photoelectron-Fenton process turned out to be noticeably more powerful in terms of organic material mineralization than the corresponding electro-Fenton process. The low mineralization observed for both drugs under photoelectro-Fenton conditions clearly points towards the formation of rather stable degradation intermediates. In particular, it is well known that short-chain carboxylic acids are produced during the mineralization of many organic pollutants with a large variety of AOPs [19]. Those small molecules have shown a clear resilience towards reaction with the hydroxyl radical and on many occasions, are responsible for the large quantities of TOC remaining in the solution. In the particular case of MET, the formation of guanidine and other oxidized derivatives that are more persistent in water has been reported [20]. For GLI, resistant oxidation intermediates could include sulfonated or aromatic fragments [21]. In order to avoid this unwanted situation, longer treatment times and optimization of operation parameters (like reagent concentrations, pH, etc.) are required. However, the use of combined AOPs could also be considered. Since diffusion control can become a limiting factor (as it has been seen at least for the initial electro-chemical anodic oxidation of MET and GLI), large-scale reactors based on the photoelectron-Fenton reactive system should take into account the implementation of: (a) effective mixing (stirring or forced air flow) to maximize mass transport of reactants to the electrodes; (b) electrode surface area maximization (large surface area electrodes, or three-dimensional designs such as meshes or foams that can help improve efficiency without requiring a linear increase in equipment size); (c) larger residence time (larger reactor volume and lower reagents flow). In summary, the diffusion-controlled nature of some of the electrochemical reactions involved here presents significant challenges to the scalability of the photoelectro-Fenton treatment. However, these can be addressed by optimized reactor design (larger electrode surface area, effective mixing, and continuous flow) and adjustment of operating conditions (increased air flow, use of advanced catalysts). These changes are critical to maintaining efficiency and viability in large-scale applications. 3.2. UV/H₂O₂, UV/Persulfate and UV/TiO₂ Degradation of MET and GLI Blank experiments were carried out in order to detect the existence of degradation by the action alone of 254 nm UV light (photolysis), H₂O₂, or sodium persulfate (PS). In none of the three cases, MET degradation was observed, indicating the need for a more drastic advanced oxidation process. Figure 6 shows the time course of degradation of MET when solutions of three different concentrations of PS were used in homogenous photocatalytic processes at 254 nm. As can be seen, the advanced oxidation process was effective for the removal of the compound (around 30% degradation with an initial 0.5 mM PS concentration and after 60 min of reaction). However, for larger PS concentrations (up to 1.5 mM) the efficiency decreased, indicating that the excess reagent could scavenge the generated radical species responsible for the direct reaction with the drug. On the other hand, Figure 7 contains data on the degradation of the same drug when the photocatalytic process was carried out with H₂O₂. Again, MET was degraded in those conditions with almost 20% removal after 60 min of reaction and in the presence of 1 mM H₂O₂. In this case, the effect of different concentrations (from 0.5 to 1.5 mM) of the reagent was rather minor, being the final concentrations of the drug very close to each other. In both cases, the overall degradation of the drug was clearly lower than the one observed in the electro-Fenton experiments, where for 60 min of reaction and in the best reaction conditions, removals of 50% or more were obtained. Heterogeneous photocatalytic degradation of MET by using TiO₂ slurries was also tested. As can be seen in Figure 8, the performance obtained with that AOP was rather poor since only 16.6% degradation was obtained after 60 min of 365 nm irradiation in presence of 0.1 g·L⁻¹ of TiO₂. Moreover, an increase in the total amount of suspended TiO₂ gave a clear decreased of the degradation efficiency, probably due to an increased scattering of light produced by the larger concentration of suspended particles [22]. In an attempt to further explore the potential of the two most effective AOPs for MET removal (UV/PS and UV/H₂O₂), synthetic waters that mimic the chemical composition of HWW and SW were prepared and used as dilution media of MET. As can be seen in Figure 9, the capacity of MET removal is seriously affected by the two different chemical matrices present in the as prepared aqueous solutions, for both UV/PS and UV/H₂O₂ processes, although it is clear that the decrease of activity is more notorious for the UV/PS process were MET removal after 60 min of reaction is not even close to 10%. The best result was obtained with a UV/H₂O₂ (0.5 mM) treatment, were 10.3% MET removal was observed. As frequently reported in many other studies of the application of AOPs for the treatment of polluted waters, the change from solutions of the single target compound to real wastewaters, or synthetic solutions that mimic those results in a dramatic decrease in the removal efficiency [23]. In the case of GLI degradation, the blank experiments after 60 min of reaction showed that the drug is photochemically active under 75 W 254 UV irradiation (32.3% removal) and is also degraded by oxidation with 1 mM persulfate in dark conditions (65.2% removal). However, the degradation with 1 mM H₂O₂ in the dark is almost negligible (3.6% removal). Furthermore, and as can be seen in Figure 10, the homogeneous photocatalytic process with 1 mM persulfate solution produced a 99.5% degradation of GLI after only 10 min of reaction, and initial concentrations of 0.5 mM and 1.5 mM gave similar long-term drug removal (91.2 and 97.6% respectively). On the other hand, Figure 11 shows that the system UV/H₂O₂ (1.5 mM) gave a 59.7% drug removal after 10 min and under the same radiation intensity, while the observed degradations were lower when using 0.5 mM and 1.0 mM initial concentrations of H₂O₂ (19.5 and 49.0% respectively). As in the case of MET, the UV/PS system is more effective for GLI removal than the UV/H₂O₂ one. The balance between the excellent UV/PS efficiency of GLI removal seen in Figure 10 and the potential energy costs associated to use of UV light sources can be approached through reagent and reaction time optimization, the use of energy-efficient lamps, advanced reactor design, but above all, with the use of the UV photons coming from the sun, i.e., by using solar light as the main energy source. There are already many examples of large-scale applications of solar-driven AOPs treatments that prove that to be a feasible option [24]. Although the use of the sun as an energy source implies a lower concentration of UV photons and, in principle, slower kinetics compared to the use of UV lamps, this can be compensated both, in terms of overall efficiency and economy, by carrying out an appropriate reactor design, since the initial infrastructure cost for a larger reactor can be clearly offset by savings in electrical consumption and operational costs [25]. On the other hand, Figure 12 shows that the use of heterogeneous photocatalysis with TiO₂ produced similar GLI removals to the UV/H₂O₂ system but not as good as the ones obtained with the UV/PS system. Removals of 68.4%, 76.7% and 81.0% were obtained with 0.1, 0.3 and 0.5 g/L of TiO₂, respectively, after 60 min of 365 nm irradiation. With different optimal degradation times observed for MET and GLI through the different techniques studied here, the need for treatment protocols that allow the simultaneous removal of both drugs from mixed pharmaceutical wastewater is obvious. In this sense setting a long enough operating time that allows for the degradation of the most recalcitrant of both drugs is fundamental. Still, also, the potential use of sequential treatments has to be considered. For example, the application of a first treatment targeting GLI (such as UV/PS, which is highly efficient for this compound) and then a later treatment designed for MET (such as electro-Fenton or UV/H₂O₂) would ensure that both compounds are treated with specific optimal conditions and with little mutual interference. Nevertheless, a fair comparison of the different efficiencies of AOPs for MET and GLI treatment should also consider the potential generation of reaction intermediates with a different chemical nature and toxicity. While sulfate radicals are highly oxidizing but quite selective, preferentially attacking specific bonds in pollutants, thus generating oxidized products that can be persistent or toxic depending on the chemical structure of the initial compound (e.g., aromatic or sulfonated fragments of GLI), hydroxyl radicals are highly reactive but less selective, indiscriminately attacking many different bonds in pollutants. This means that they can lead to the formation of more fragmented and less persistent intermediates, although it is well known that during oxidation of organic molecules, they can produce stable short chain carboxylic acids. Also, in the case of the electro-Fenton system, direct anodic oxidation of the organic material in a solution cannot be ruled out, thus leaving open other reaction pathways for the pollutants’ oxidation. Considering the best experimental conditions for the drug removal in two of the tested reaction environments (UV/PS and UV/H₂O₂), the effect of changing the water matrix was also studied. As in the case of MET, synthetic waters that mimic the chemical composition of hospital wastewater (HWW) and seawater (SW) were prepared and used as dilution media of GLI. Contrary to the observed behavior of MET, remarkable values of GLI degradation were obtained for the two types of matrices and with both reactive systems (see Figure 13). Indeed, for the synthetic hospital wastewater, 91.3% removal of the drug was observed with the UV/PS system, while a 90.4% removal was produced with the UV/H₂O₂ system, both after 15 min of irradiation. For the same reaction time within the synthetic seawater, 73.7% and 65.2% removals were achieved with the UV/PS and the UV/H₂O₂, respectively. These results clearly show the non-existence of general rules related to the treatment of real wastewaters with AOPs, and point toward the convenience of making preliminary tests before assuming any treatment potential [26]. This last result shows that depending on the type of pharmaceutical, the chemical matrix existing in real wastewater is not necessarily detrimental for the efficiency of the tested AOPs, a promising fact that leaves open the possibility of a real application. The need to develop strategies for a comprehensive treatment of wastewater containing multiple pharmaceutical compounds, such as MET and GLI, is obvious. This requires considering the differences in the efficiency of Advanced Oxidation Processes (AOPs) for each present compound and the potential interactions between them [27,28]. Key steps to design such a strategy are: (a) wastewater matrix characterization (pH, alkalinity, presence of other contaminants or salts that may affect the efficiency of the AOPs, etc.); (b) pollutant analysis and identification; and (c) assessment of their chemical properties (knowledge of the reactivity of each compound towards •OH and SO₄^•− radicals, or other oxidants generated in the AOPs). Based on this previous recollection of data, a selection and combination of AOPs can be proposed, following the general strategy of applying first a soft and low cost AOP to remove easily degradable compounds, and then followed by a more robust AOP to treat more resistant compounds. In any case, maintaining the efficiency of radical-based AOPs in real wastewater samples, where matrix components can act as radical scavengers, requires specific procedures to minimize those undesired effects and optimize treatment conditions. Several possibilities should be considered, like the previous removal of suspended solids that can scatter light and make the photoassisted processes less efficient. Or the previous desalinization of the water (especially of wastewaters produced in industrial processes carried out using seawater) since anions like chlorine can efficiently compete for the generated radicals. Generally, as pointed out above, the sequential application of AOPs to first address radical scavengers and then target contaminants can be an effective strategy [29]. Another potential procedure involves the coupling with biological treatments that can reduce biodegradable dissolved organic material, thus leaving less organic concentrated water that can then beproperly targeted with the AOPs. Finally, evaluating the effectiveness of the proposed treatments in the absence of regulations on the maximum permissible concentration of drugs such as MET and GLI in wastewater treatment plant (WWTP) effluents will require a much more comprehensive approach based on scientific and environmental criteria. Key strategies would be: (a) the search for scientific literature (consulting of studies that identify drug concentrations with adverse effects on aquatic organisms or human health); (b) the use as a reference of the water quality standards from international organizations (such as WHO or EPA) for similar contaminants; (c) some other considerations like, for example, the assumption that concentrations below the nanogram or microgram per liter range are generally considered safe for many drugs.
